Installation Procedure

  1. Install the steering wheel to the column aligning the matchmarks.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the steering wheel retaining nut (2).

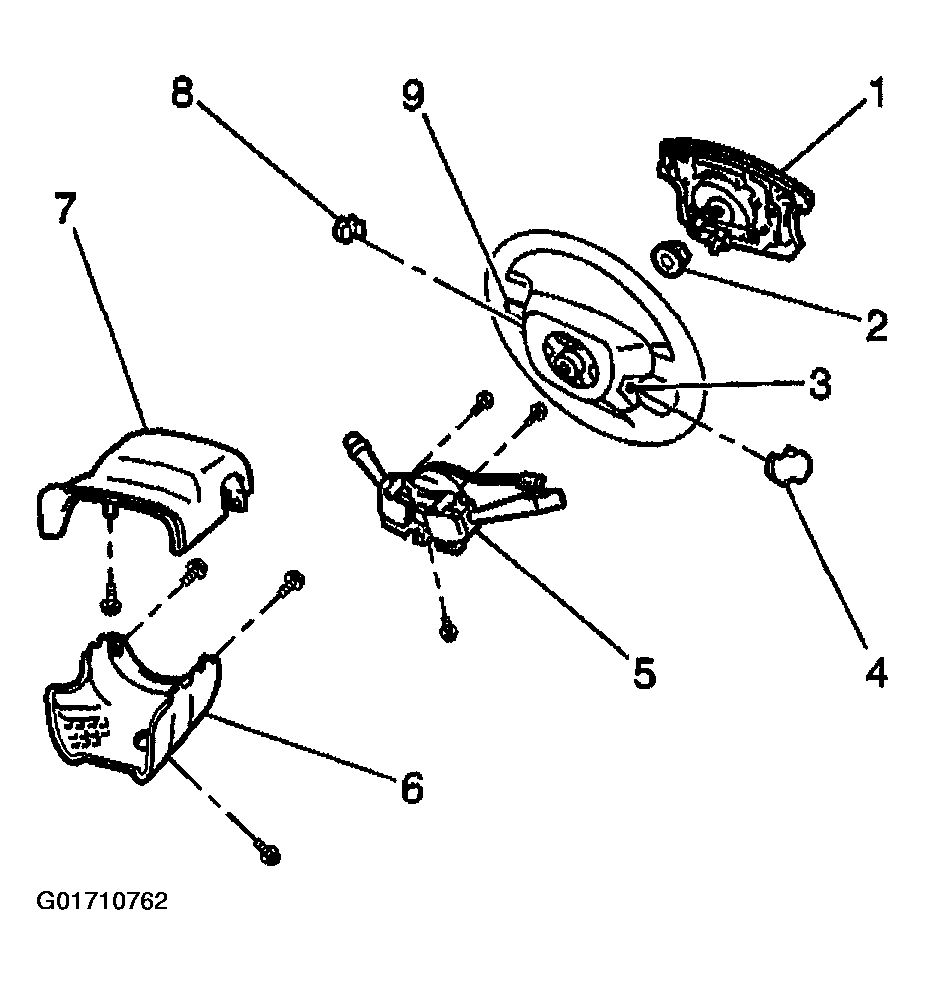

    Fig 1: Installing Steering Wheel Retaining Nut
    G01710762Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the nut to 34 N.m (25 lb ft).

  3. Install the horn electrical connector.
  4. If the vehicle is equipped with cruise control, install the cruise control electrical connector.
  5. Install the inflatable restraint steering wheel module (1). Refer to AIR BAG MODULES .
  6. Ensure the steering wheel is centered.
  7. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
