Lock System Does Not Lock

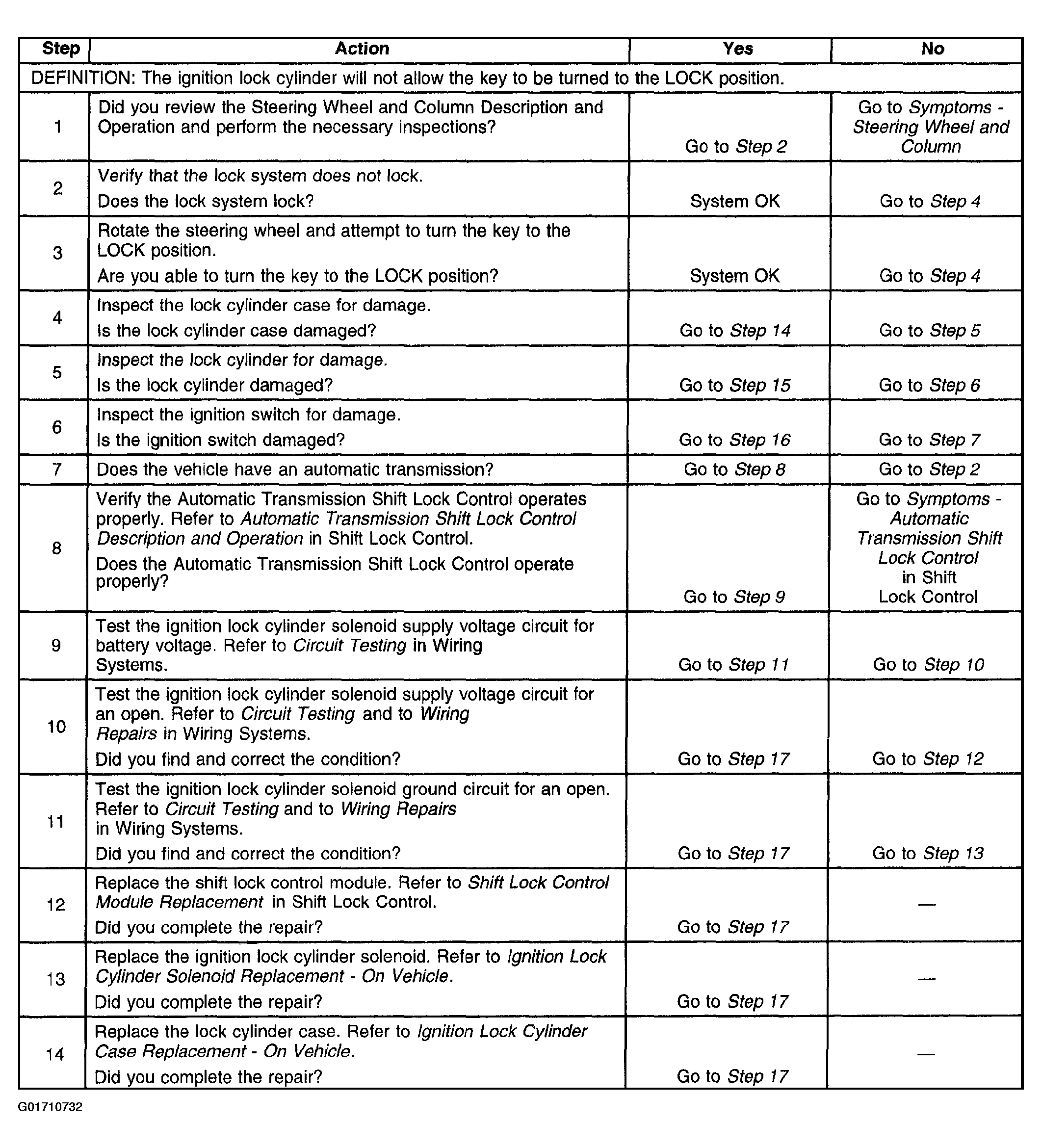

Fig 1: Lock System Does Not Lock (1 Of 2)

G01710732

Courtesy of GENERAL MOTORS CORP.

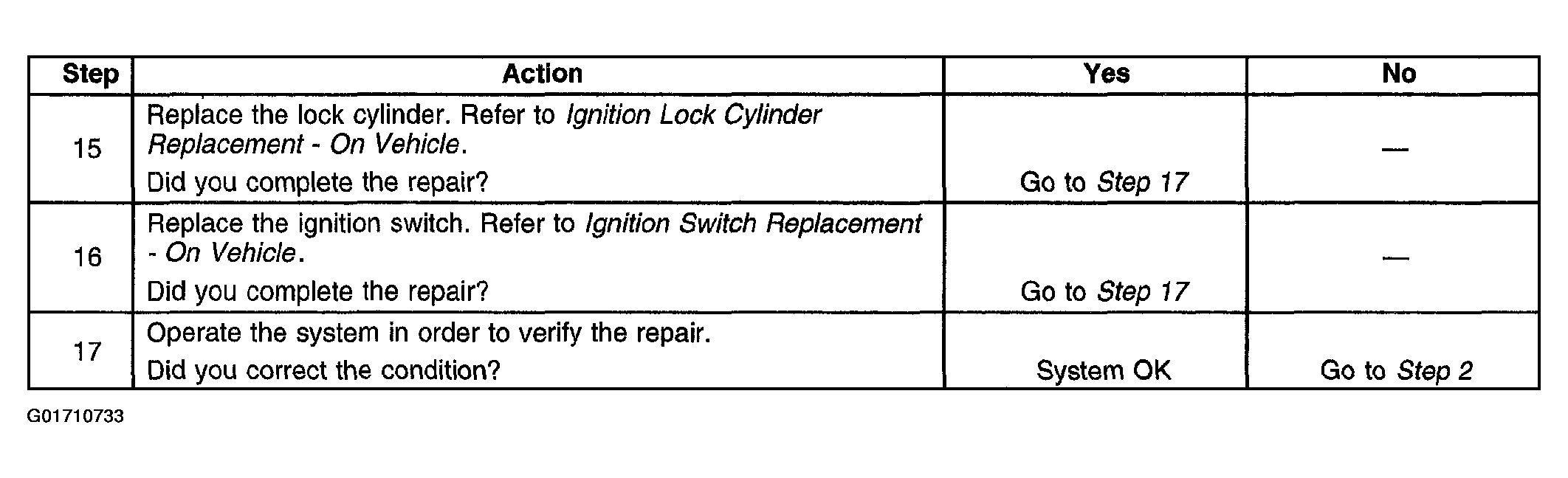

Fig 2: Lock System Does Not Lock (2 Of 2)

G01710733

Courtesy of GENERAL MOTORS CORP.
