Seat Belt Connector End Views

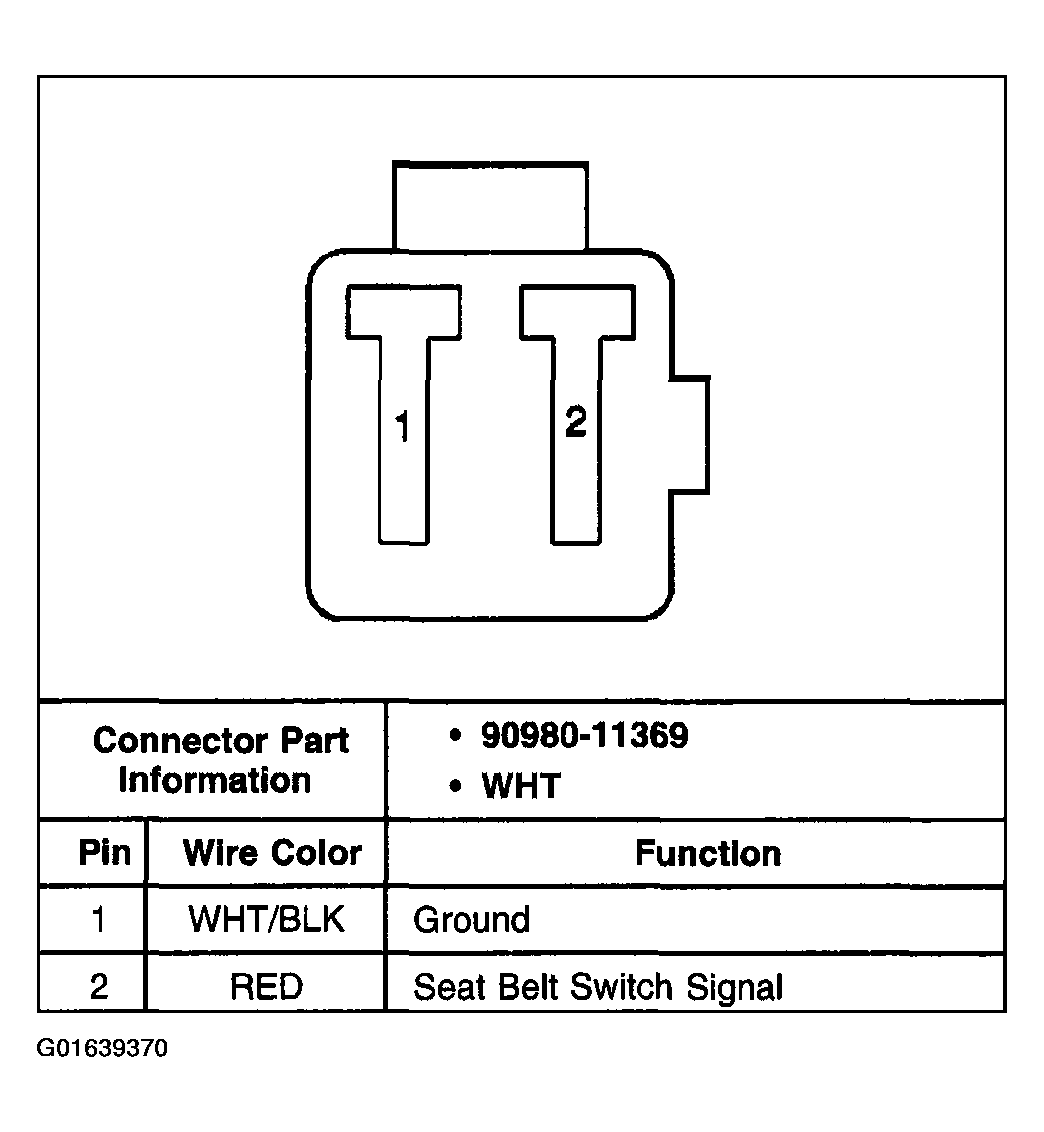

Fig 1: Seat Belt Switch Connector End View
G01639370Courtesy of GENERAL MOTORS CORP.

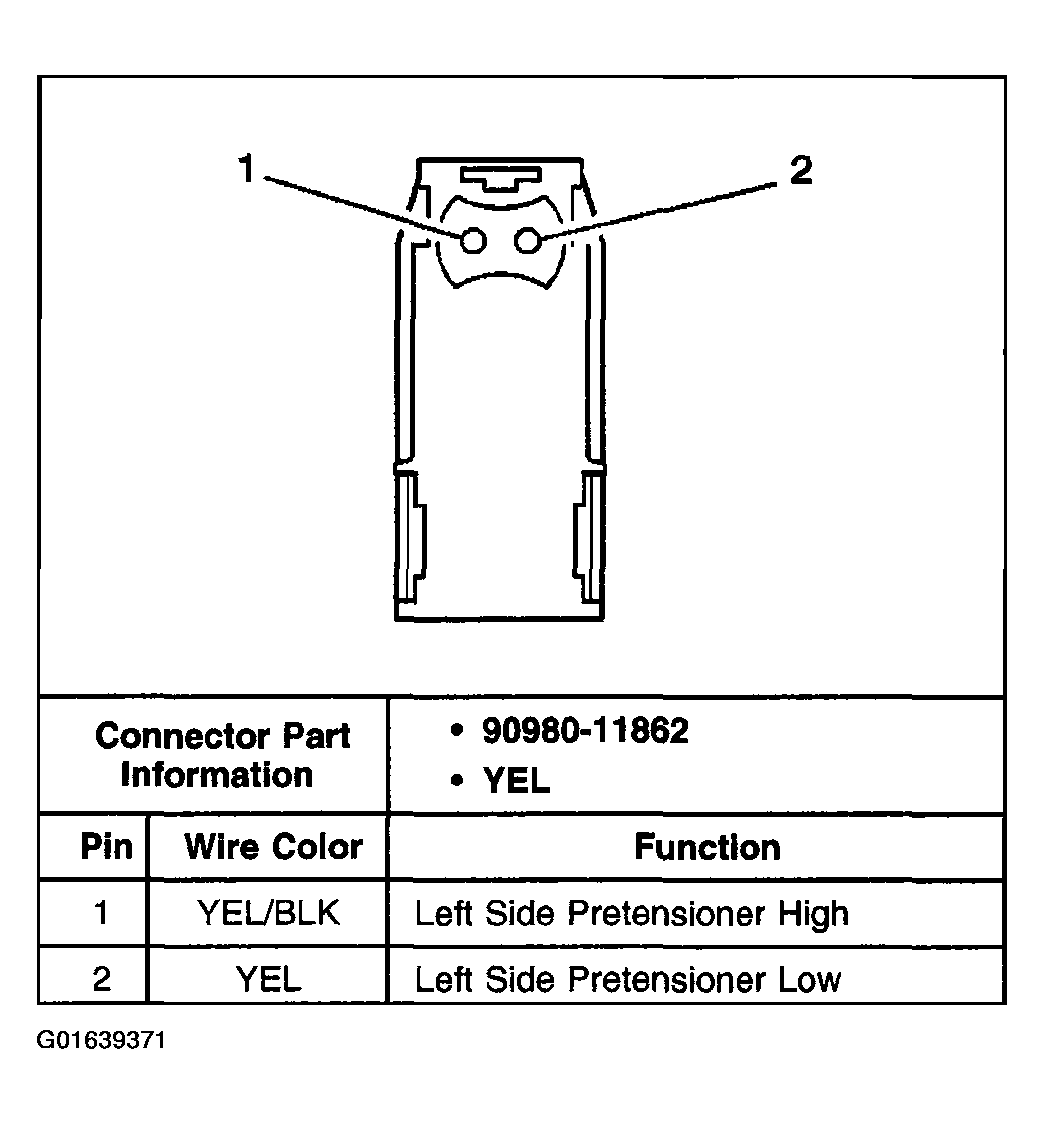

Fig 2: Left Seat Belt Pretensioner Connector End View
G01639371Courtesy of GENERAL MOTORS CORP.

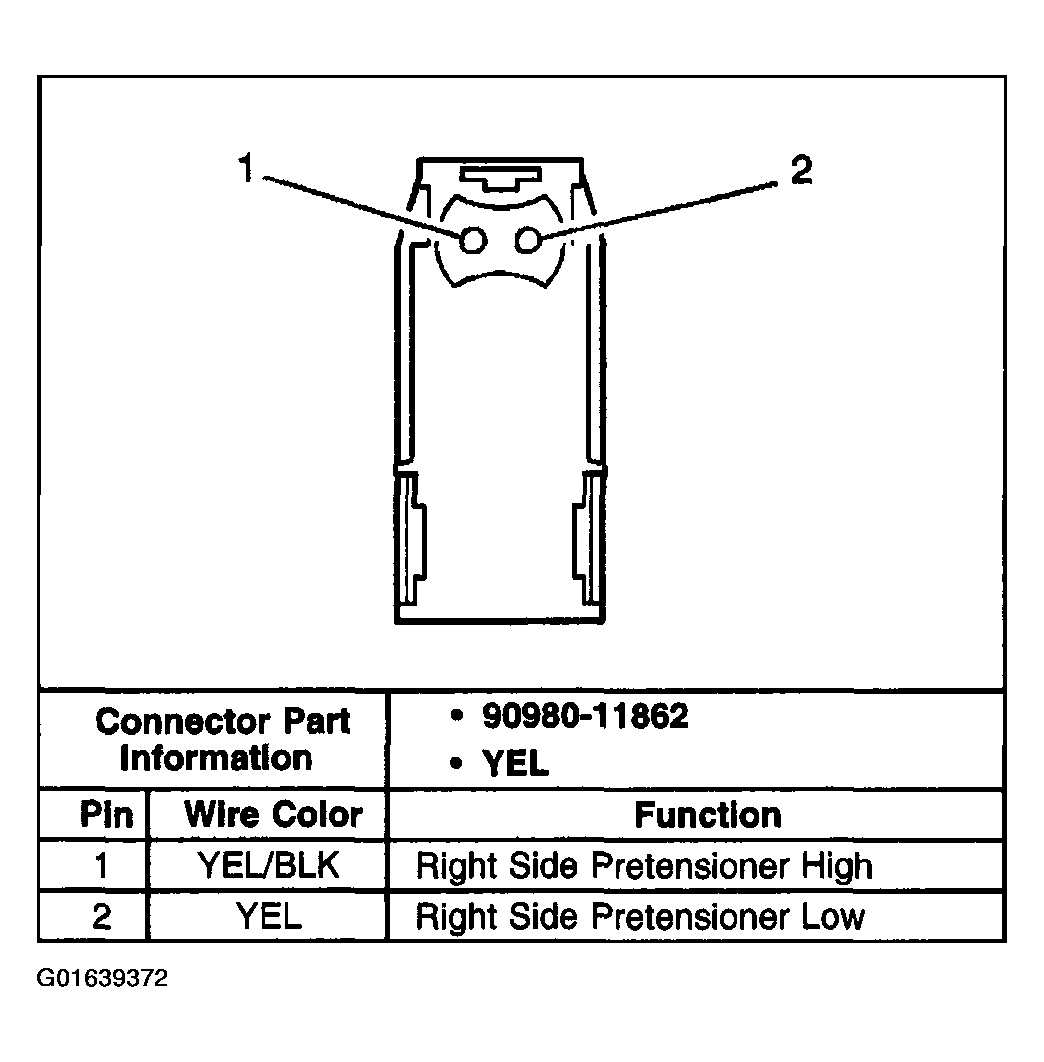

Fig 3: Right Seat Belt Pretensioner Connector End View
G01639372Courtesy of GENERAL MOTORS CORP.
