Keyless Entry System Inoperative (RKE with RCDLR Module)

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

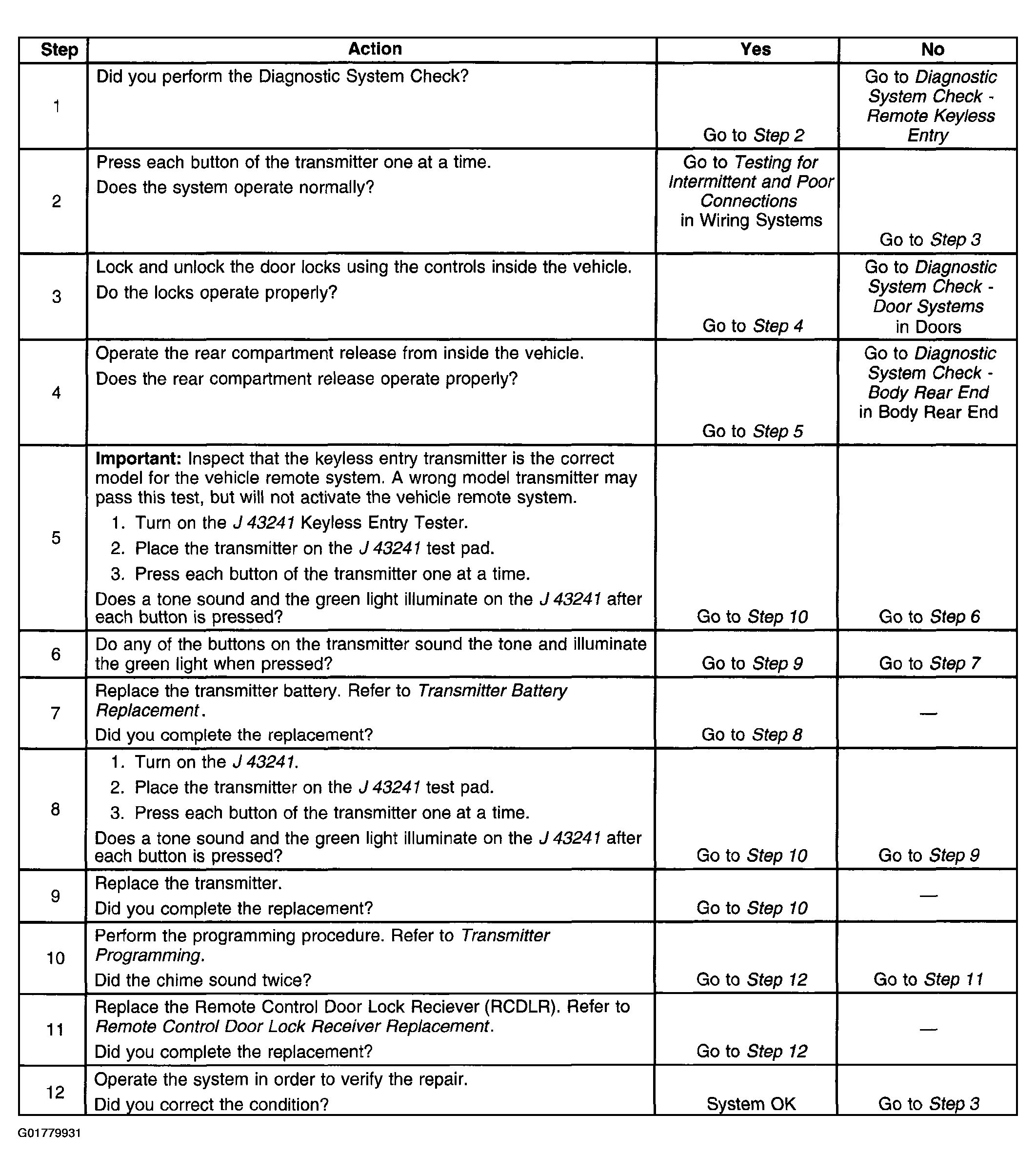

Fig 1: Identifying Keyless Entry System Inoperative (RKE with RCDLR Module)
G01779931Courtesy of GENERAL MOTORS CORP.
