Cooling System Connector End Views

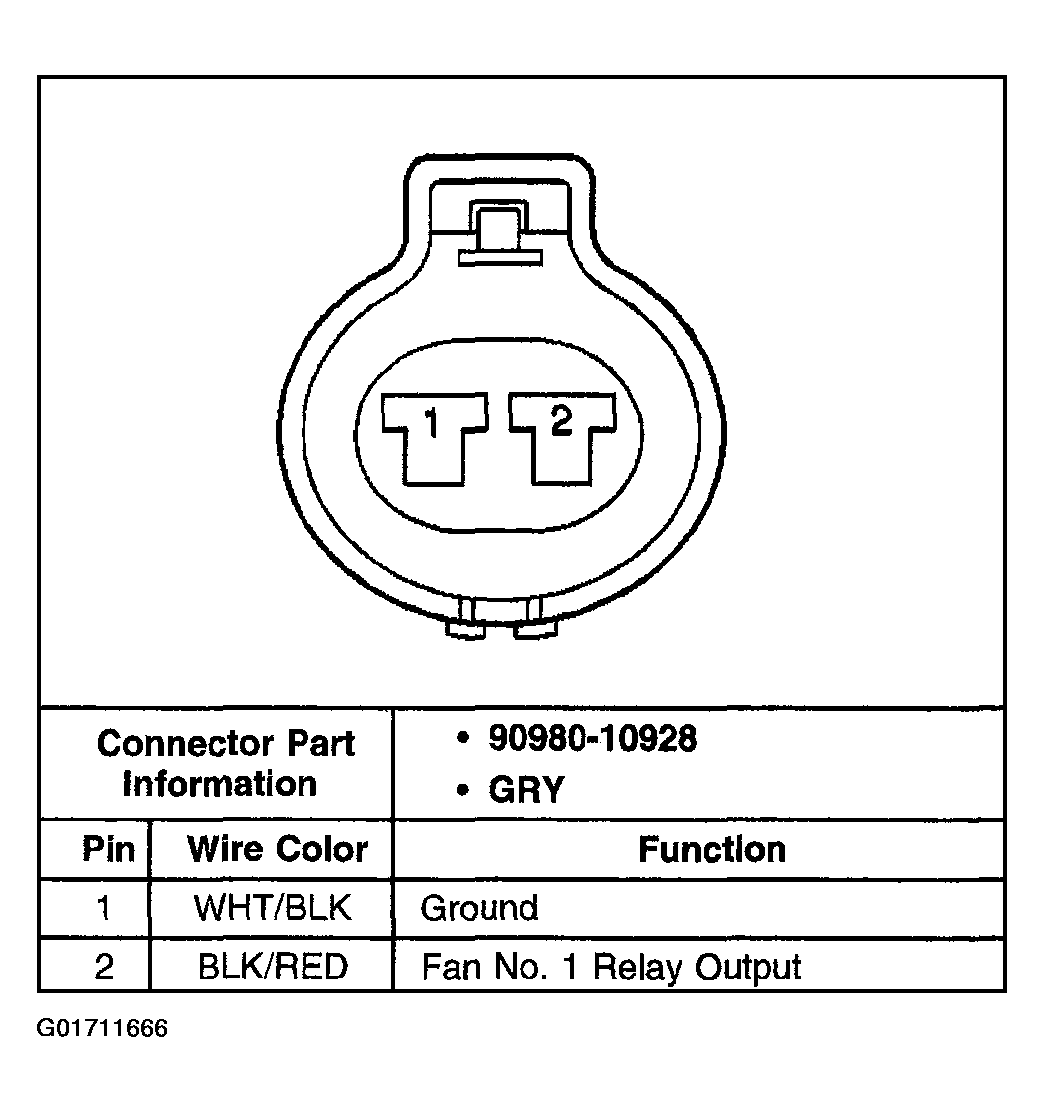

Fig 1: Main Fan Motor
G01711666Courtesy of GENERAL MOTORS CORP.

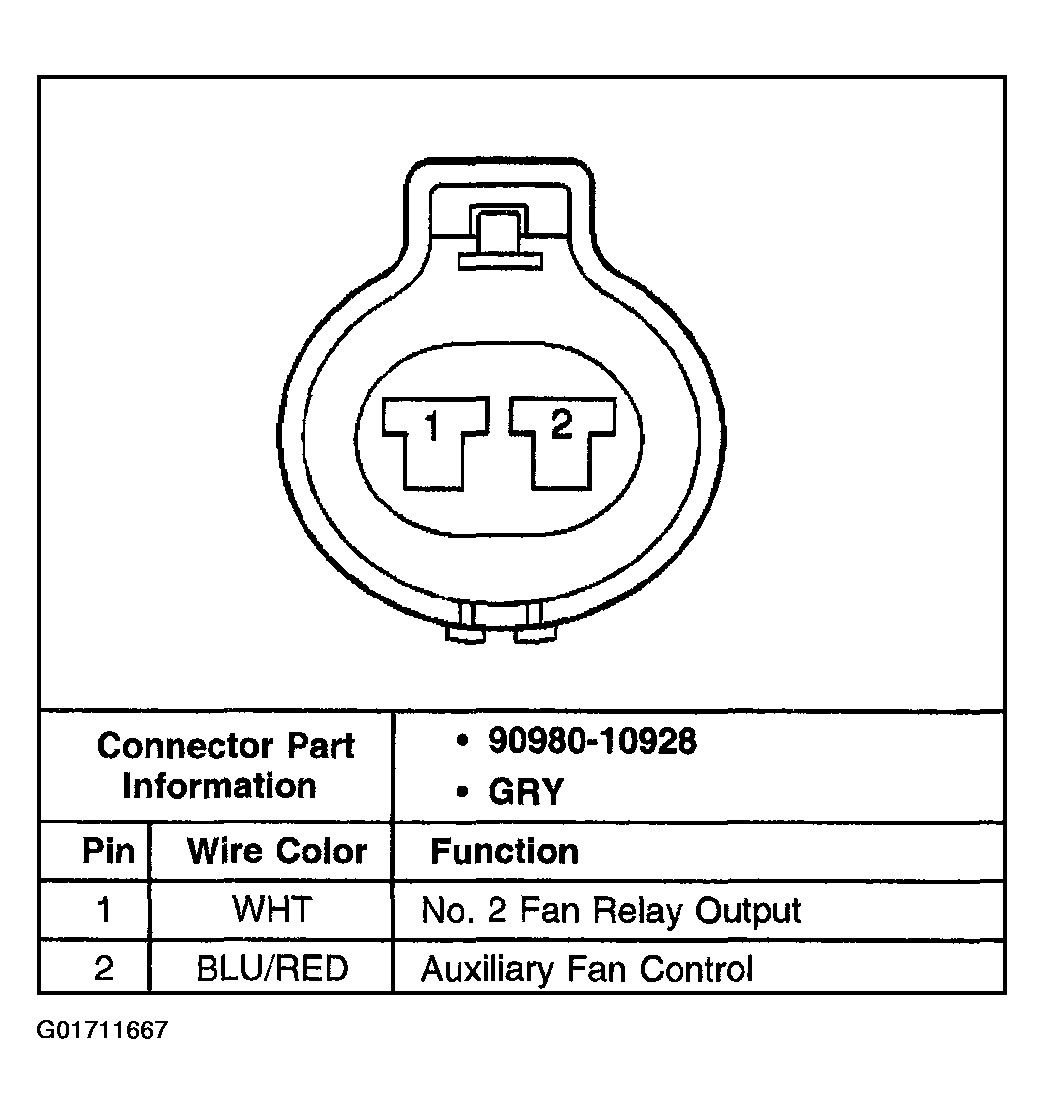

Fig 2: Auxiliary Fan Motor
G01711667Courtesy of GENERAL MOTORS CORP.

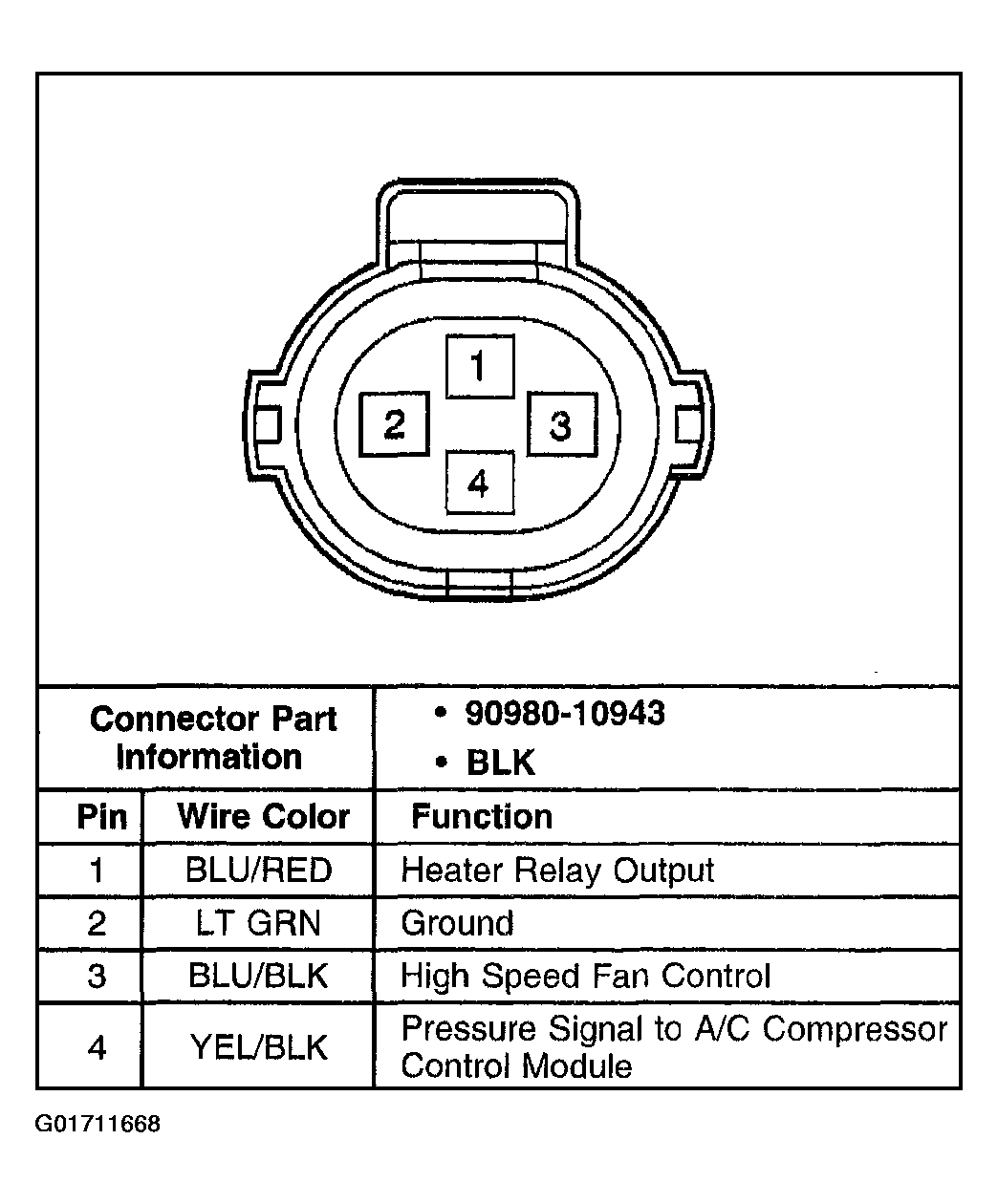

Fig 3: Refrigerant Pressure Switch
G01711668Courtesy of GENERAL MOTORS CORP.
