Installation Procedure

  1. Install the engine tachometer (1) to the instrument cluster case.

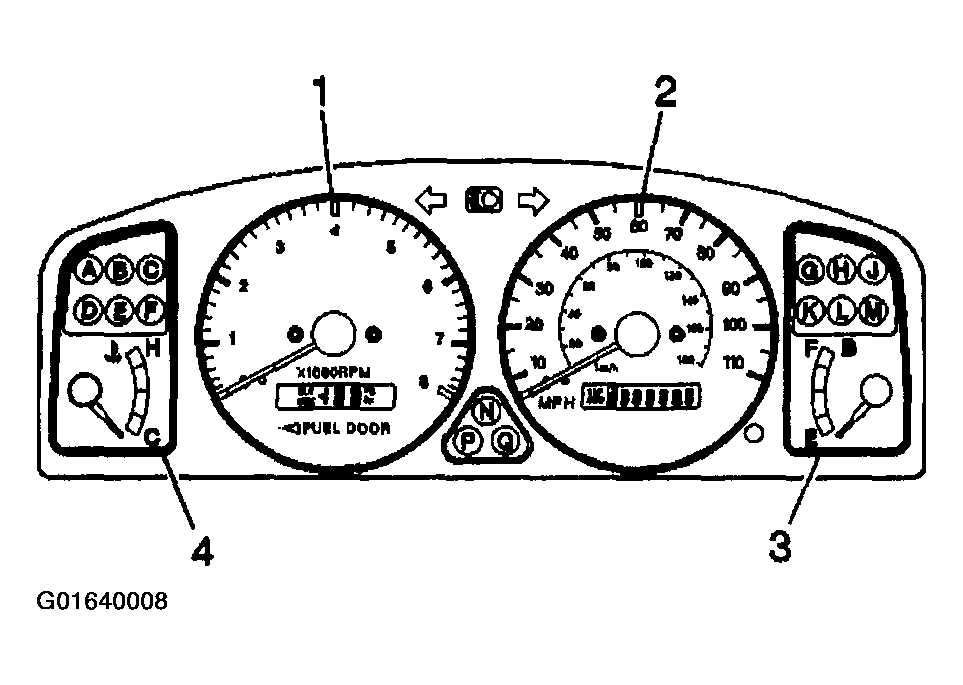

    Fig 1: Installing Engine Tachometer To Instrument Cluster Case
    G01640008Courtesy of GENERAL MOTORS CORP.
  2. Secure the tachometer with the 6 screws (3).
  3. Install the instrument cluster retainer. Refer to BEZEL REPLACEMENT - IP Cluster .

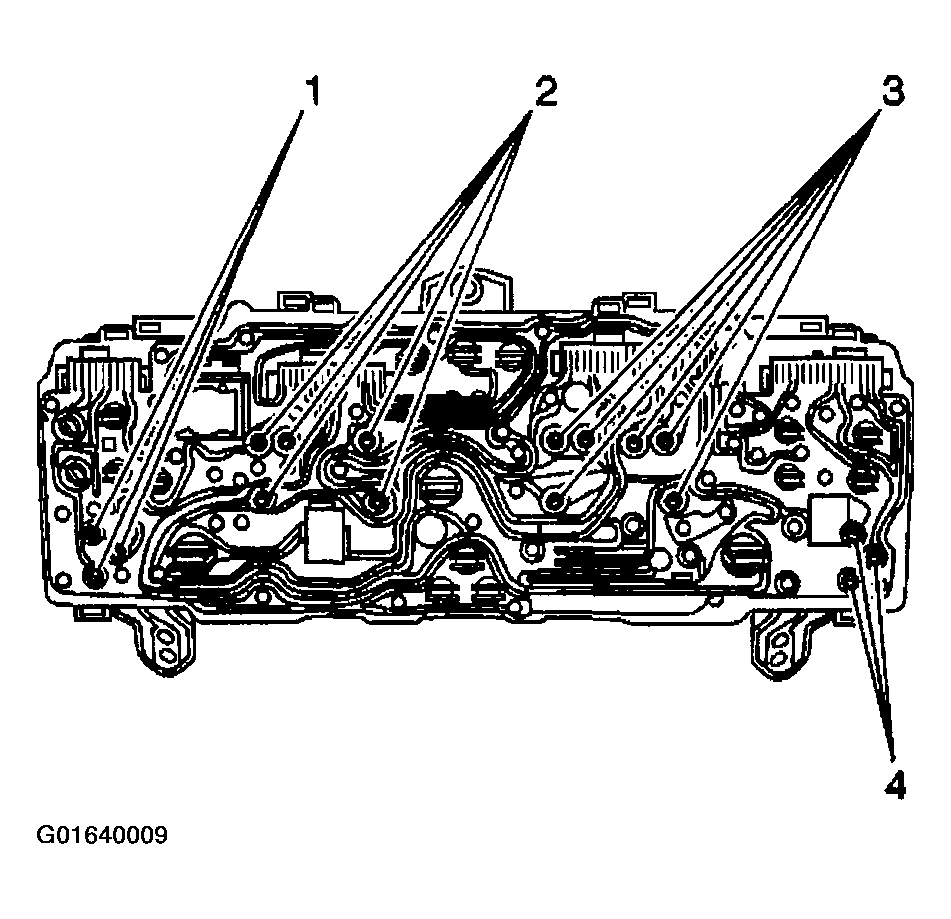

    Fig 2: Securing Tachometer With 6 Screws
    G01640009Courtesy of GENERAL MOTORS CORP.
