Installation Procedure

  1. Install the speedometer (2) to the instrument cluster case.

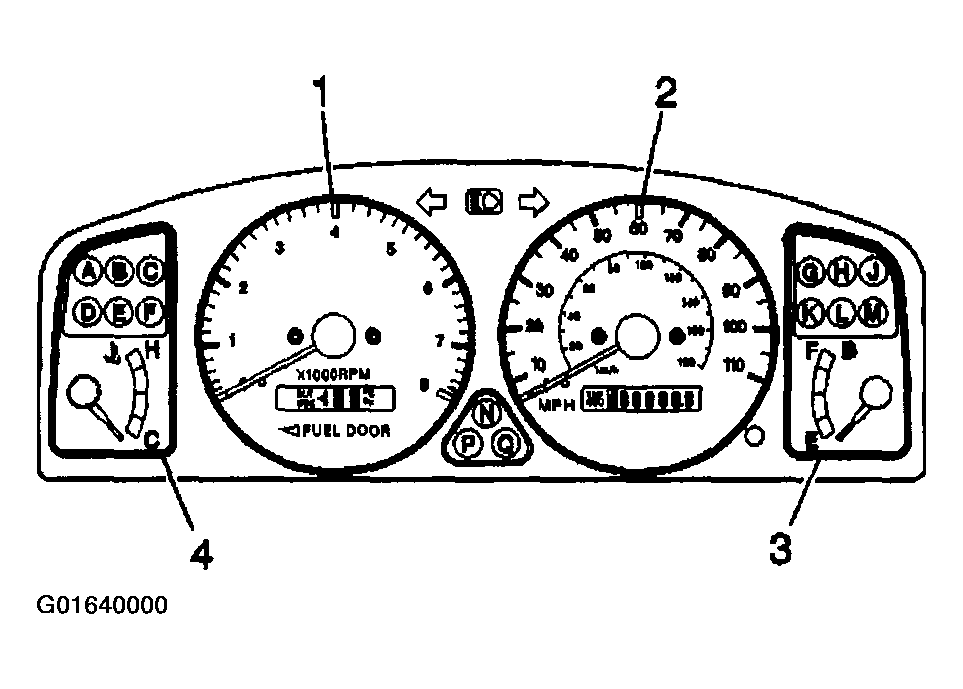

    Fig 1: Installing Speedometer
    G01640000Courtesy of GENERAL MOTORS CORP.
  2. Secure the speedometer with the 5 screws (2).
  3. Install the instrument cluster retainer. Refer to BEZEL REPLACEMENT - IP Cluster .

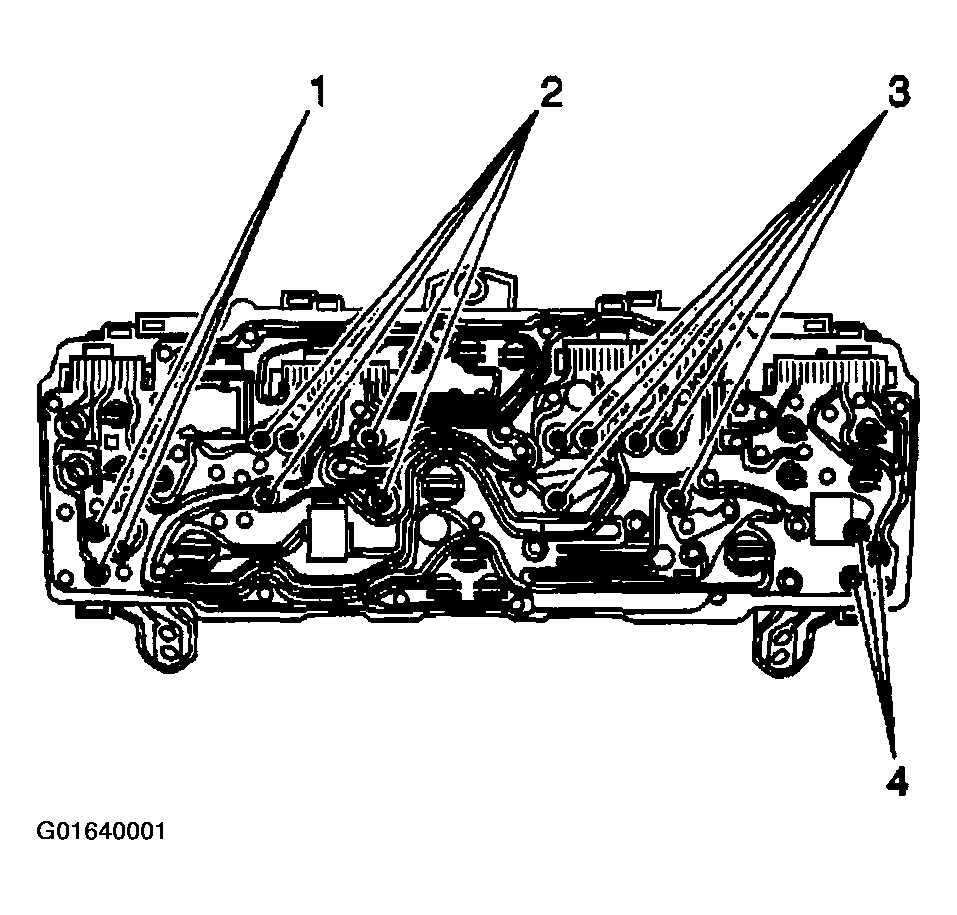

    Fig 2: Securing Speedometer With 5 Screws
    G01640001Courtesy of GENERAL MOTORS CORP.
