Data Link Connector (Under Hood) Connector End View

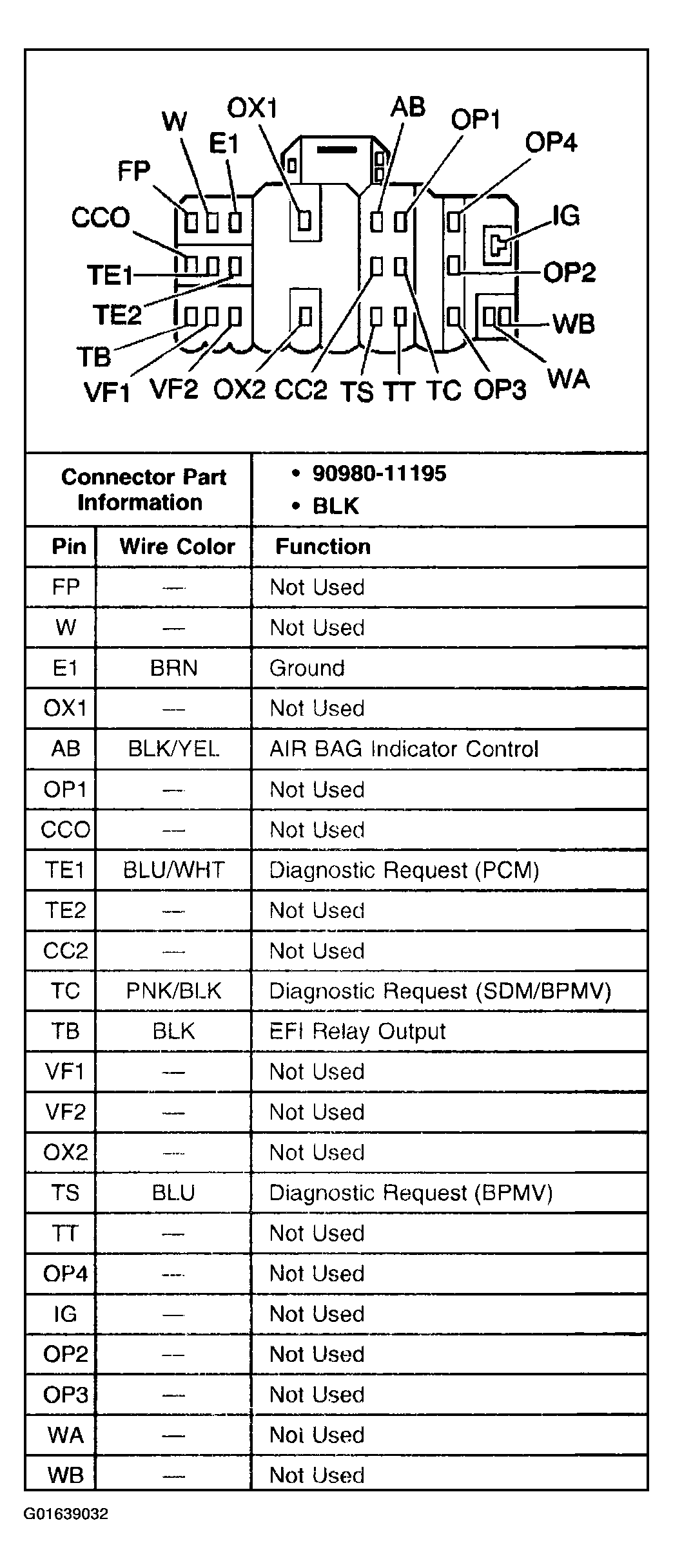

Fig 1: Data Link Connector (Under Hood)

G01639032

Courtesy of GENERAL MOTORS CORP.
