Blower Speed Switch Connector End View

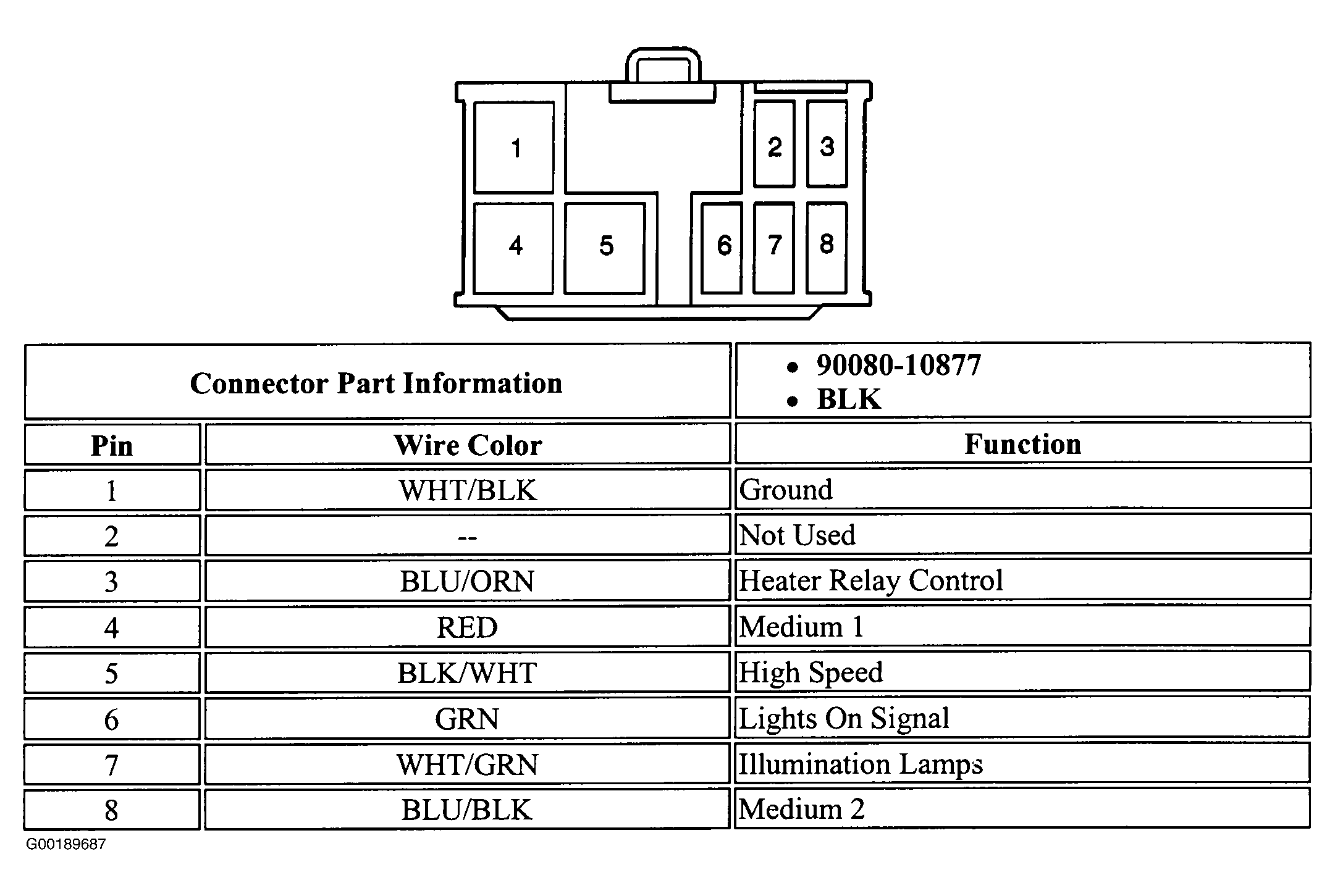

Fig 1: Blower Speed Switch

G00189687

Courtesy of GENERAL MOTORS CORP.
