Auxiliary Fan Motor Connector End View

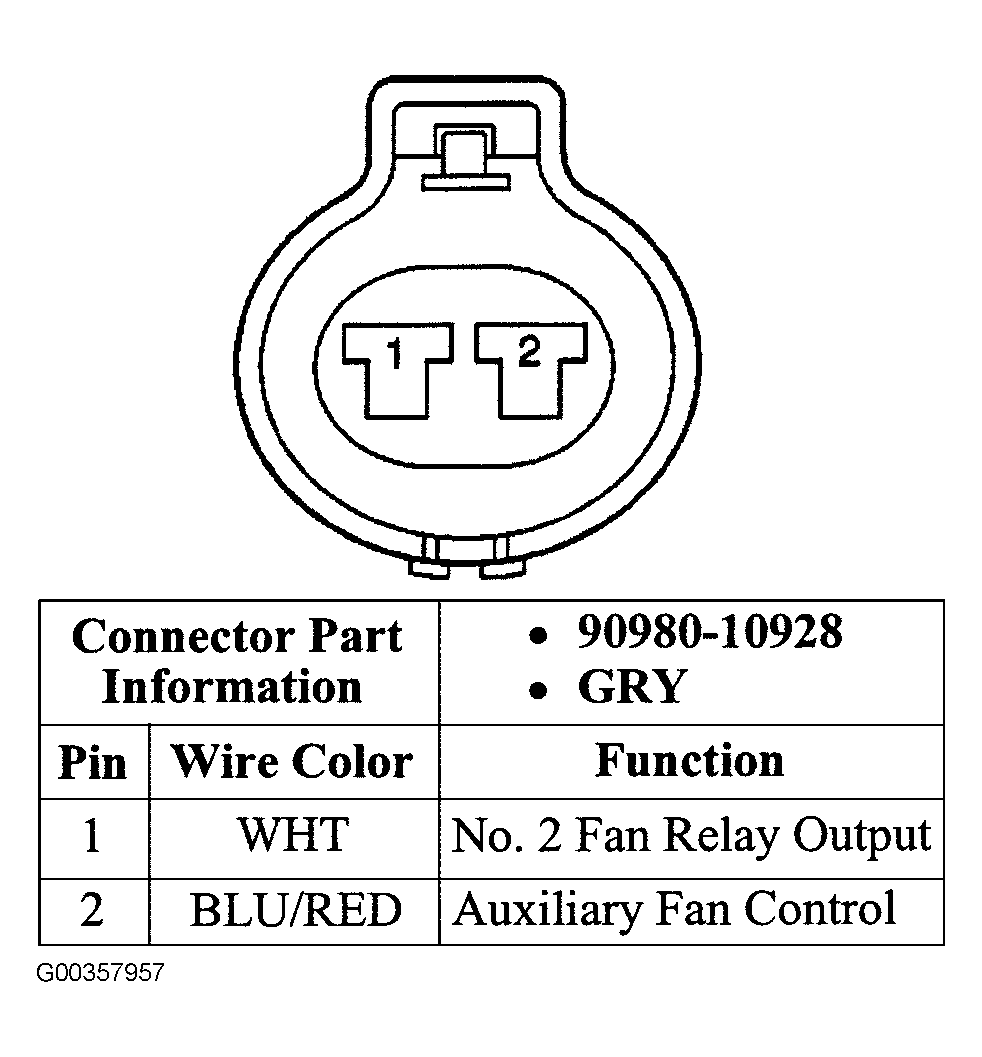

Fig 1: Auxiliary Fan Motor

G00357957

Courtesy of GENERAL MOTORS CORP.

Fig 1: Auxiliary Fan Motor

G01711667

Courtesy of GENERAL MOTORS CORP.
