Removal Procedure

  1. Remove the rear seat bottom and seat back. Refer to SEAT BACK REPLACEMENT -- REAR (FULL WIDTH) or SEAT BACK REPLACEMENT -- REAR (AN2) .

    Important:  The wheel speed sensor is serviceable only as an assembly. Do NOT attempt to service the sensor harness pigtail.

  2. Disconnect the electrical connector (1) from the wheel speed sensor.

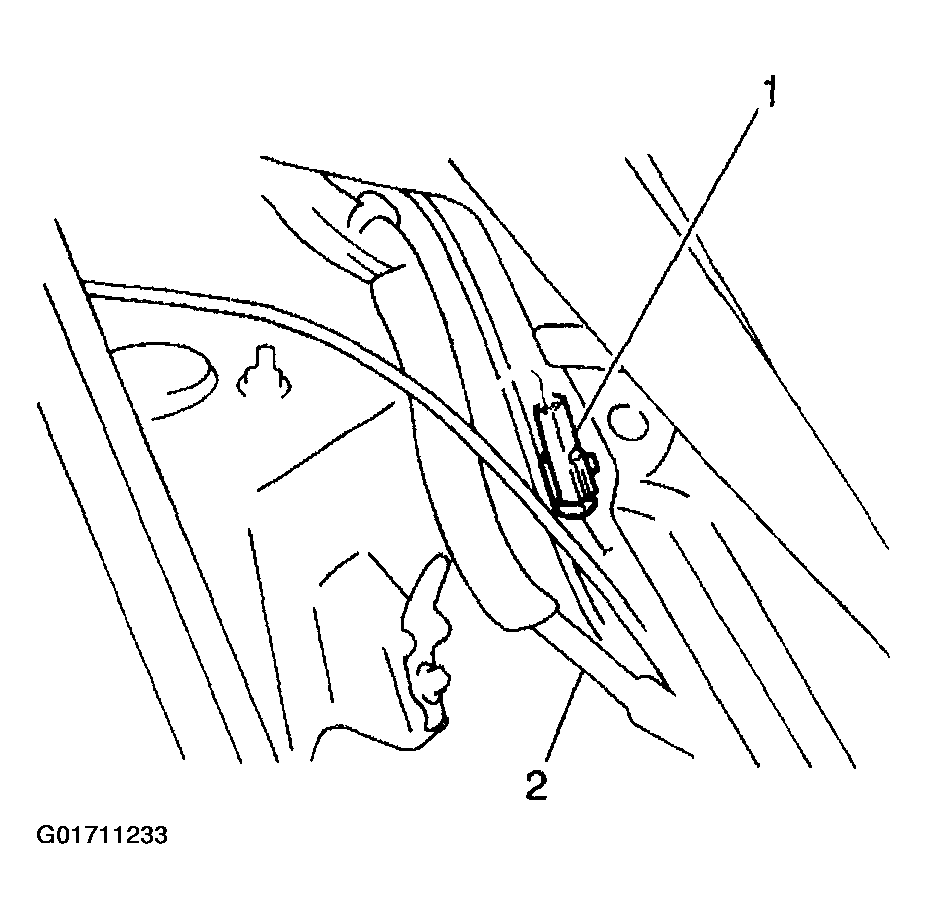

    Fig 1: Disconnecting Electrical Connector
    G01711233Courtesy of GENERAL MOTORS CORP.
  3. Raise and suitably support the vehicle.
  4. Pull the pigtail harness (1) for the wheel speed sensor out through the body. Remove the grommet (2).

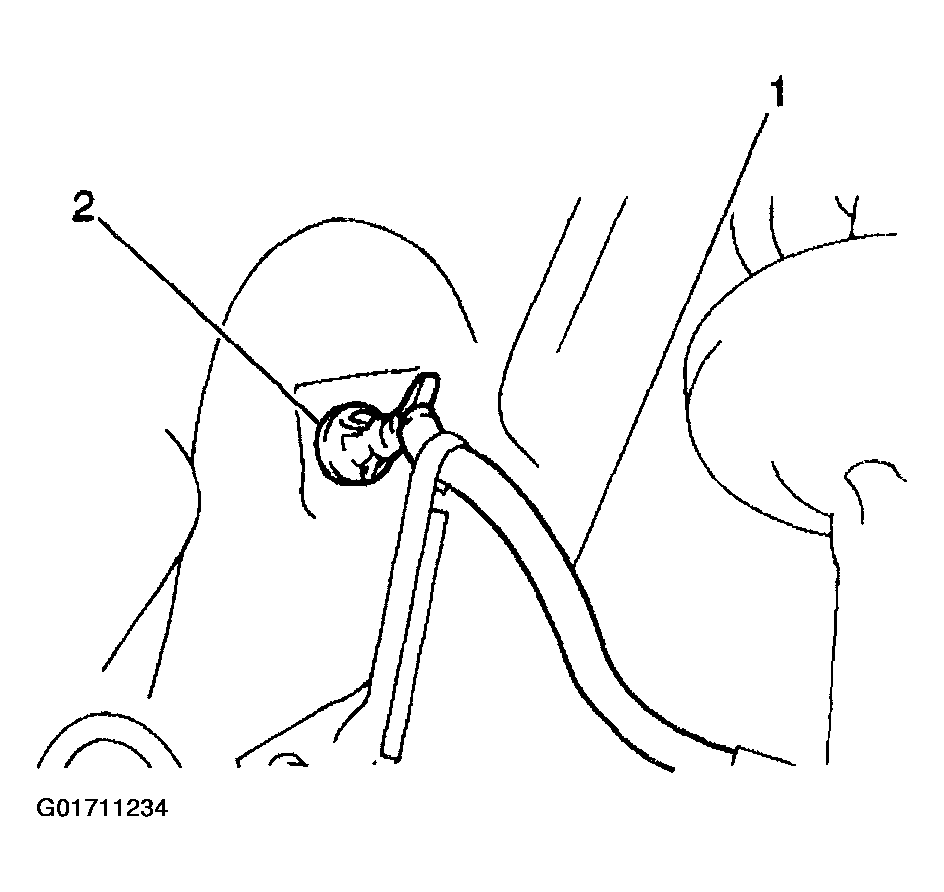

    Fig 2: Pulling Pigtail Harness
    G01711234Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolt which retains the wheel speed sensor pigtail harness (1) to the vehicle.

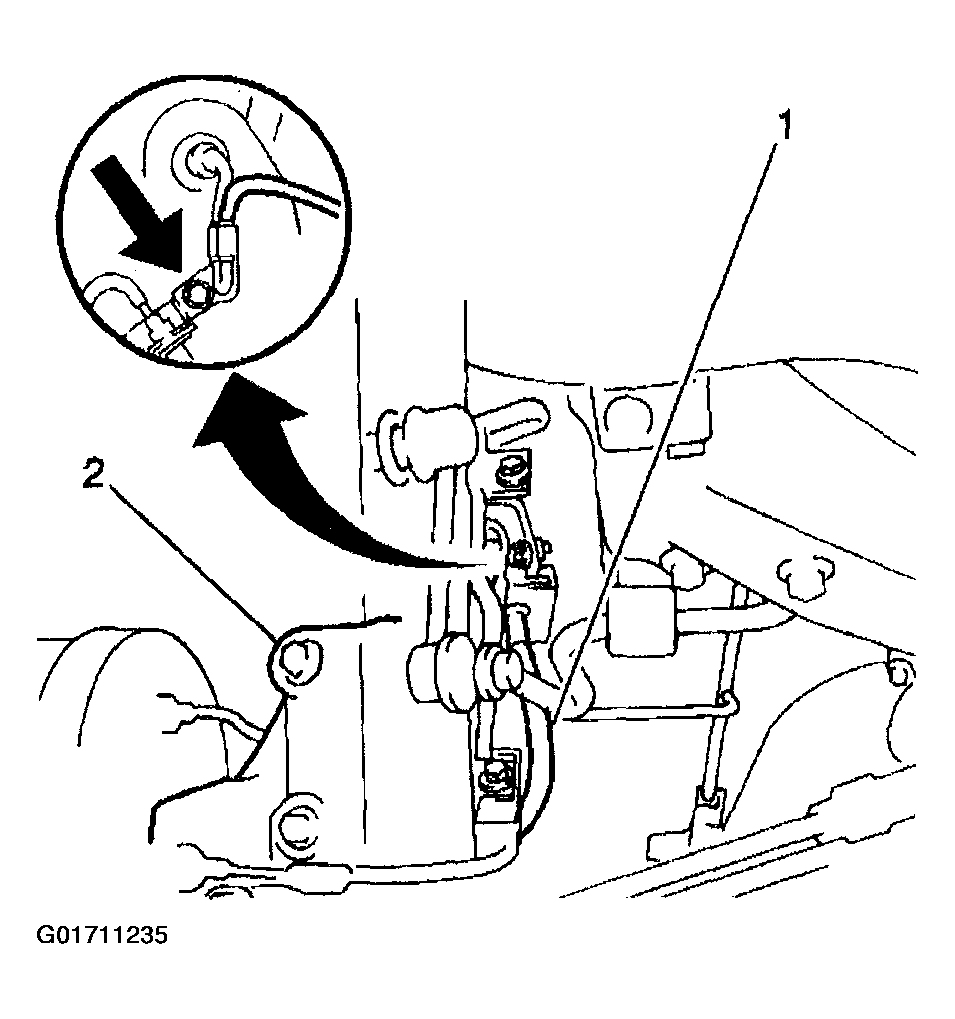

    Fig 3: Removing Wheel Speed Sensor Pigtail Harness Bolt
    G01711235Courtesy of GENERAL MOTORS CORP.
  6. Remove the wheel speed sensor retaining bolt (2) and remove the wheel speed sensor (1) from suspension knuckle.

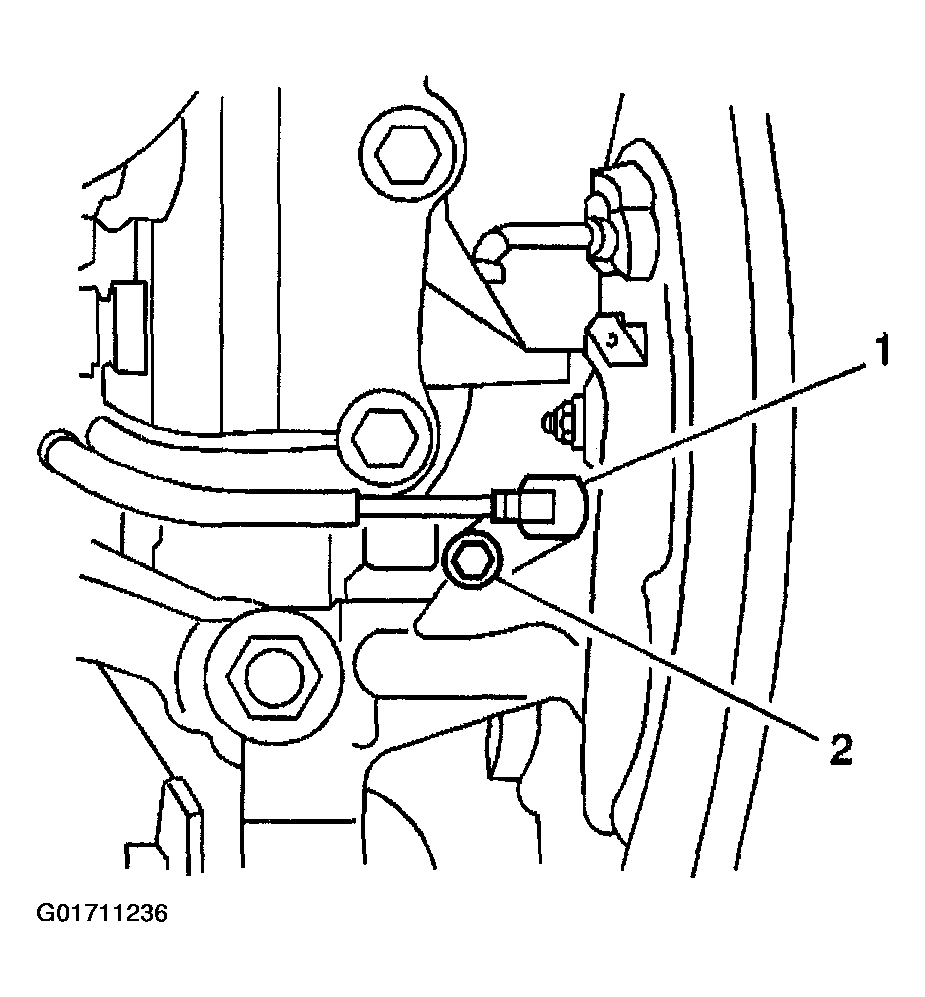

    Fig 4: Removing Wheel Speed Sensor Retaining Bolt
    G01711236Courtesy of GENERAL MOTORS CORP.
