Removal Procedure

  1. Remove the front side door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - Front Door .
  2. Remove the 2 screws (1) and the access shield (3) from the door (2), if equipped.

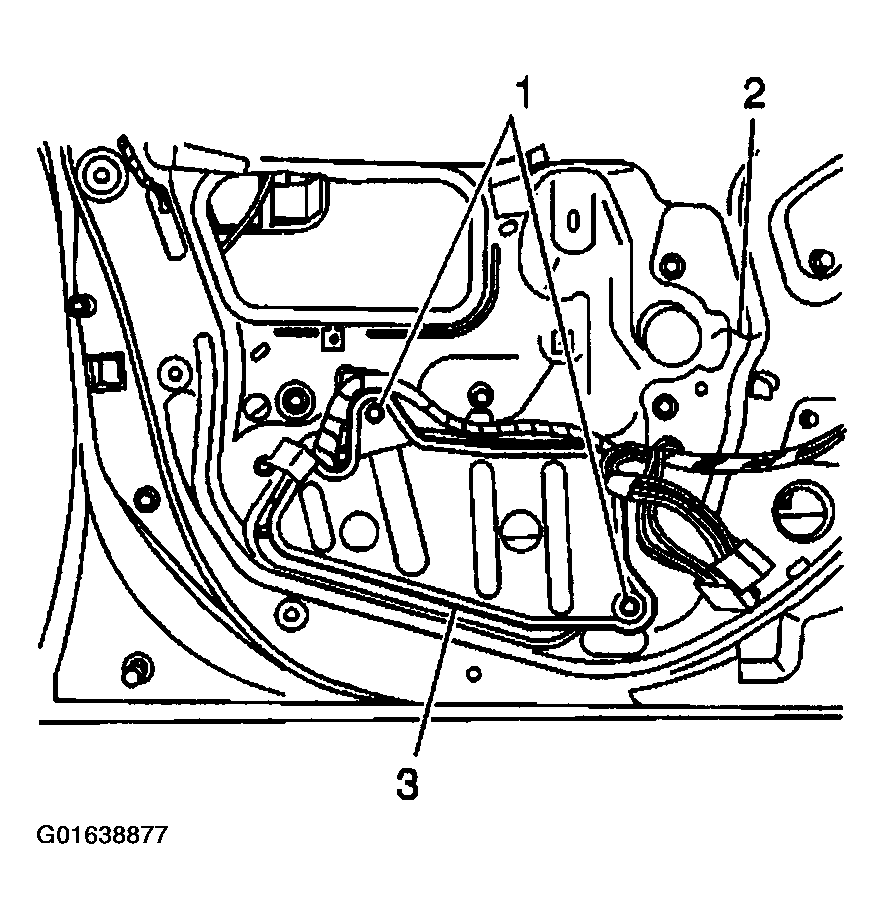

    Fig 1: Removing 2 Screws And Access Shield
    G01638877Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2 window-to-regulator bolts.

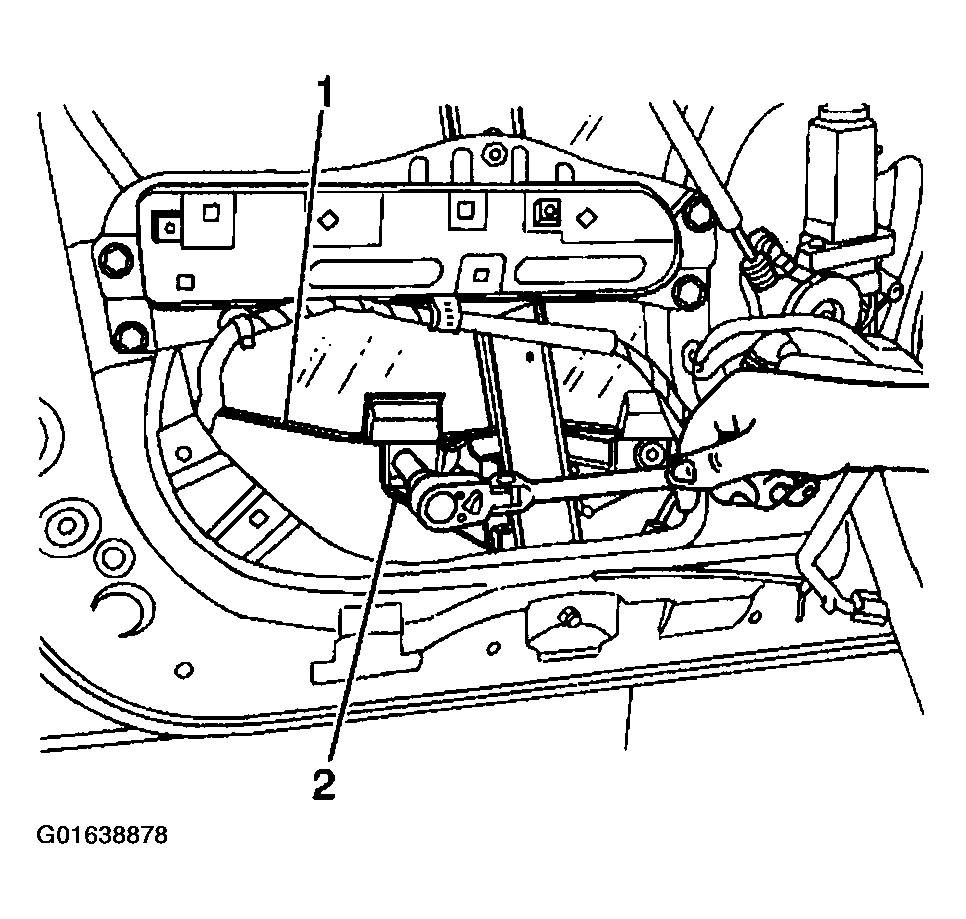

    Fig 2: Removing 2 Window-To-Regulator Bolts
    G01638878Courtesy of GENERAL MOTORS CORP.
  4. Remove the window (1) by pulling up and out of the door.
