Removal Procedure

CAUTION: Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless instructed otherwise in these procedures. If a tool or equipment could easily come in contact with a live exposed electrical terminal, also disconnect the negative battery cable. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components.

Disconnect the negative battery cable.
Remove the IP drivers knee bolster reinforcement. Refer to Knee Bolster Replacement .
Remove the screw (2) from Junction Block #2 (1) and position the junction block in order to gain access to the multifunction alarm module.

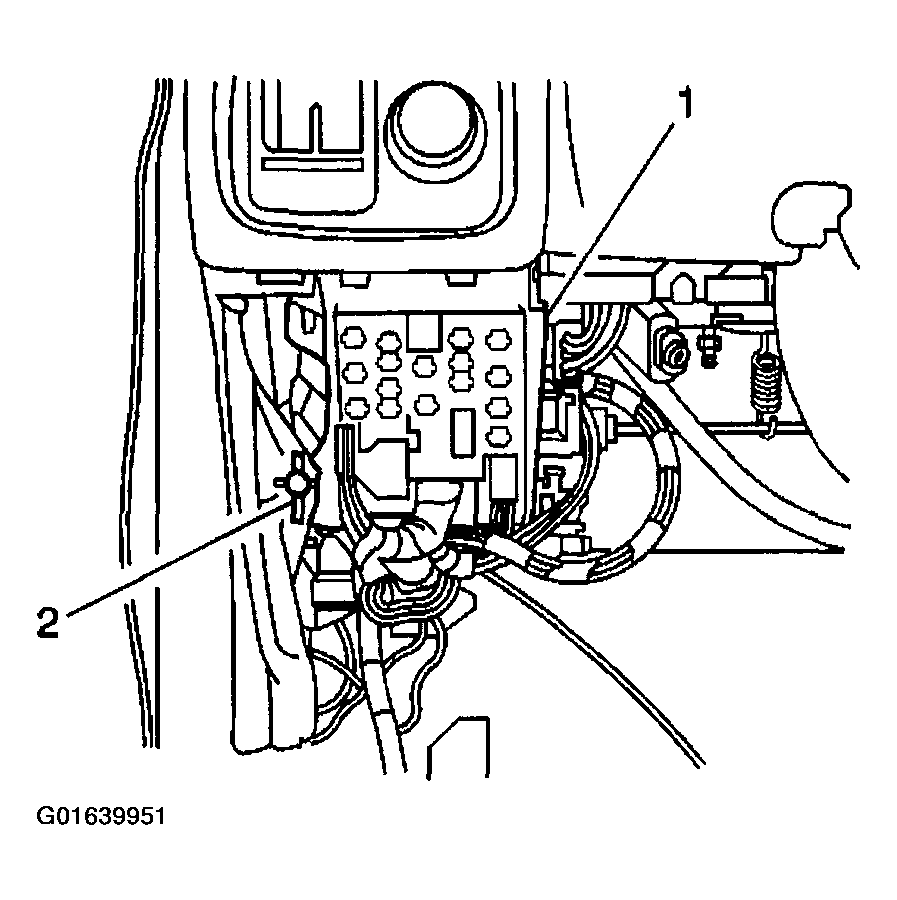

Fig 1: Removing Screw From Junction Block #2
Courtesy of GENERAL MOTORS CORP.
Disconnect the 2 multifunction alarm module electrical connectors.
Disconnect the multifunction alarm module (1) from the rear of Junction Block #2 (2).

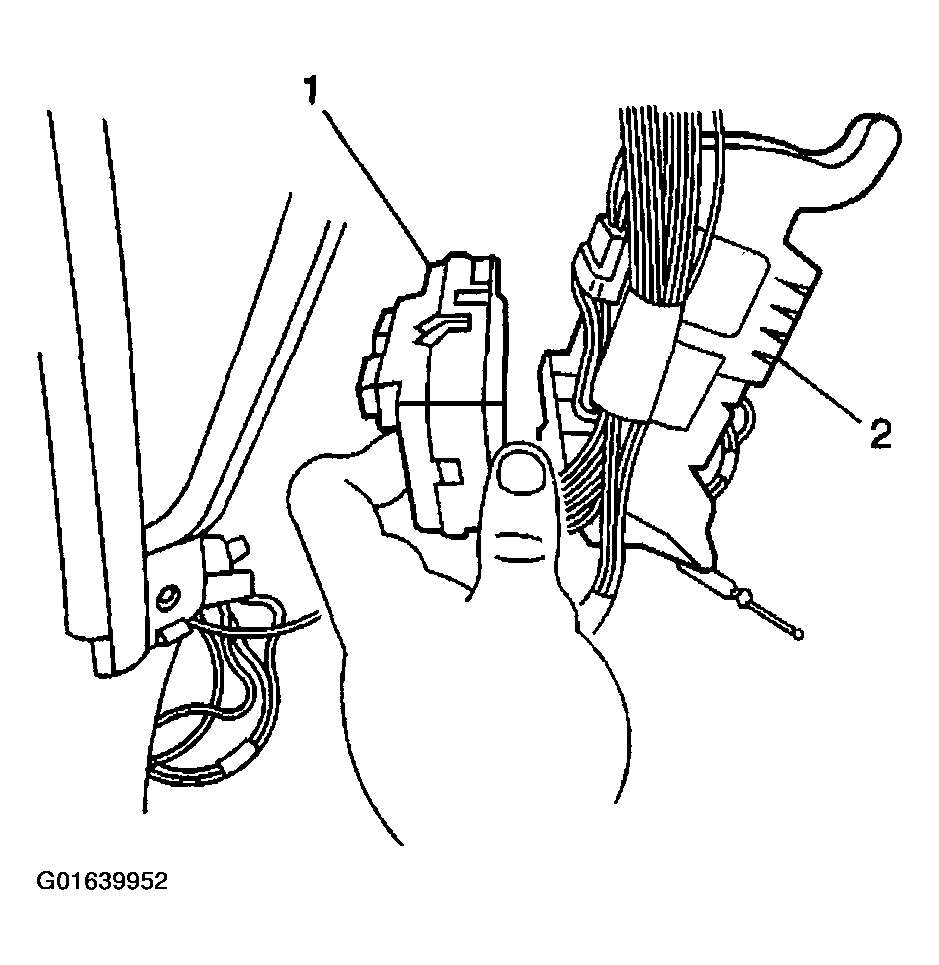

Fig 2: Disconnecting Multifunction Alarm Module From Rear Of Junction Block #2
Courtesy of GENERAL MOTORS CORP.
