Installation Procedure

  1. Install the multifunction alarm module (1) to the rear of Junction Block #2 (2).

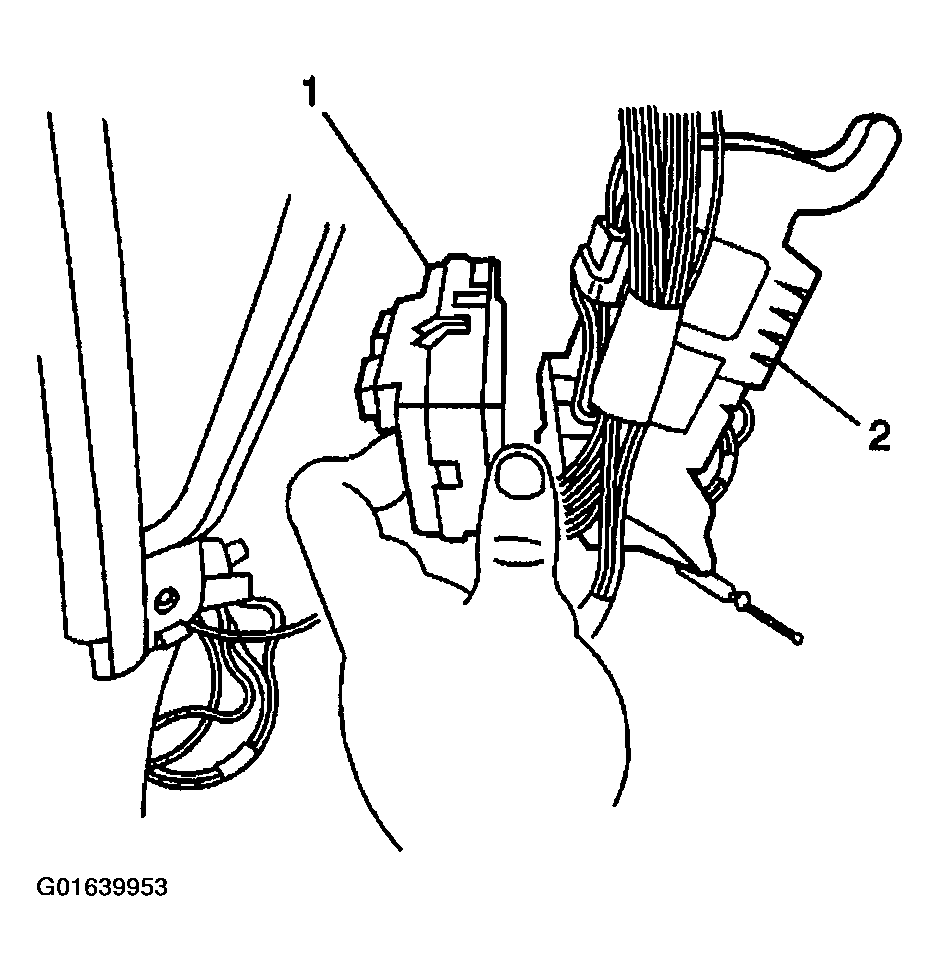

    2. Fig 1: Installing Multifunction Alarm Module To Rear Of Junction Block #2
    G01639953Courtesy of GENERAL MOTORS CORP.
  2. Connect the 2 multifunction alarm module electrical connectors.
  3. Reposition Junction Block #2 (1) back into position. Secure the junction block with the screw (2).

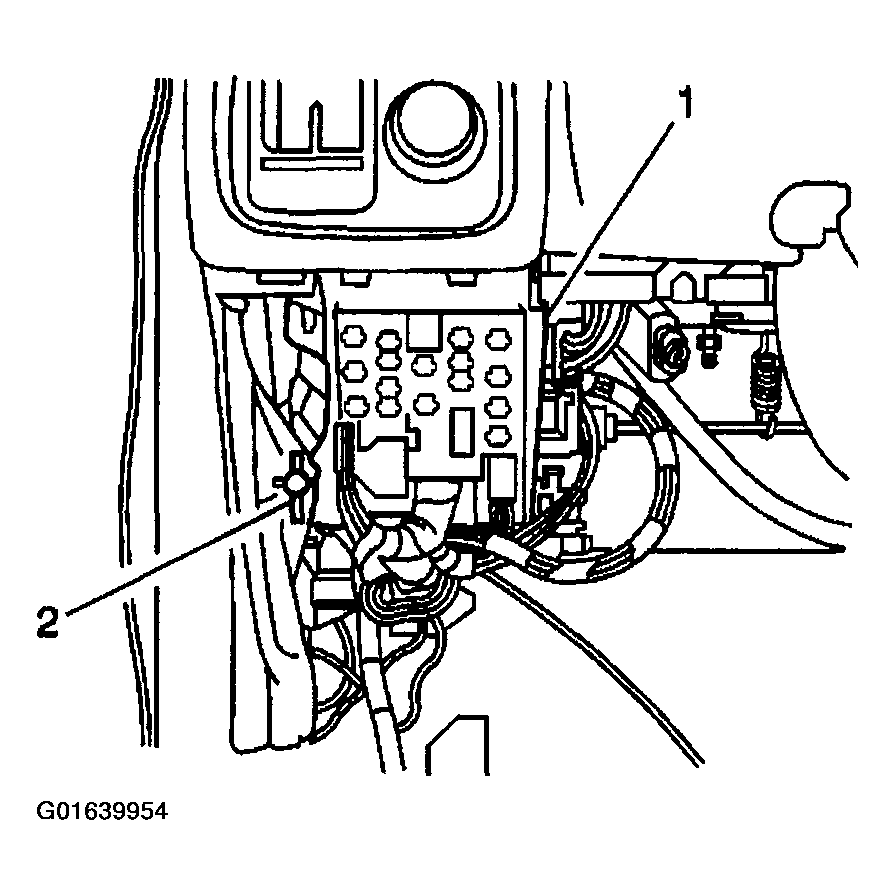

    4. Fig 2: Repositioning Junction Block #2
    G01639954Courtesy of GENERAL MOTORS CORP.
  4. Install the IP drivers knee bolster reinforcement. Refer to Knee Bolster Replacement .
  5. Connect the negative battery cable.
