Removal Procedure

  1. Remove the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT -- IP in Instrument Panel, Gages and Console.
  2. Disconnect the cruise control module electrical connector.
  3. Remove the following components from the vehicle:
    • The cruise control module mounting bolt
    • The cruise control module (2)

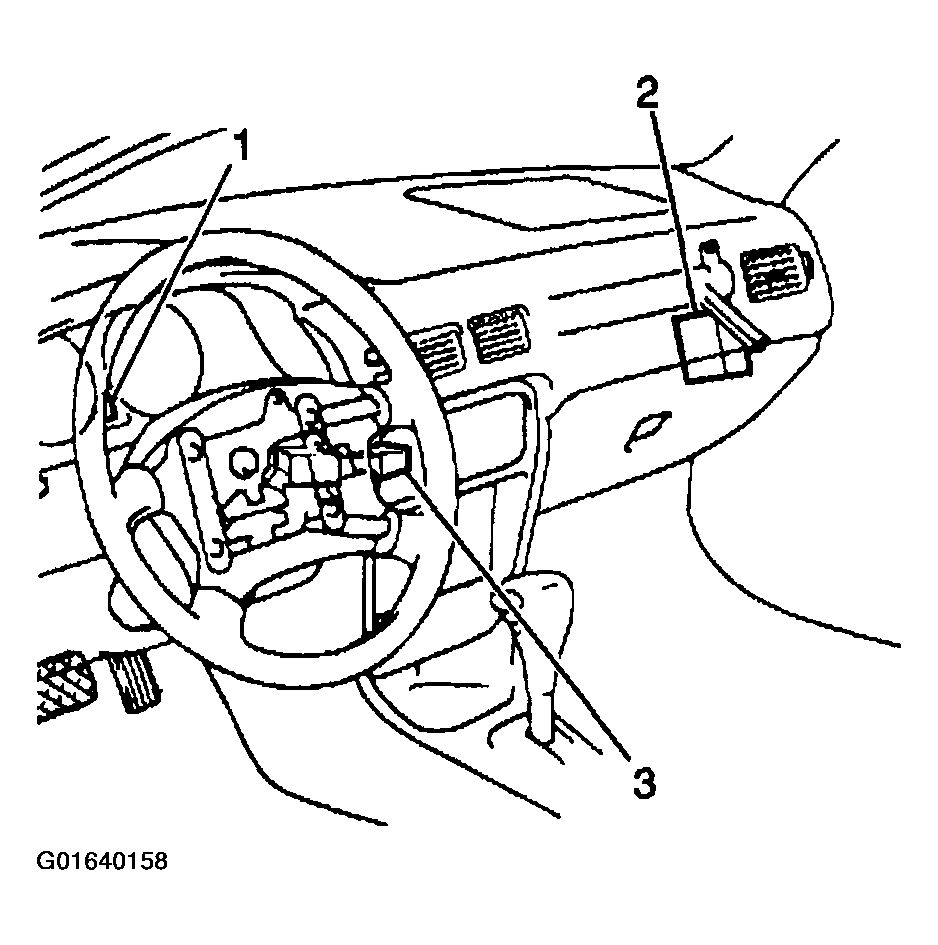

    Fig 1: Removing Cruise Control Module Mounting Bolt And Cruise Control Module
    G01640158Courtesy of GENERAL MOTORS CORP.
