Instrument Panel Compartment: Installation

  1. Install the instrument panel compartment (2) to the instrument panel. Secure the compartment with the upper 3 screws (1). See Fig 1 . Close the instrument panel compartment door.
  2. Install the 2 instrument panel compartment lower retaining bolts. Tighten the instrument panel compartment lower retaining bolts to 11 ft. lbs. (15 N.m). Install the right body hinge pillar trim panel.

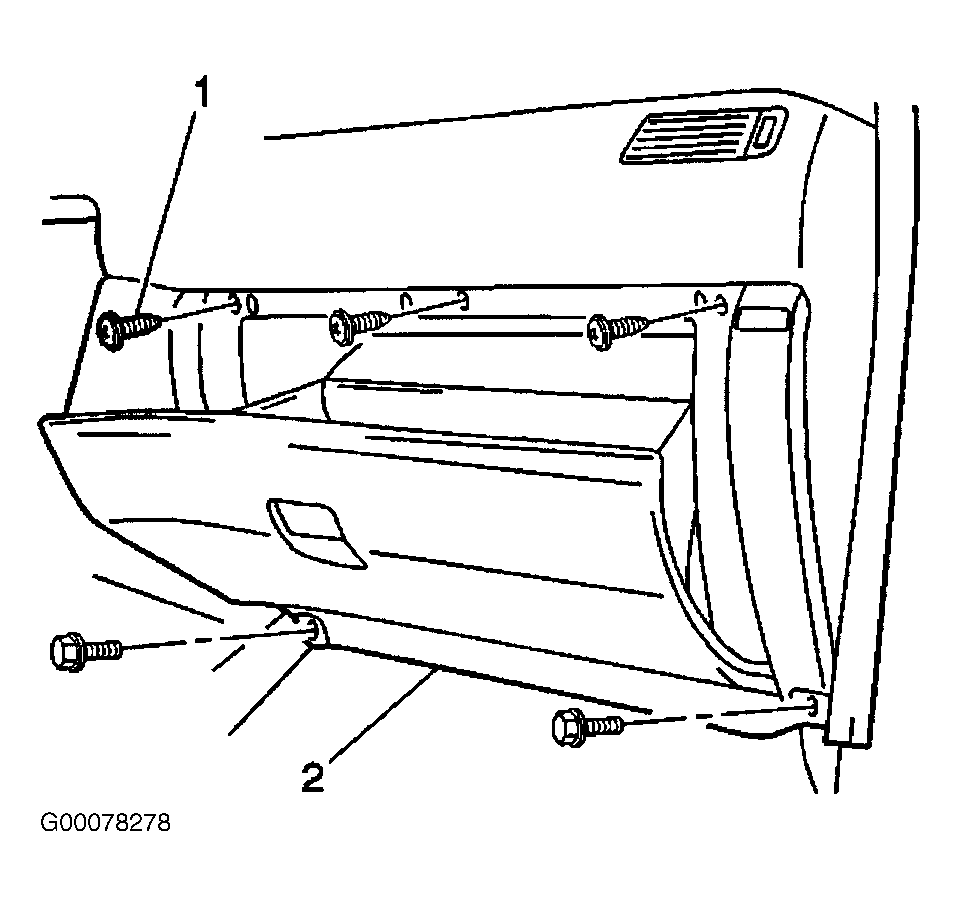

Fig 1: Removing & Installing Instrument Panel Compartment
G00078278Courtesy of GENERAL MOTORS CORP.
