Cigar Lighter: Installation

Install the cigar lighter lamp lens (2) to the center trim plate (1). See Fig 2 . Install the cigar lighter housing and element (2) to the cigar lighter lamp lens. Install the cigar lighter housing rear retainer (3) to the cigar element housing. See Fig 1 . Install the instrument panel accessory center trim plate.

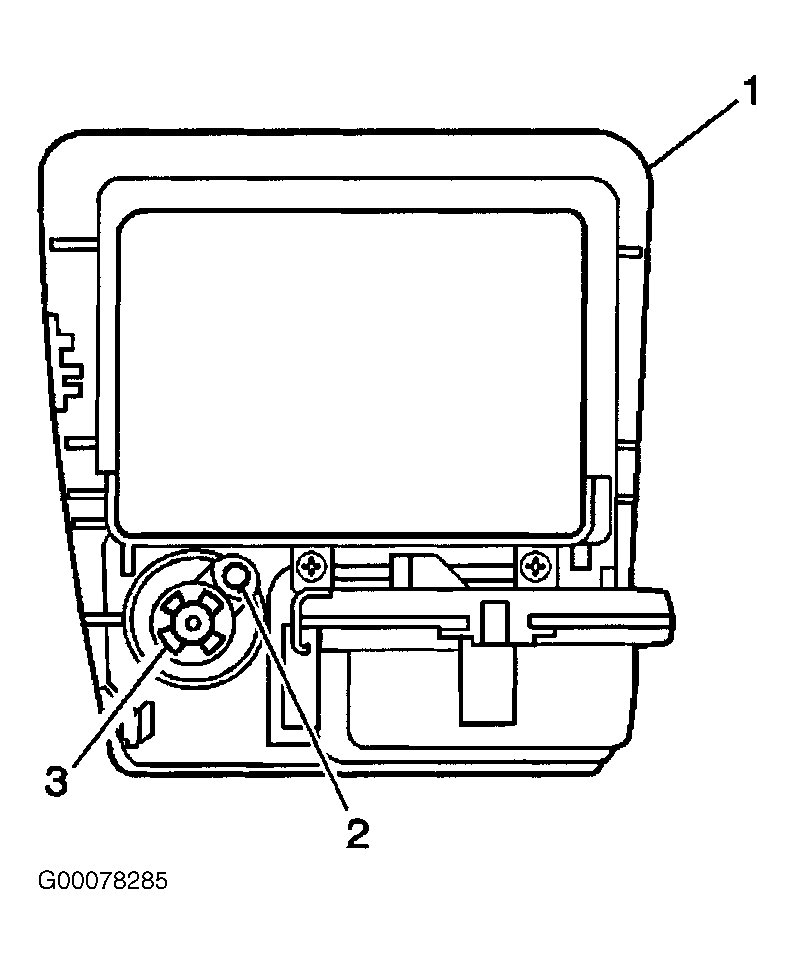

Fig 1: Removing & Installing Cigar Lighter Retainer

Courtesy of GENERAL MOTORS CORP.

Fig 2: Removing & Installing Cigar Lighter Lens

Courtesy of GENERAL MOTORS CORP.
