Power Steering Pump Disassembled View

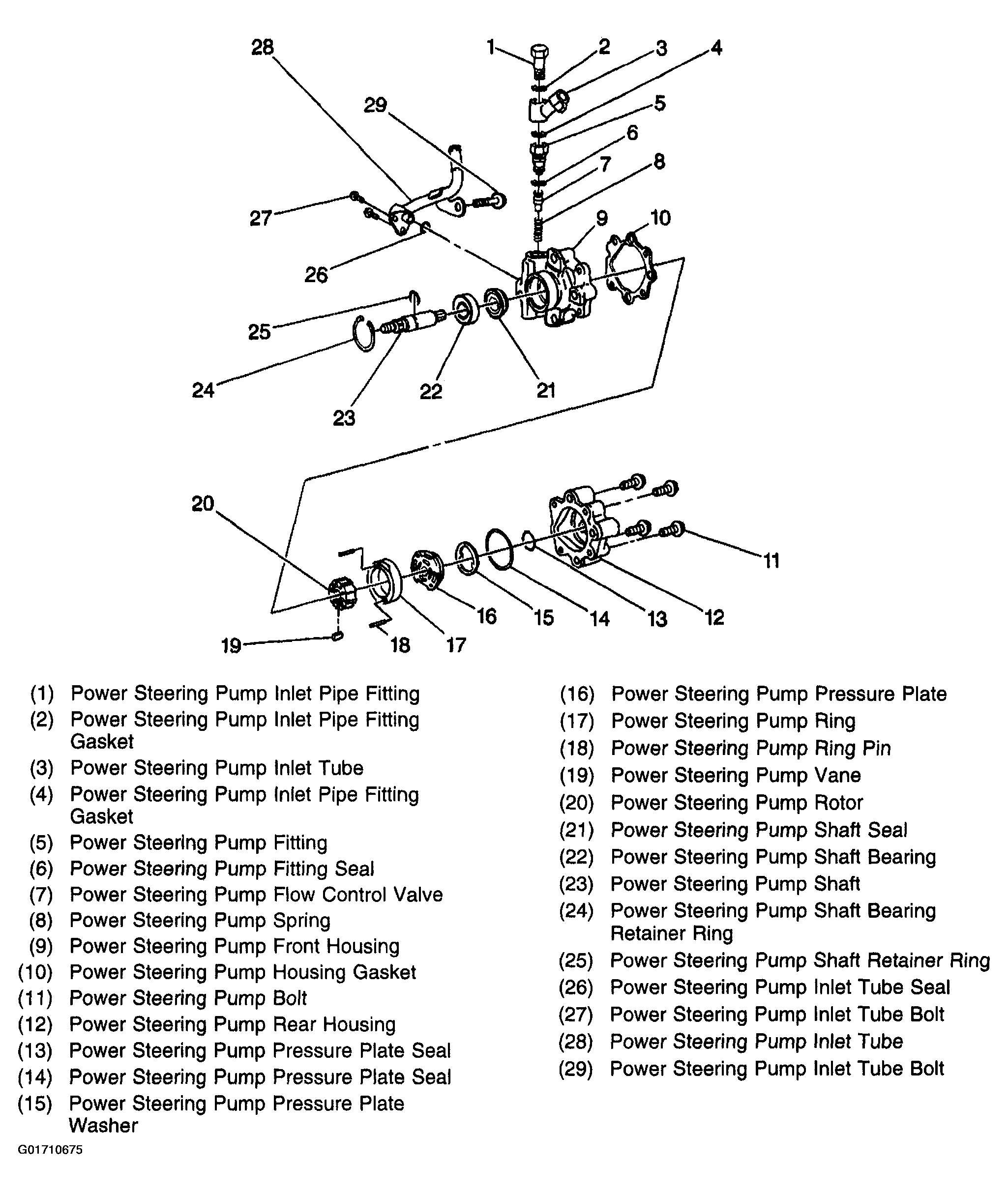

Fig 1: Power Steering Pump Disassembled View

G01710675

Courtesy of GENERAL MOTORS CORP.
