Power Steering Gear Disassembled View

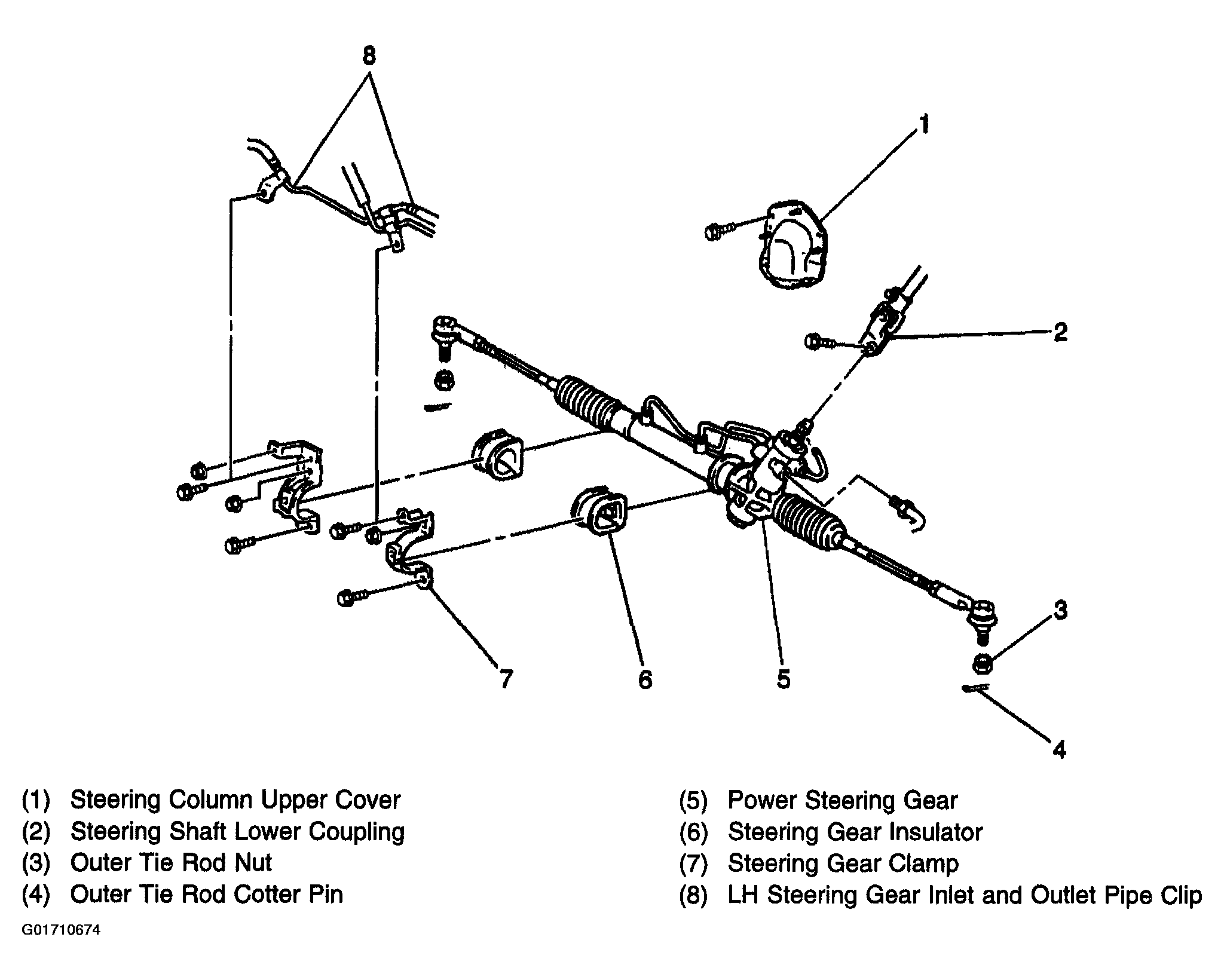

Fig 1: Power Steering Gear Components

G01710674

Courtesy of GENERAL MOTORS CORP.
