ABS Connector End Views

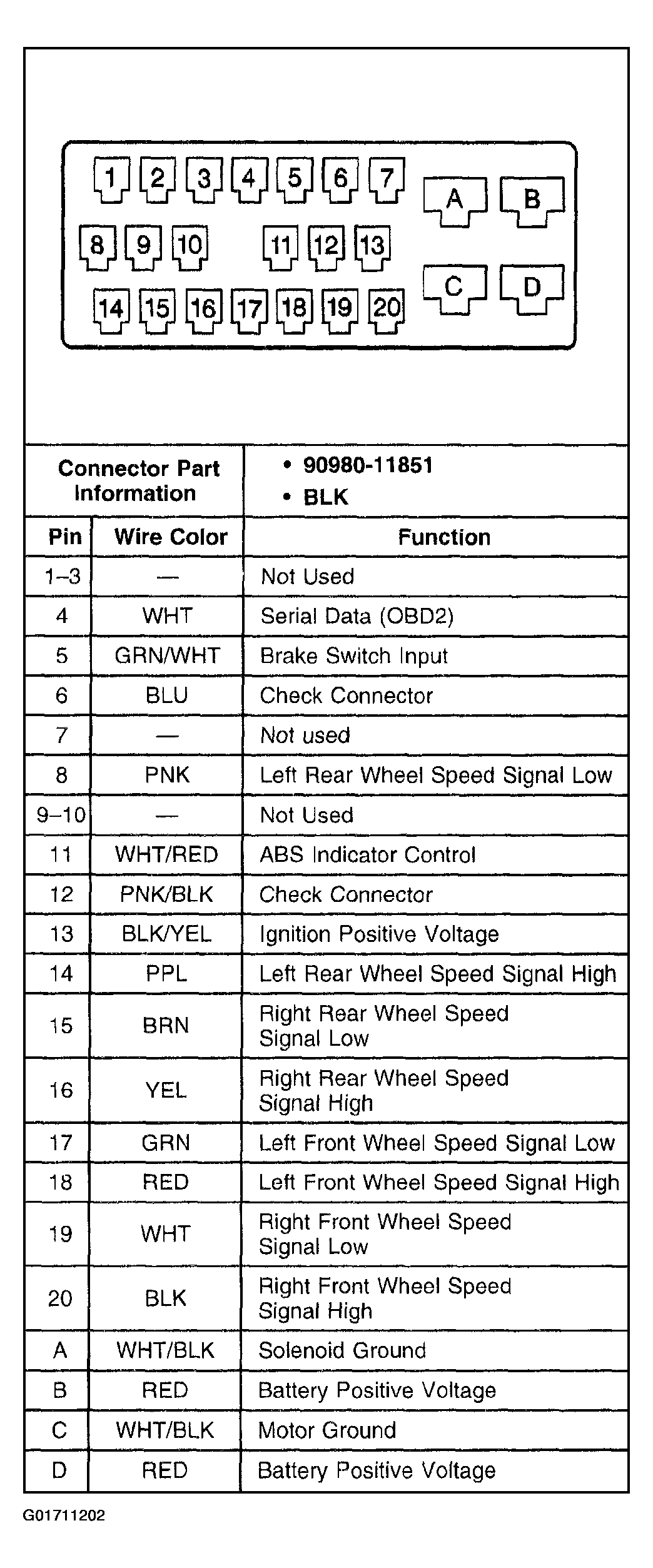

Fig 1: Brake Pressure Modulator Valve (BPMV)
G01711202Courtesy of GENERAL MOTORS CORP.

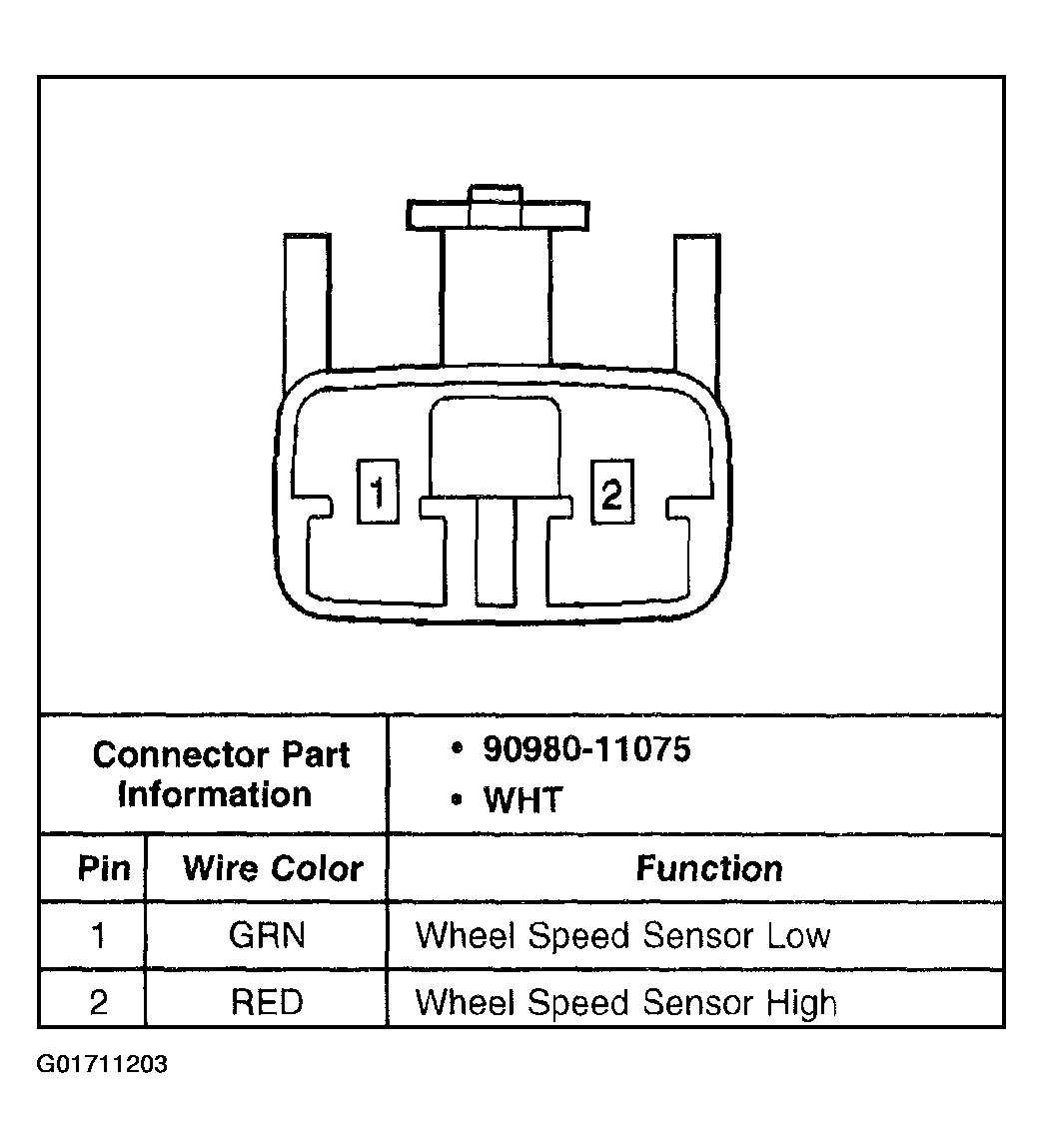

Fig 2: Left Front Wheel Speed Sensor
G01711203Courtesy of GENERAL MOTORS CORP.

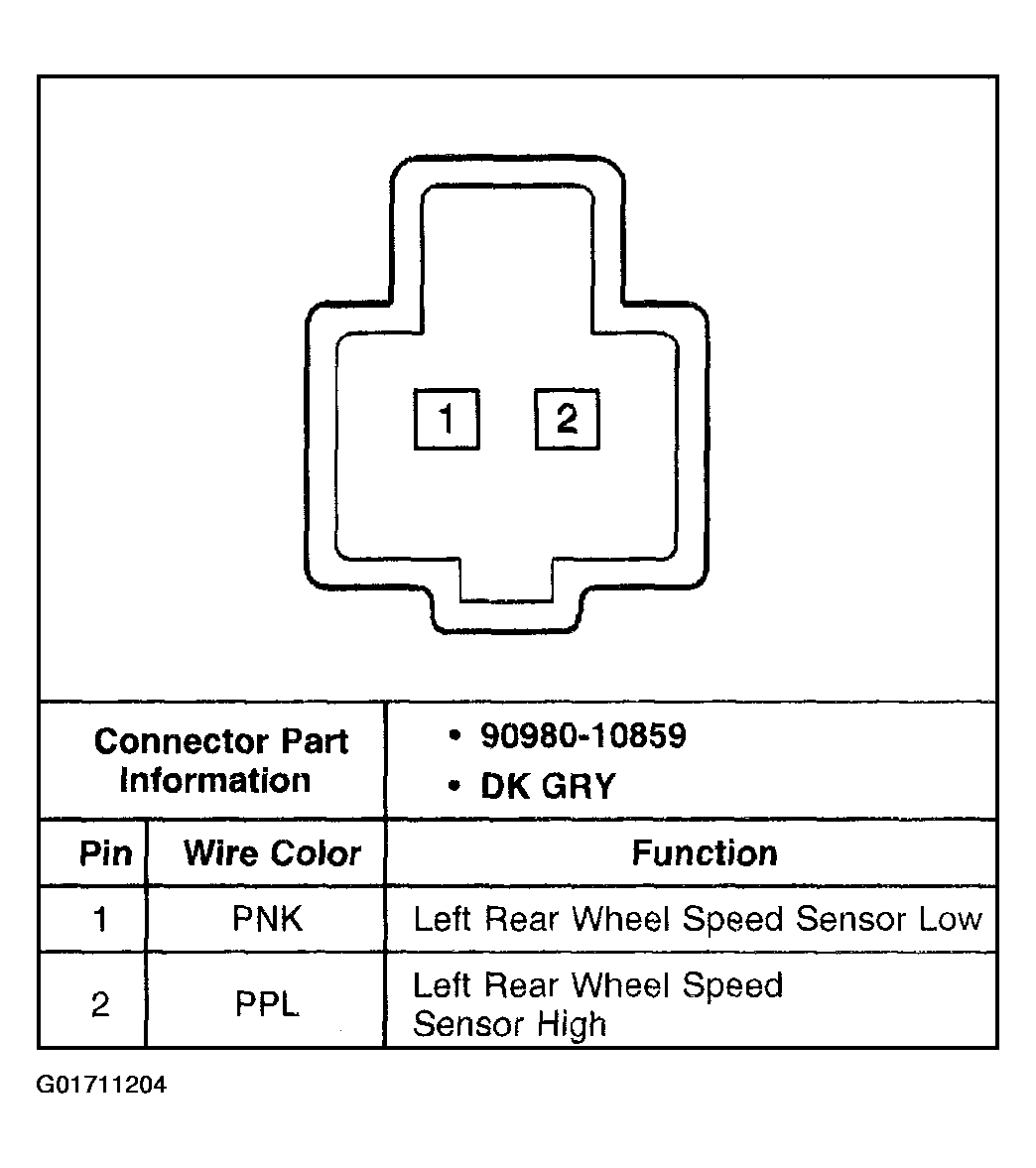

Fig 3: Left Rear Wheel Speed Sensor
G01711204Courtesy of GENERAL MOTORS CORP.

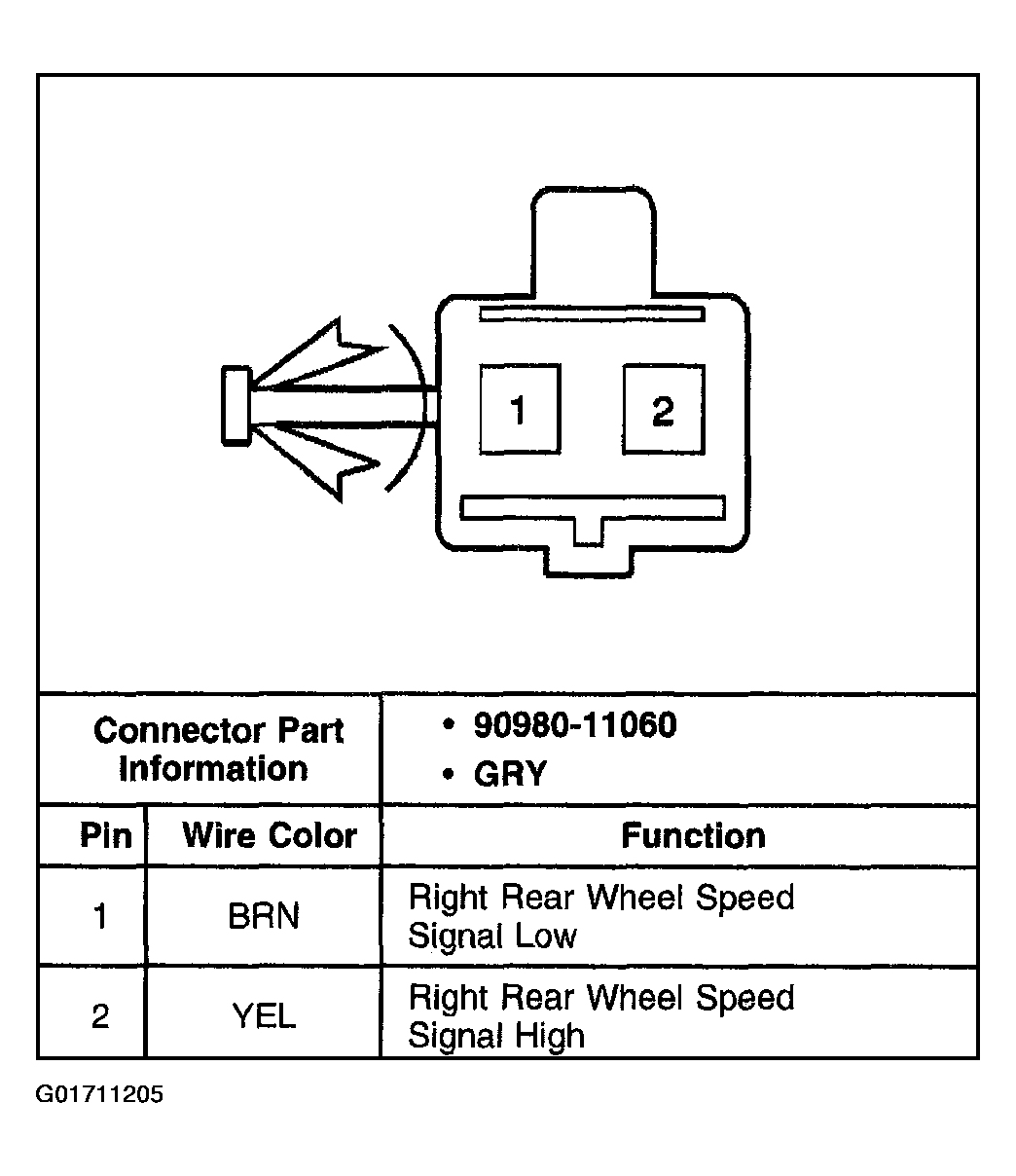

Fig 4: Right Rear Wheel Speed Sensor
G01711205Courtesy of GENERAL MOTORS CORP.

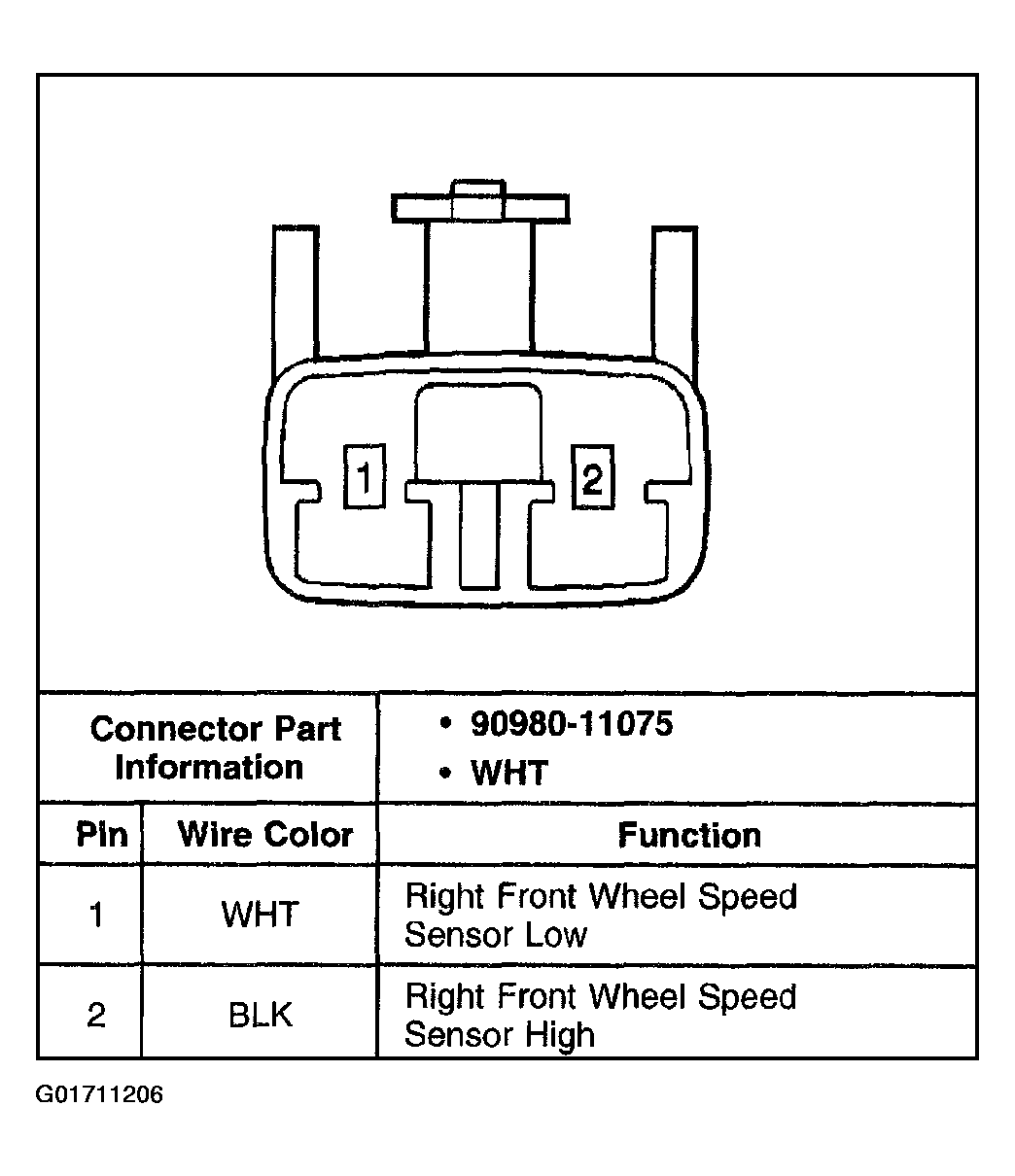

Fig 5: Right Front Wheel Speed Sensor
G01711206Courtesy of GENERAL MOTORS CORP.
