Removal Procedure

  1. Remove the center console trim bezel. Refer to TRIM PANEL REPLACEMENT -- IP CENTER .
  2. Remove the two screws and pull the HVAC control unit forward.
  3. Disconnect the defogger and air inlet switch electrical connector.
  4. Remove the two screws and the defogger and air inlet switch from the HVAC control unit.

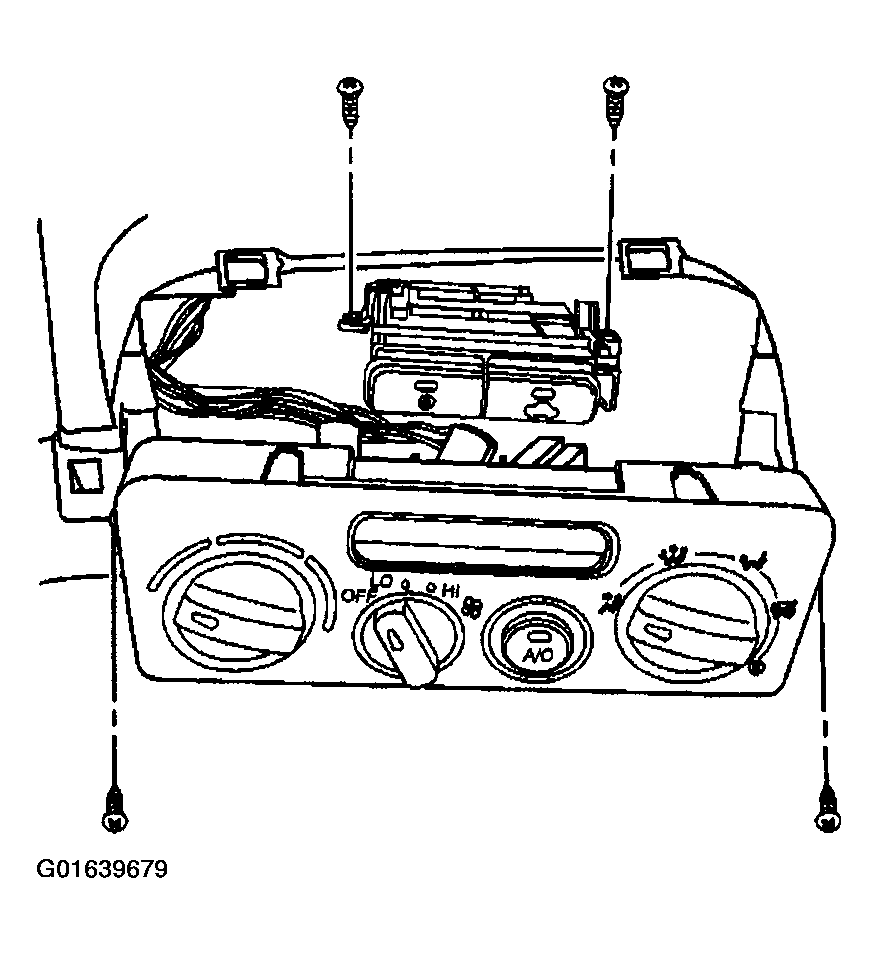

    Fig 1: Removing Two Screws, Defogger And Air Inlet Switch From HVAC Control unit
    G01639679Courtesy of GENERAL MOTORS CORP.
