Prizm Base, Automatic, A245E/MS7
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Stationary Window System
>>
Component Locator
>>
Stationary Windows Connector End Views
Stationary Windows Connector End Views

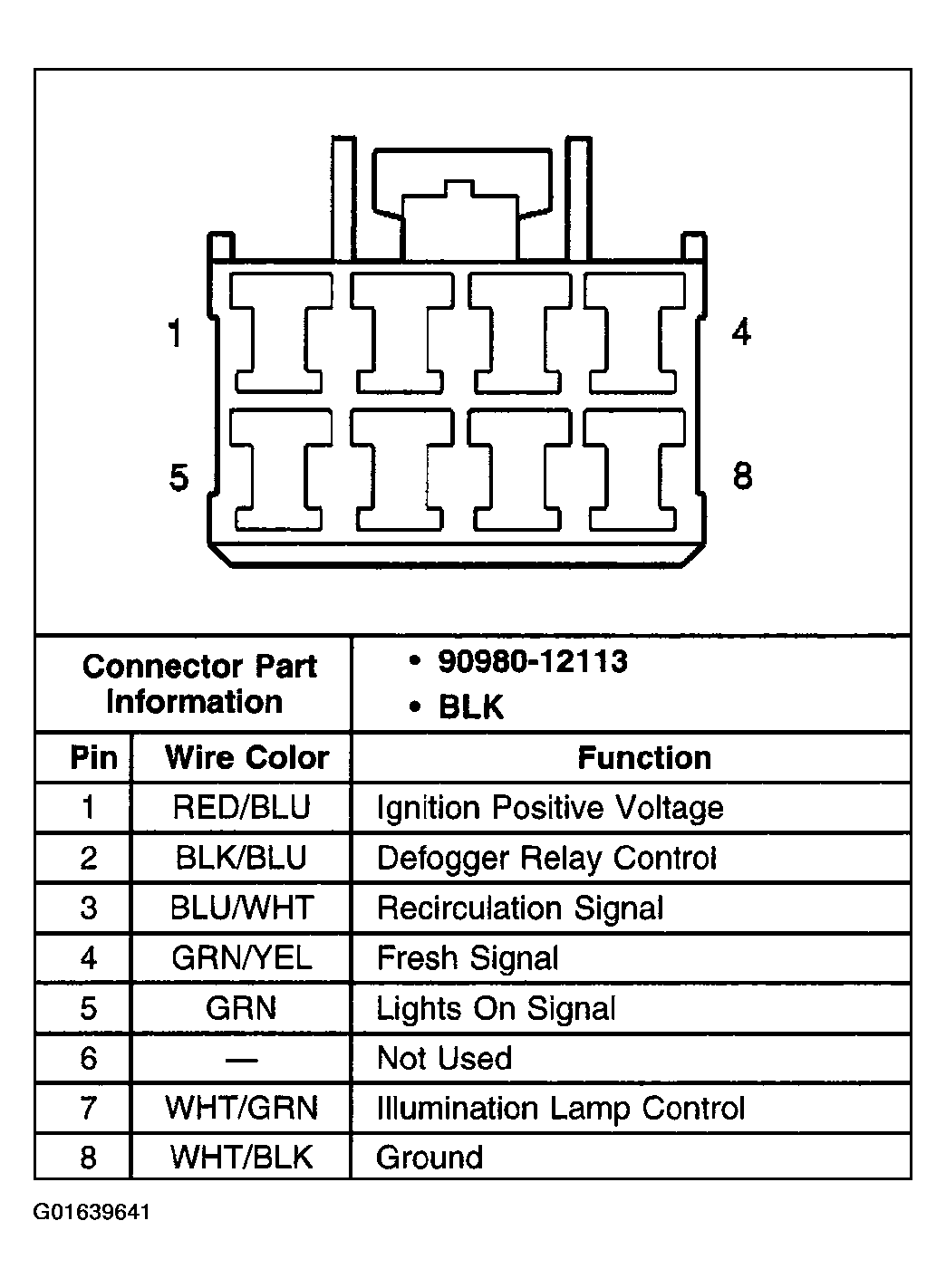

Fig 1: Air Inlet and Rear Defogger Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
