Removal Procedure

  1. Remove the IP drivers knee bolster reinforcement. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gauges and Console.
  2. Remove the following components from the vehicle:
    • The plastic retainer (1)
    • The left I/P outer air outlet duct (2)

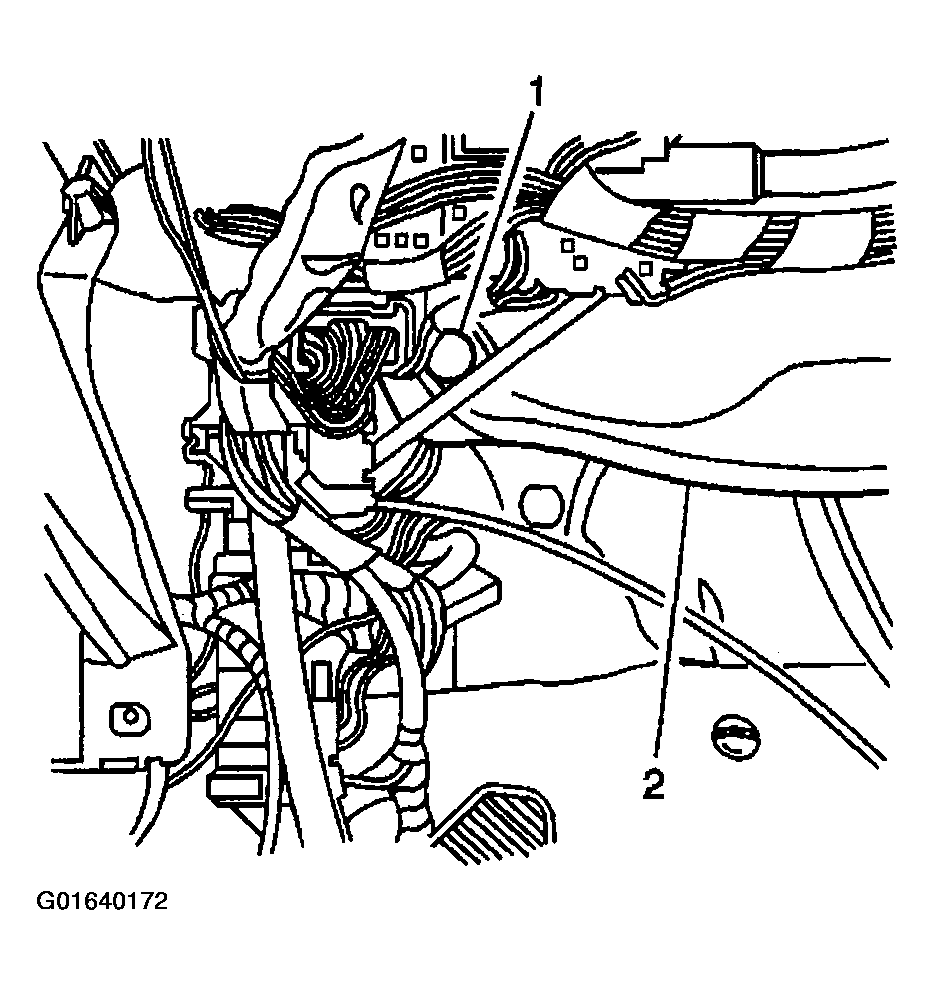

    Fig 1: Removing Plastic Retainer And Left I/P Outer Air Outlet Duct
    G01640172Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the cruise control release switch electrical connector (3).

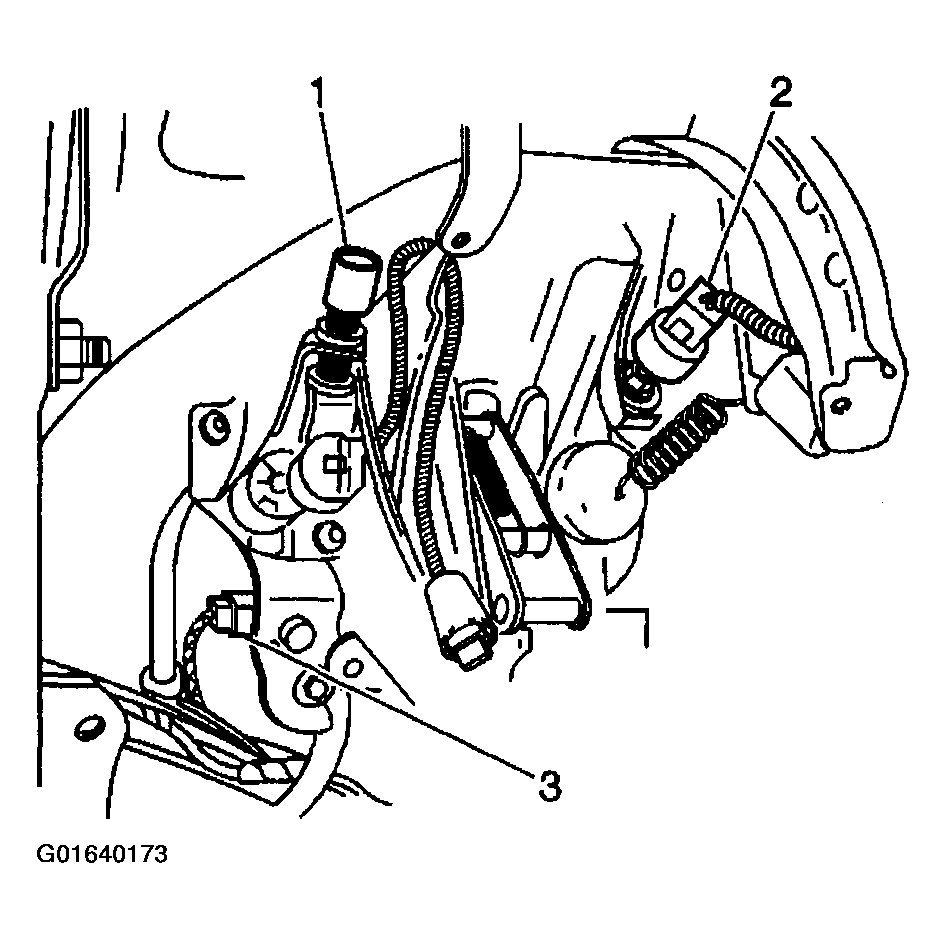

    Fig 2: Disconnecting Cruise Control Release Switch Electrical Connector
    G01640173Courtesy of GENERAL MOTORS CORP.
  4. Loosen the cruise control release switch lock nut.
  5. Remove the cruise control release switch (1) with the lock nut from the clutch pedal bracket by unscrewing it in the counterclockwise direction.
