Shift Lock Solenoid: Installation

  1. Install the shift interlock solenoid and the 2 screws. Rotate the shift indicator cover back to the original position and firmly snap downward. Install the 2 screws.
  2. Connect the electrical connector to the shift interlock solenoid. Connect the indicator bulb. See Fig 2 .
  3. Install the rear floor console. See REAR FLOOR CONSOLE  . Connect the negative battery cable.

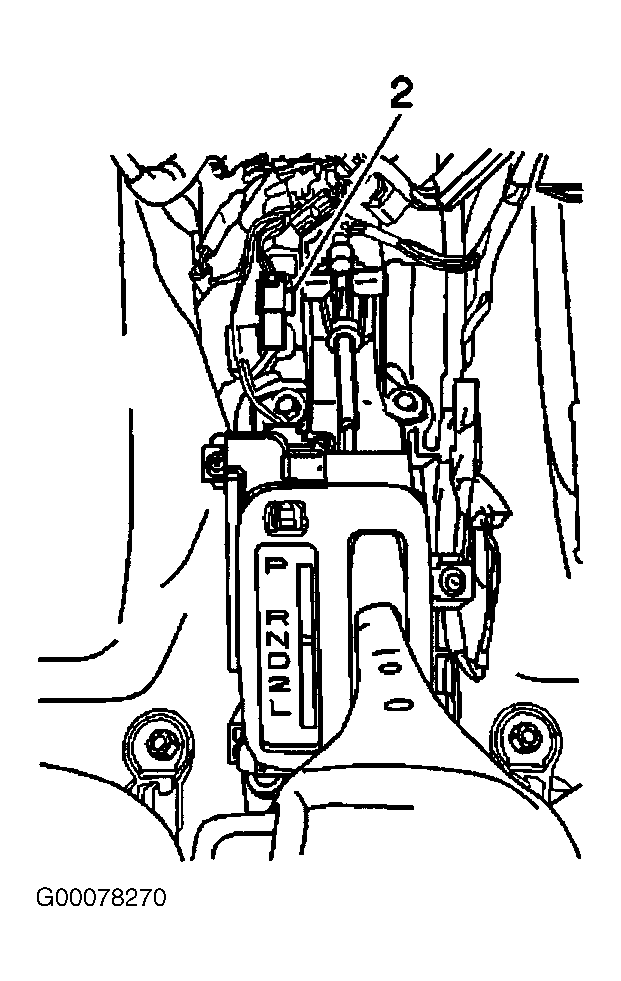

Fig 1: Removing & Installing Shift Lock Solenoid Harness Connector
G00078270Courtesy of GENERAL MOTORS CORP.

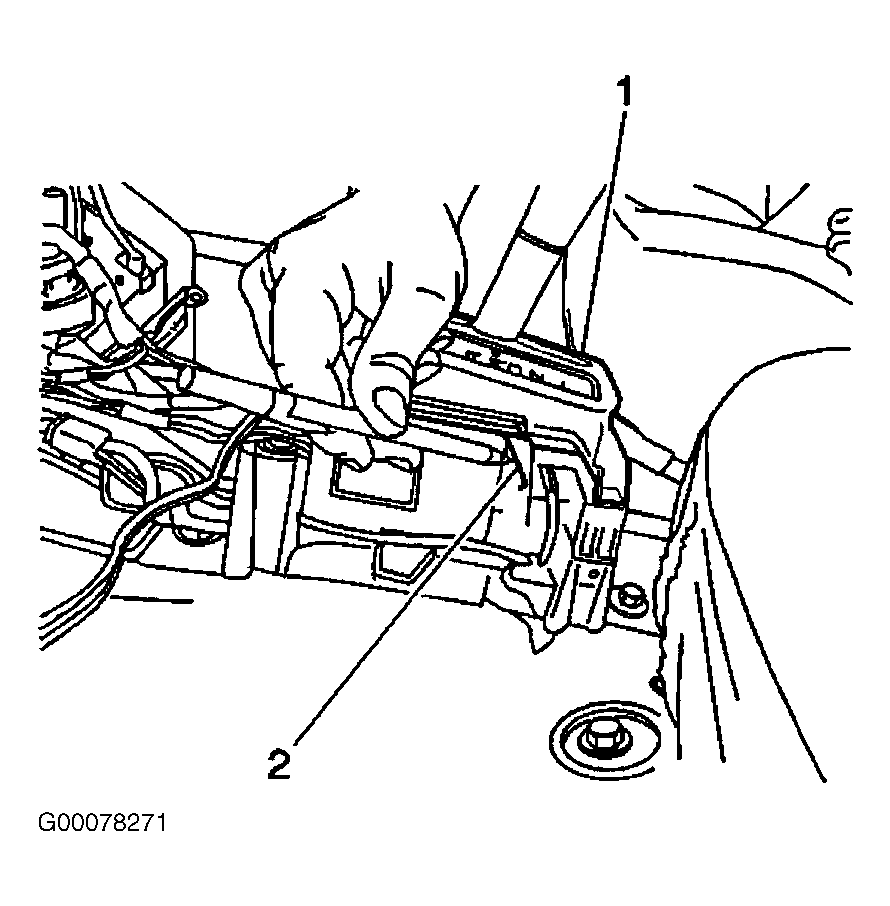

Fig 2: Removing & Installing Shift Lock Solenoid
G00078271Courtesy of GENERAL MOTORS CORP.
