Rear Floor Console: Installation

Install the floor rear console (1) to the vehicle. See Fig 3 . Lower the parking brake lever. Install the 2 bolts (1) to the rear compartment of the rear console. Tighten the floor rear console bolts to 11 INCH lbs. (15 N.m). See Fig 2 . Install the screw (3) to each side of the floor rear console (2) which secures the rear console to the front floor console (1). See Fig 1 .

Fig 1: Removing & Installing Rear Console Outer Fasteners

Courtesy of GENERAL MOTORS CORP.

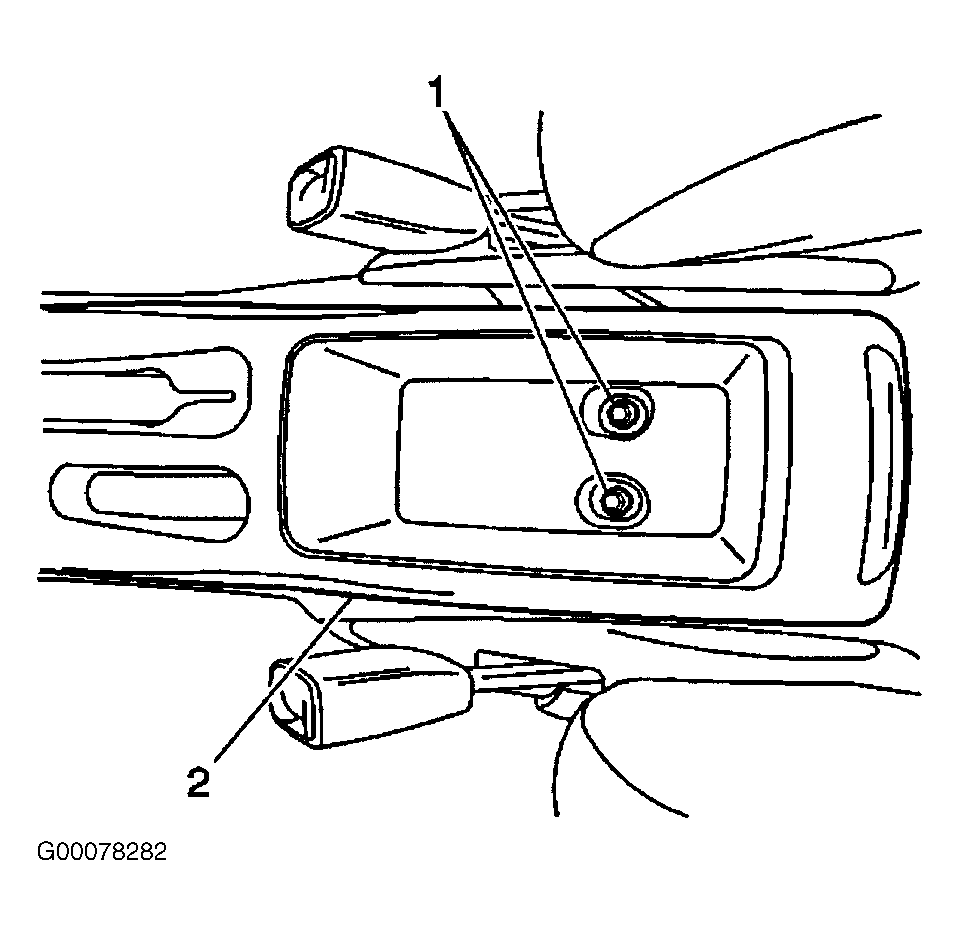

Fig 2: Removing & Installing Rear Console Inner Fasteners

Courtesy of GENERAL MOTORS CORP.

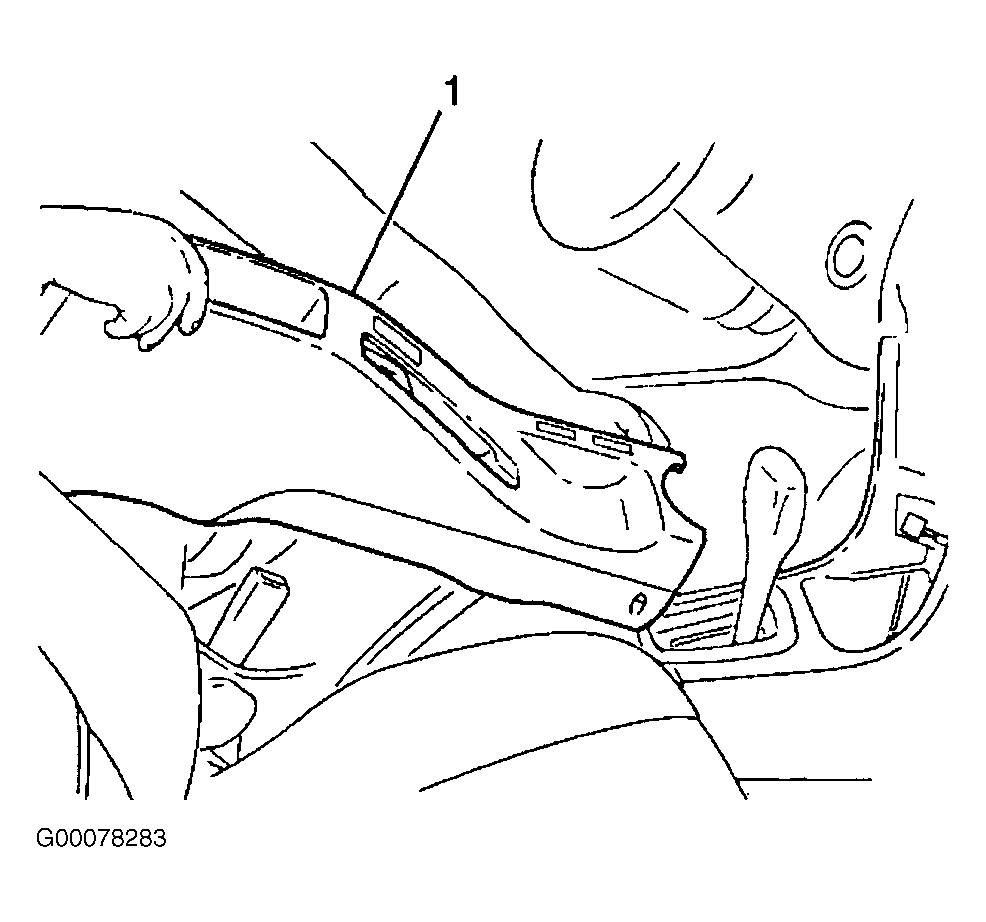

Fig 3: Removing & Installing Rear Console

Courtesy of GENERAL MOTORS CORP.
