Removal Procedure
CAUTION:
This vehicle is equipped with a Supplemental Inflatable Restraint (SIR) System. Failure to follow the correct procedure could cause the following conditions:
- Air bag deployment
- Personal injury
- Unnecessary SIR system repairs
- Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in order to determine if you are performing service on or near the SIR components or the SIR wiring.
- If you are performing service on or near the SIR components or the SIR wiring, disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
NOTE:
The front wheels of the vehicle must be maintained in the straight ahead position and the steering column must be in the LOCK position before disconnecting the steering column or intermediate shaft. Failure to follow these procedures will cause improper alignment of some components during installation and result in damage to the SIR coil assembly.
- Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
- Place the front wheels in the straight ahead position.
- Ensure the steering column is in the lock position.
- Remove the inflatable restraint steering wheel module. Refer to AIR BAG MODULES .
- Disconnect the horn electrical connector.
- If the vehicle is equipped with cruise control, disconnect the cruise control electrical connector.
- Remove the steering wheel retaining nut.
- Place matchmarks on the steering wheel and on the main shaft.NOTE: When removing the steering wheel, use only the specified steering wheel puller. Do not hammer on the end of the steering column shaft. Hammering could loosen the plastic injections which maintain the steering column rigidity.

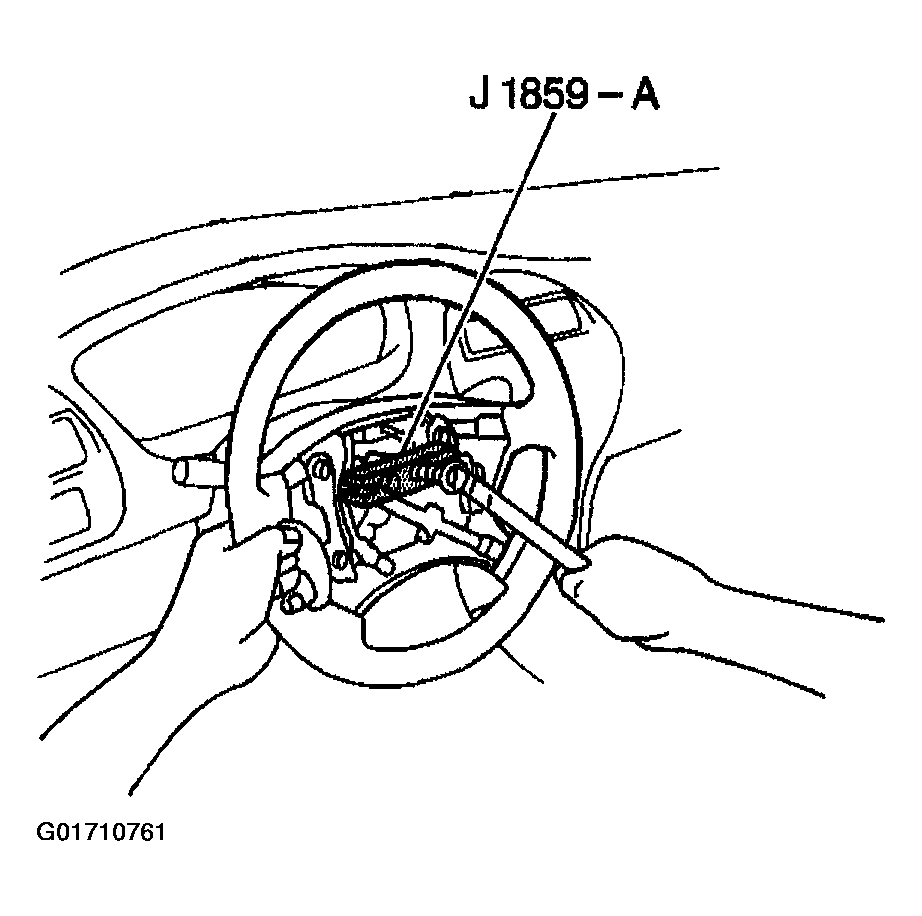

- Remove the steering wheel using the J 1859-A.
