Horns Component Views
Horns Component Views

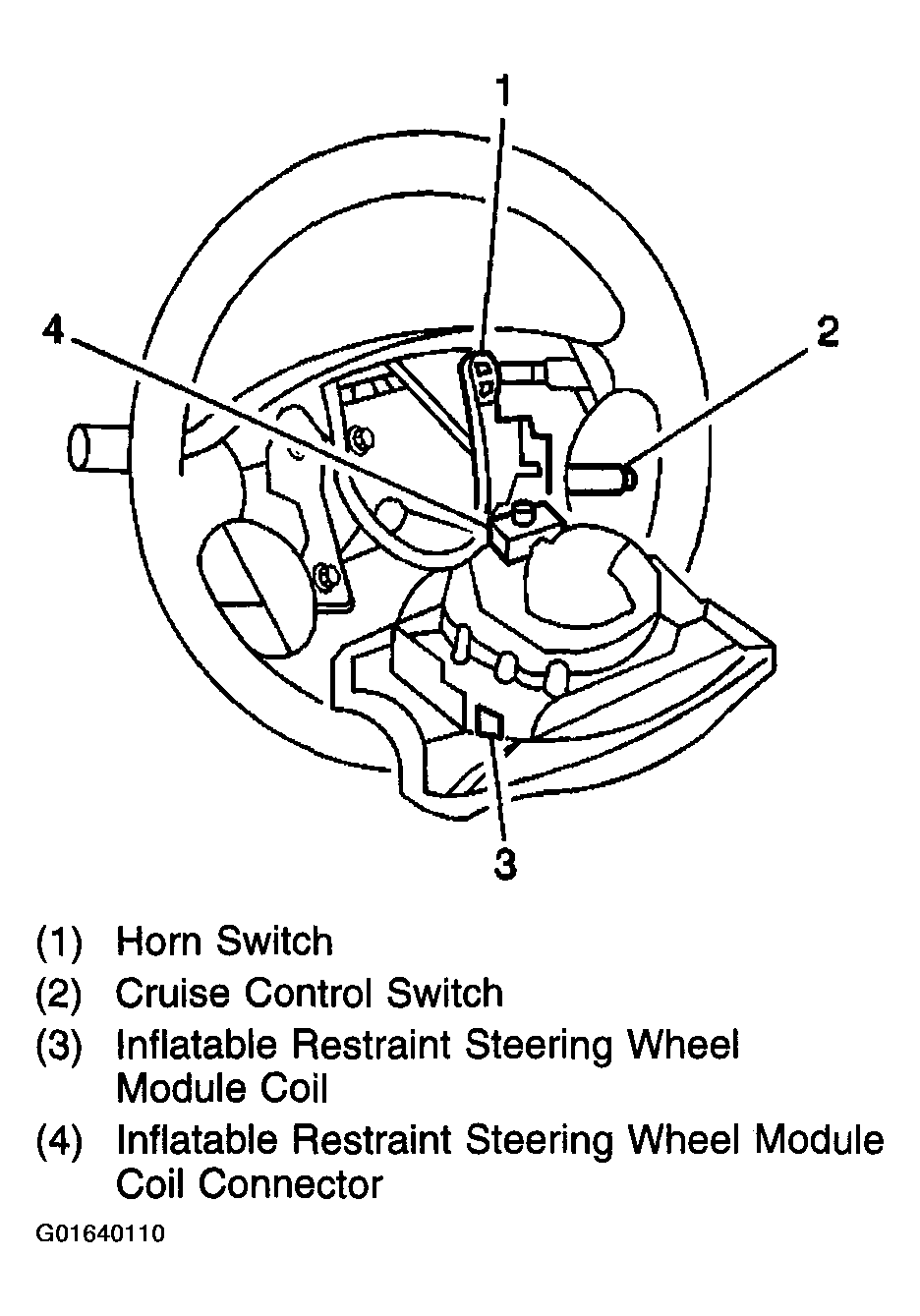

Fig 1: Steering Column Wiring
Courtesy of GENERAL MOTORS CORP.

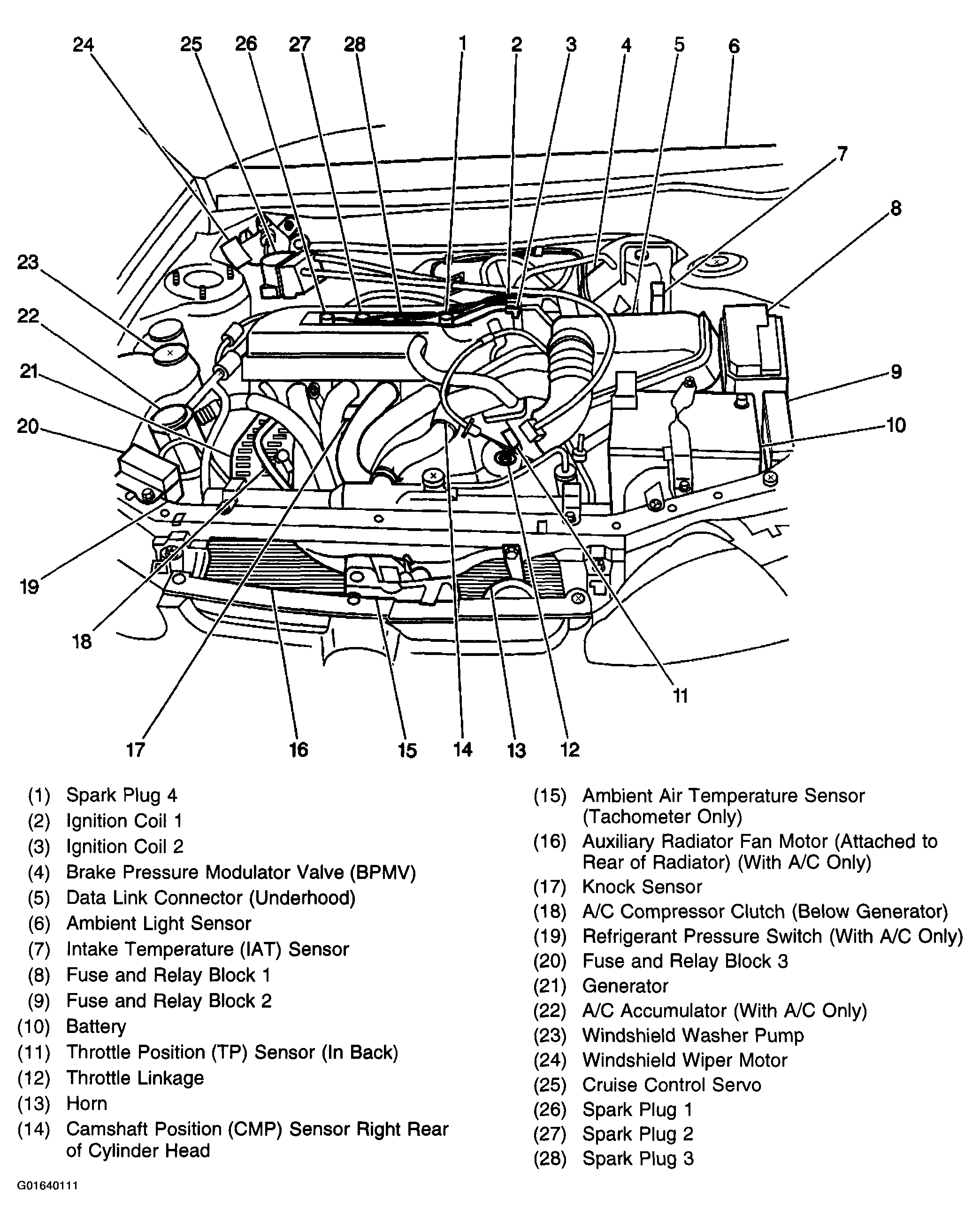

Fig 2: Engine Compartment View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
