Cruise Control Module Connector End View

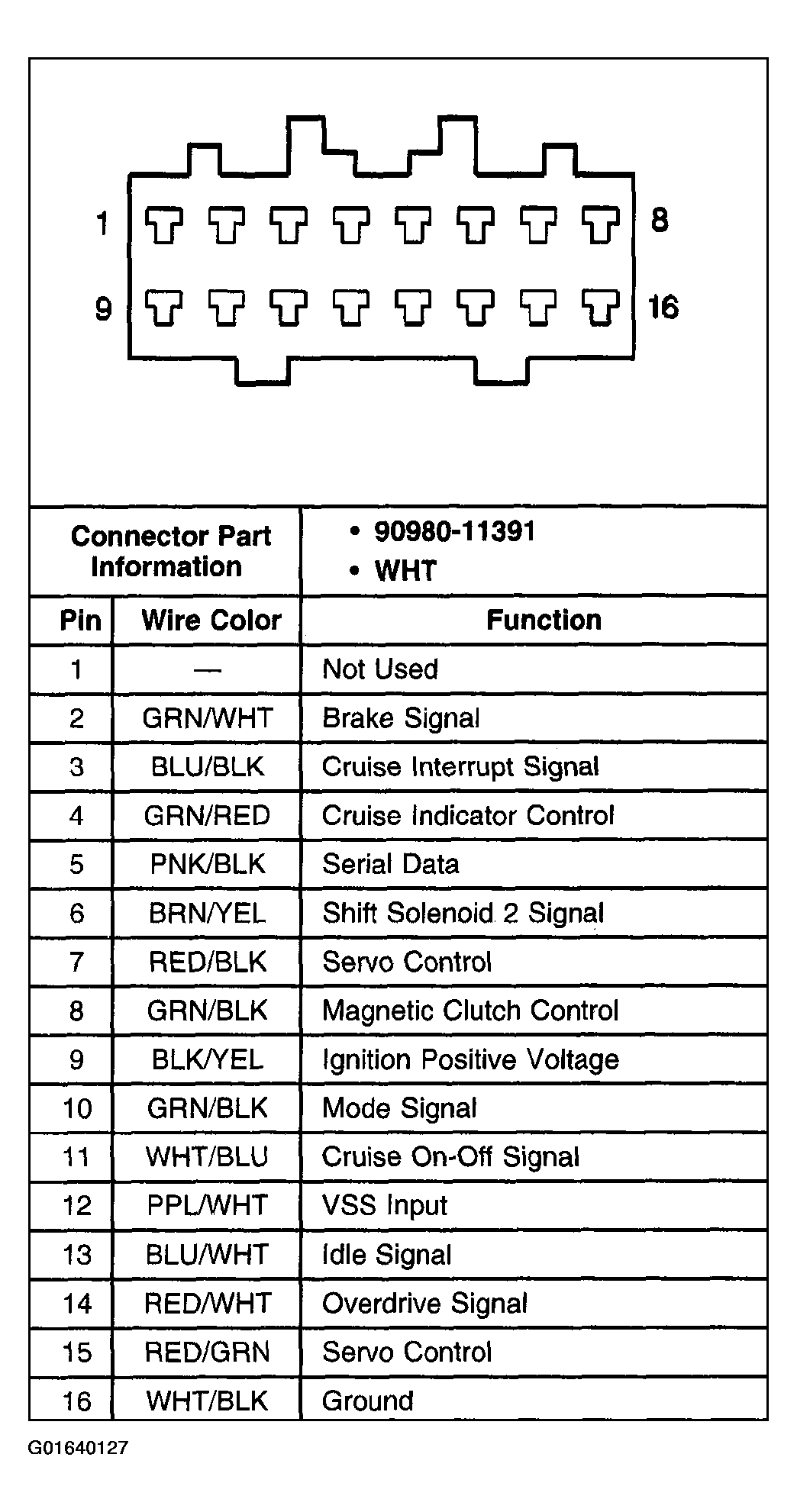

Fig 1: Cruise Control Module

G01640127

Courtesy of GENERAL MOTORS CORP.
