A/C Compressor Control Module Connector End View

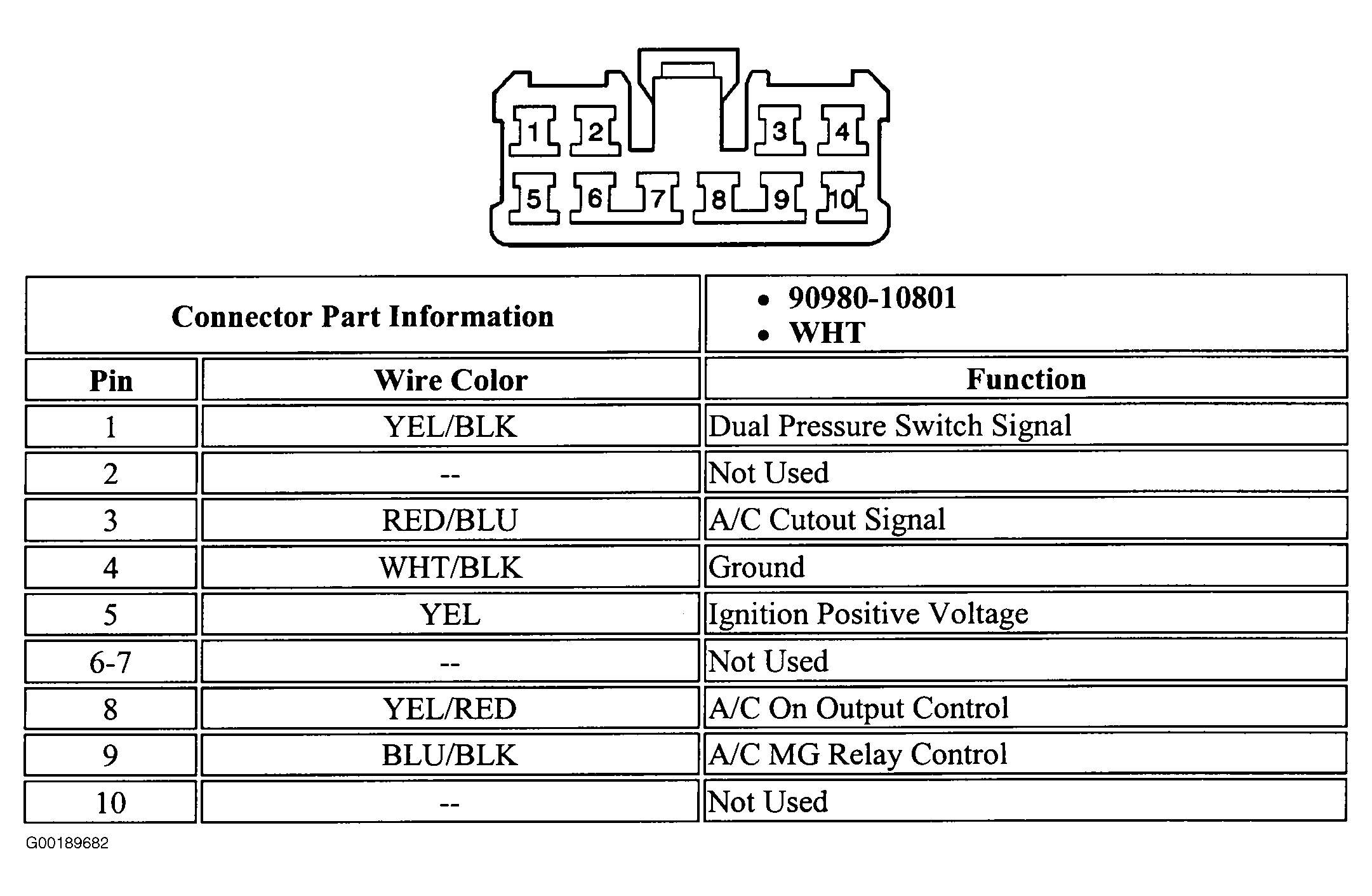

Fig 1: A/C Compressor Control Module

G00189682

Courtesy of GENERAL MOTORS CORP.
