Component Locator
>>
Cruise Control Connector End Views
Cruise Control Connector End Views
Fig 1: Cruise Control Module
Courtesy of GENERAL MOTORS CORP.

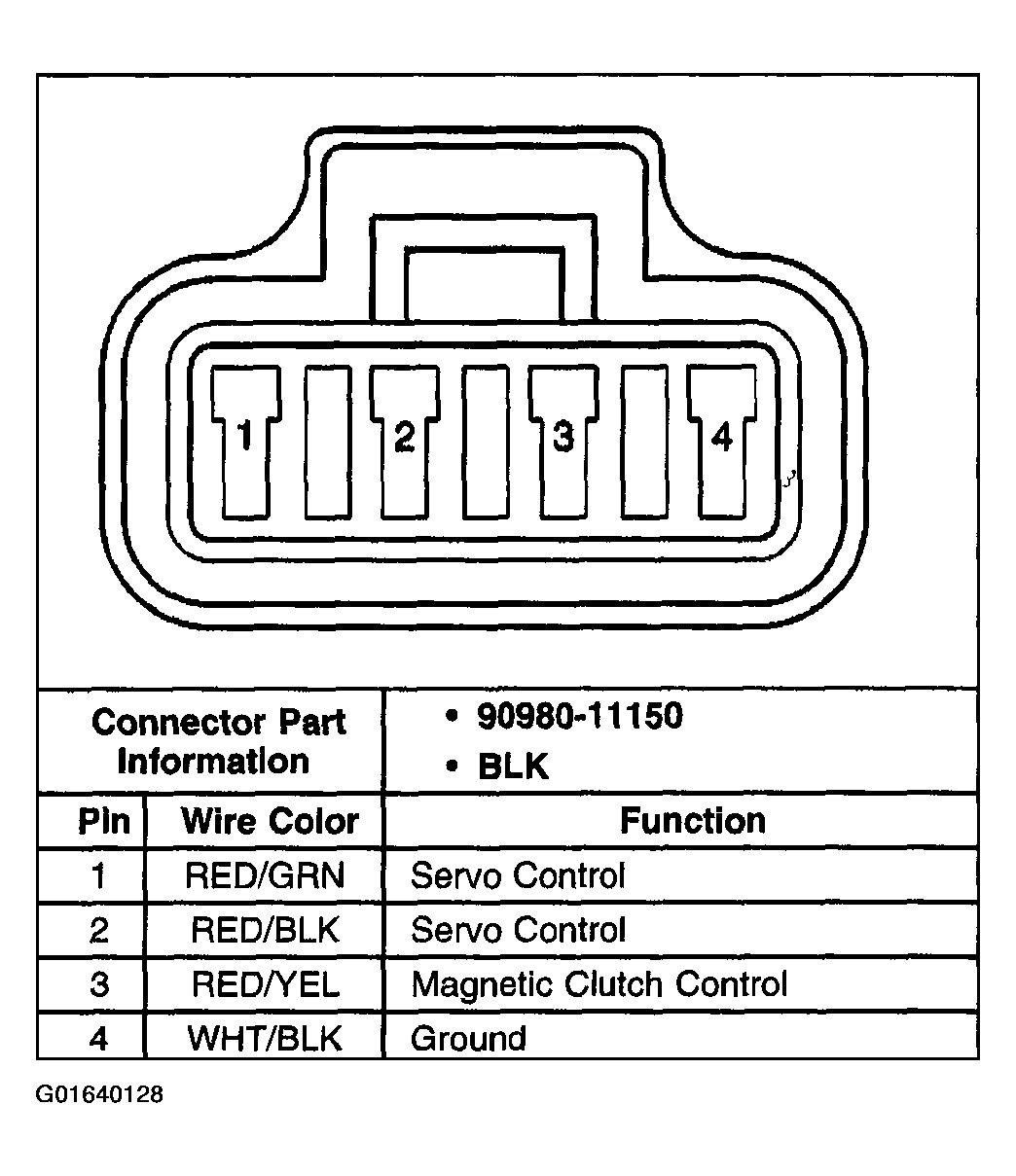

Fig 2: Cruise Control Servo
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
