Removal Procedure

  1. Turn the Ignition switch to the OFF position.
  2. Remove the 2 BPMV mounting bracket nuts (3) and one bolt located near the bottom and one nut (1) located at the top of the BPMV mounting bracket (4) to the strut tower.
  3. Disconnect the ground strap between the EBCM assembly and the chassis.
  4. Remove the BPMV mounting bracket (4) from the vehicle.
  5. Remove BPMV and EBCM assembly (2) from the BPMV mounting bracket (4).

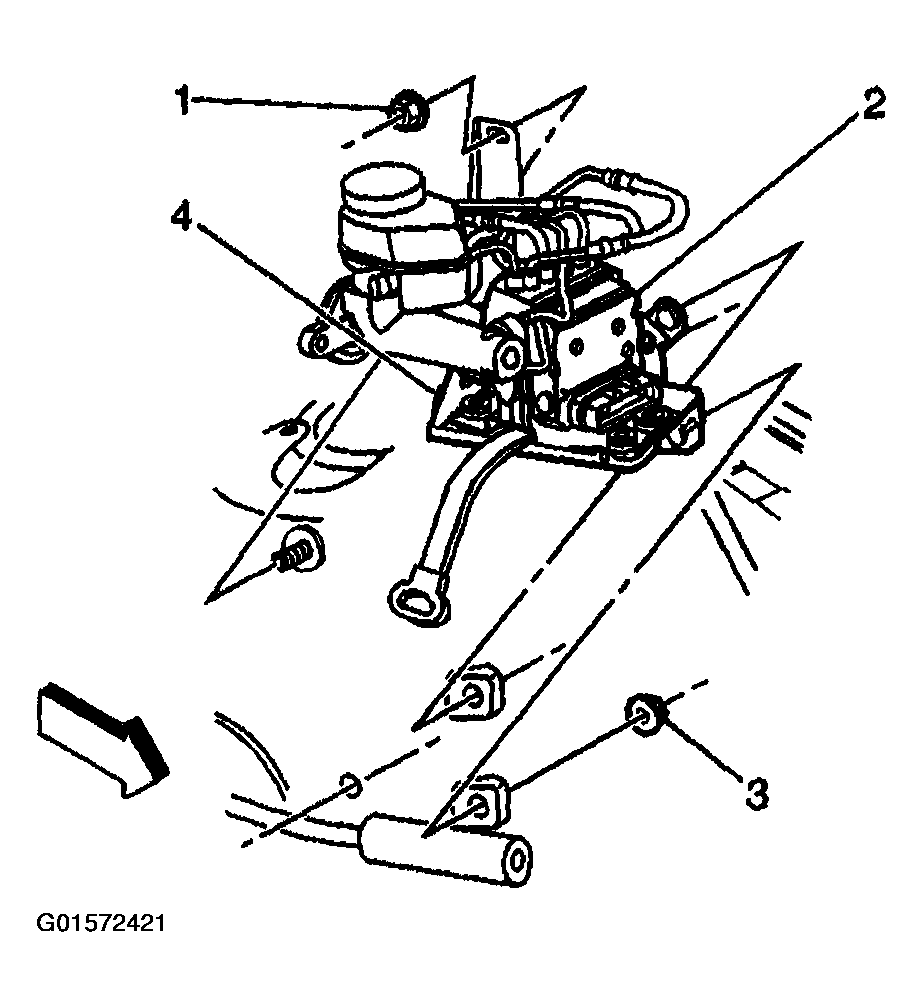

    Fig 1: BPMV & EBCM Assembly
    G01572421Courtesy of GENERAL MOTORS CORP.
