Transaxle Mount Assembly (Rear): Installation

1. Install the mount. Install the mount bolts and tighten to specification. See TORQUE SPECIFICATIONS .
2. Install the mount-through bolt. See Fig 2. Tighten the bolt to specification. See TORQUE SPECIFICATIONS .
3. Install the front fender liner. See Fig 1. Install the left front wheel. Lower the vehicle.

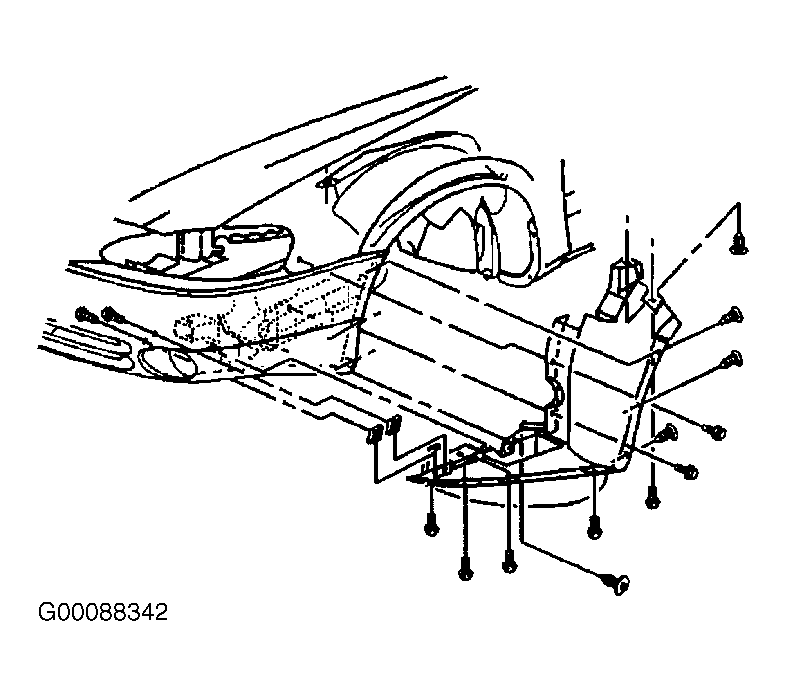

Fig 1: Removal & Installing Left Front Fender Liner

Courtesy of GENERAL MOTORS CORP.

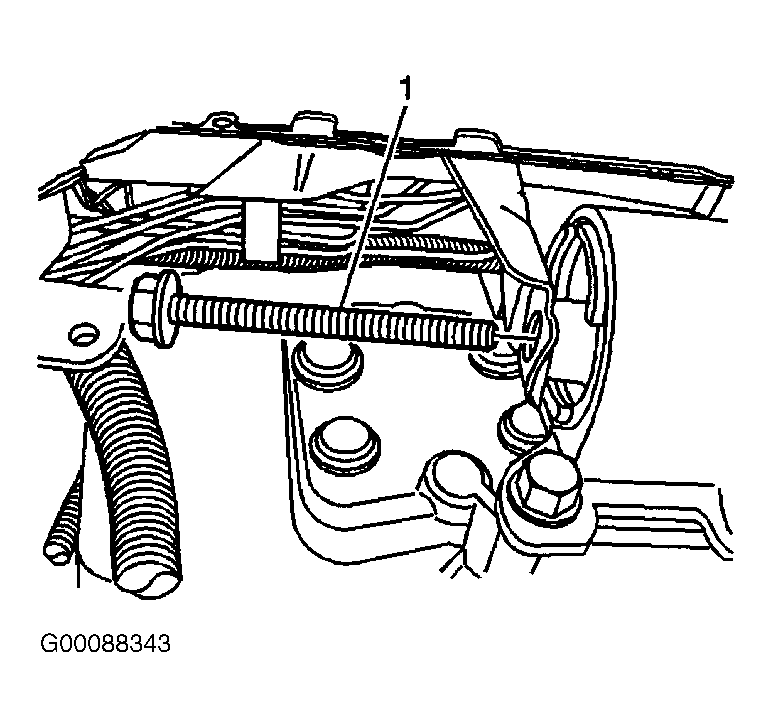

Fig 2: Removing & Installing Through Bolts

Courtesy of GENERAL MOTORS CORP.
