Removal Procedure

  1. Remove the trim panel from the lower center pillar. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR .
  2. Remove the anchor bolt from the front seat belt.

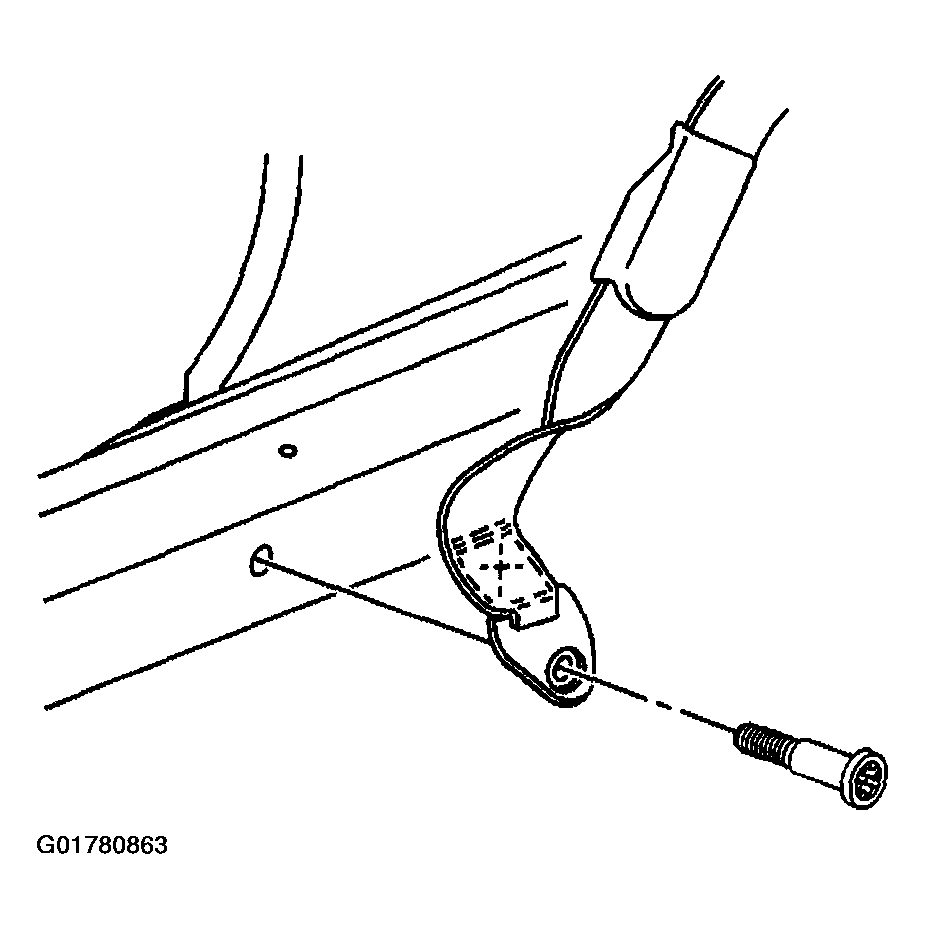

    Fig 1: Removing Front seat Belt Anchor Bolt
    G01780863Courtesy of GENERAL MOTORS CORP.
  3. Remove the shoulder belt guide cover.
  4. Remove the shoulder belt guide bolt.
  5. Remove the shoulder belt guide.

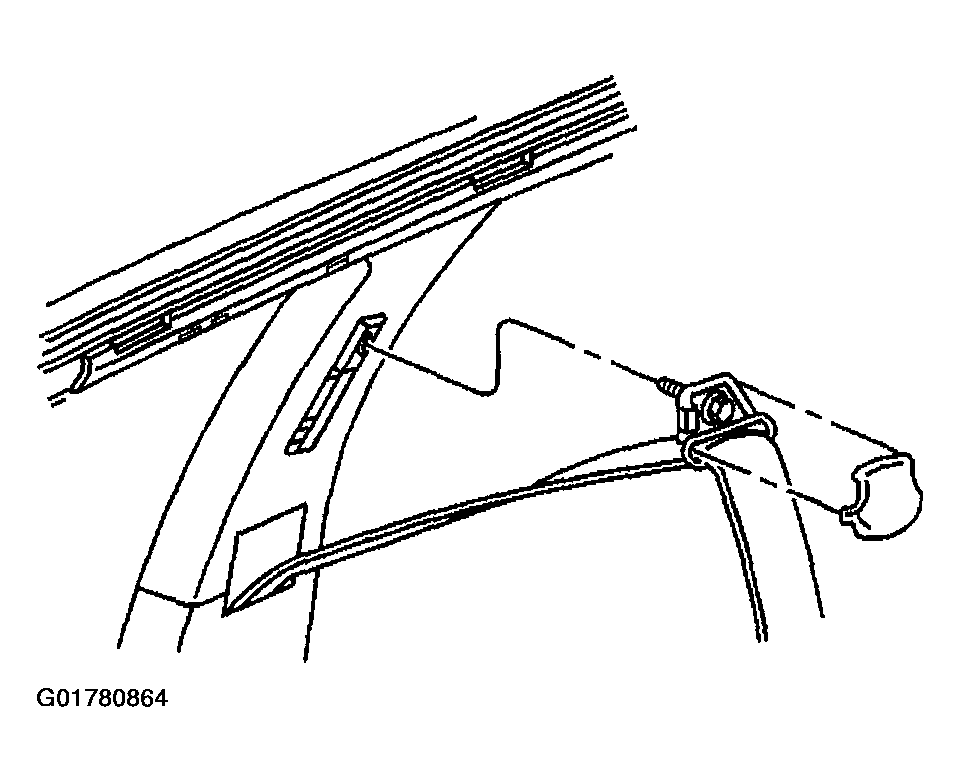

    Fig 2: Removing Shoulder Belt Guide
    G01780864Courtesy of GENERAL MOTORS CORP.
  6. Remove the seat belt guide clip. Squeeze the guide clip from both sides in order to release the retainers.

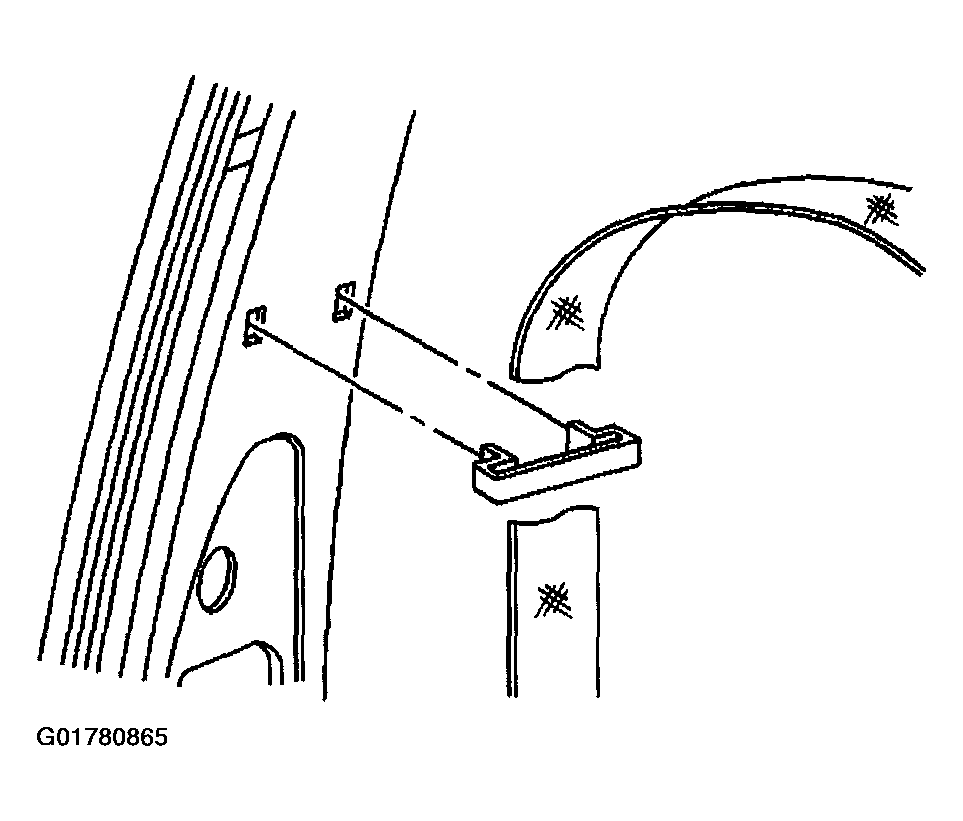

    Fig 3: Removing Seat Belt Guide Clip
    G01780865Courtesy of GENERAL MOTORS CORP.
  7. Remove the seat belt retractor bolt.
  8. Pull the retractor upward in order to disengage the retractor.

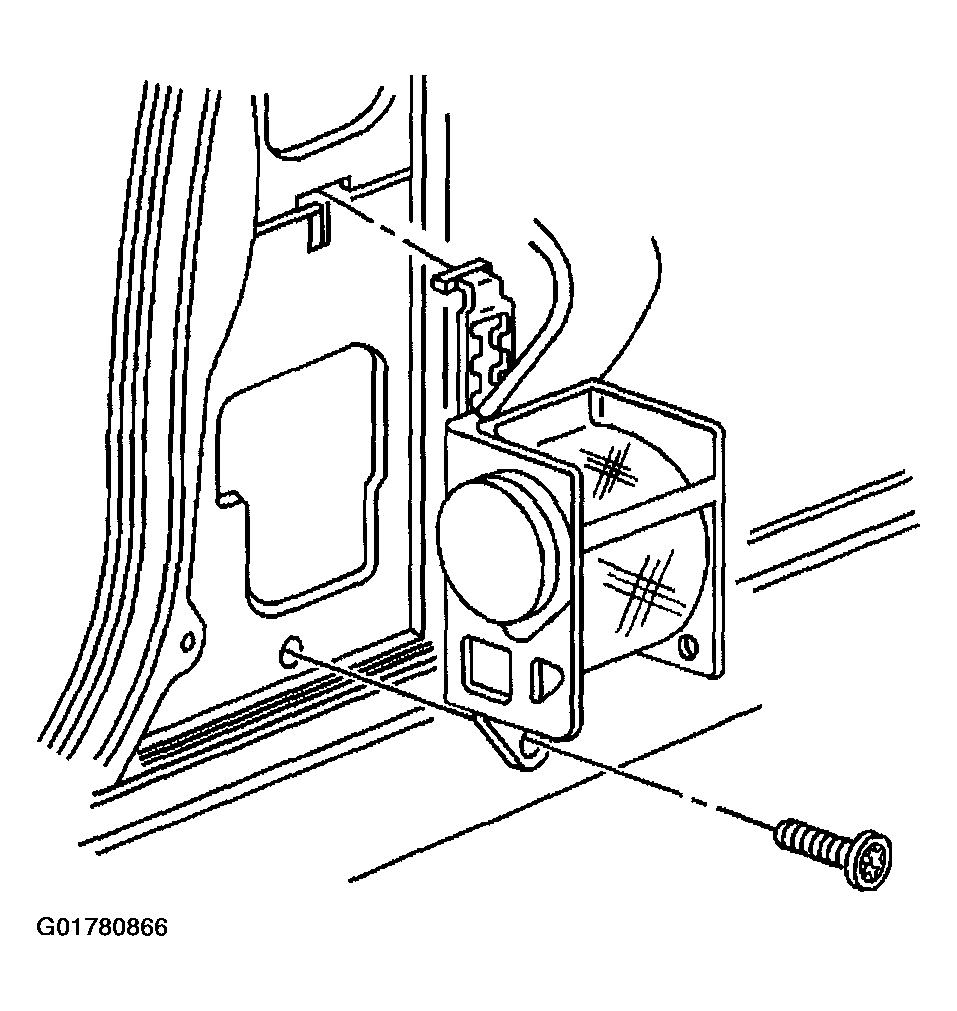

    Fig 4: Removing Seat Belt Retractor
    G01780866Courtesy of GENERAL MOTORS CORP.
  9. Remove the seat belt retractor assembly.

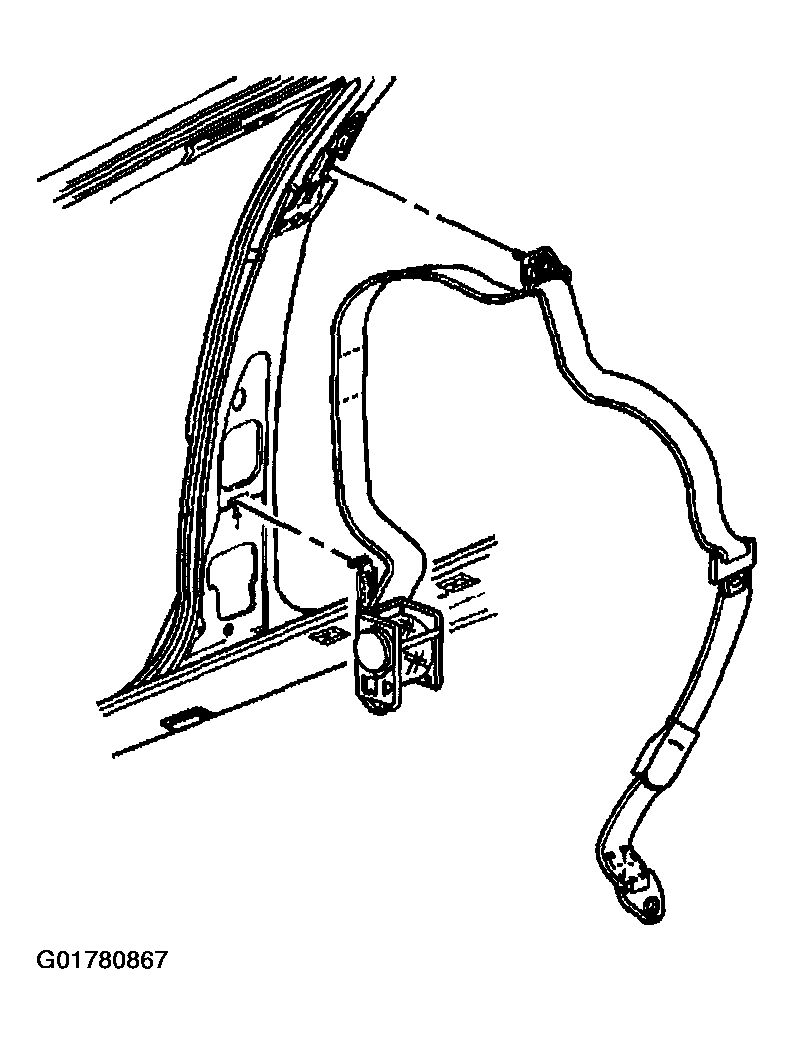

    Fig 5: Removing Seat Belt Retractor Assembly
    G01780867Courtesy of GENERAL MOTORS CORP.
