Removal Procedure

  1. Position the driver seat back in order to access seat belt side buckle bolt.
  2. Remove the seat belt buckle bolt (2).
  3. Remove the seat belt buckle (1) from the seat track.

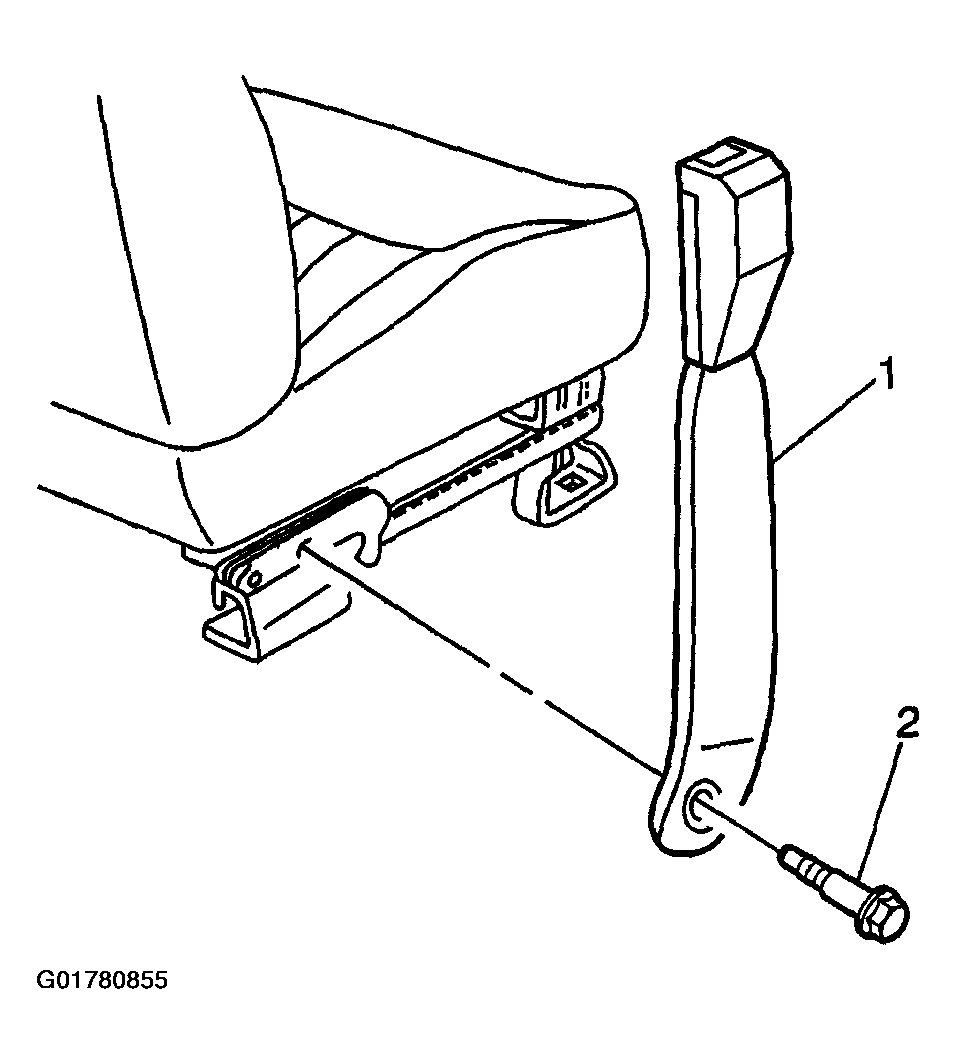

    Fig 1: Removing Seat Belt Buckle
    G01780855Courtesy of GENERAL MOTORS CORP.
