Removal Procedure

  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .

    If equipped with a split folding rear seat back refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING .

  3. Remove the bolts from the child seat latch bracket.
  4. Remove the child seat latch bracket from the vehicle.

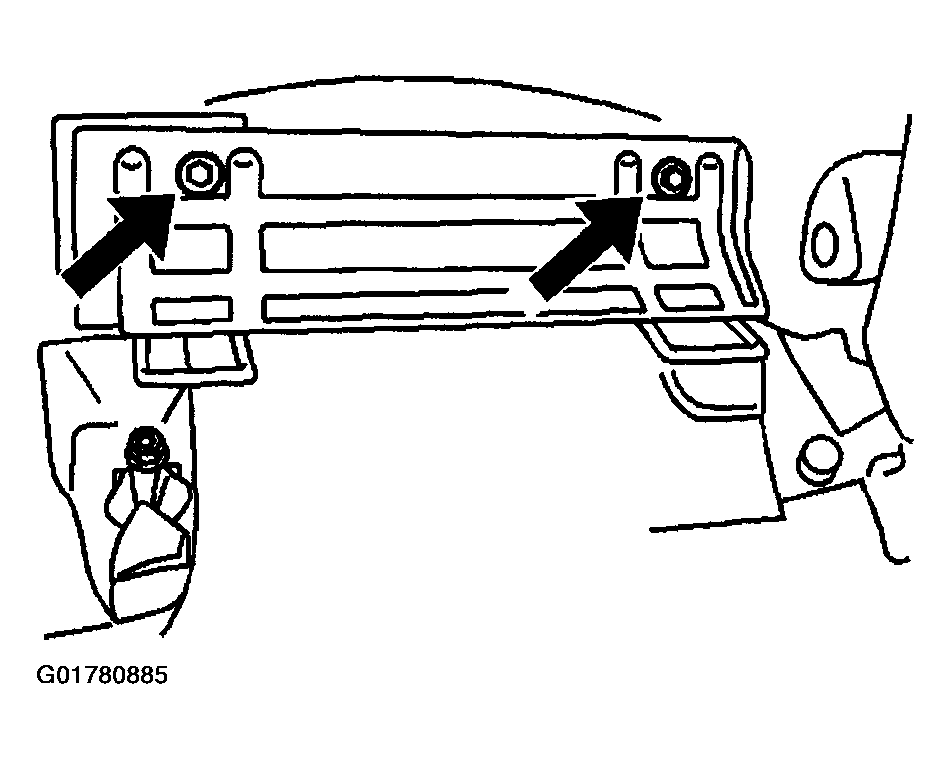

    Fig 1: Locating Child Seat Latch Bracket Bolts
    G01780885Courtesy of GENERAL MOTORS CORP.
