Installation Procedure

  1. Position the child seat latch bracket in the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts to the child seat latch bracket.

    Tighten

    Tighten the bolts to 42 N.m (31 lb ft).

  3. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .

    If equipped with a split folding rear seat back refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING .

  4. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .

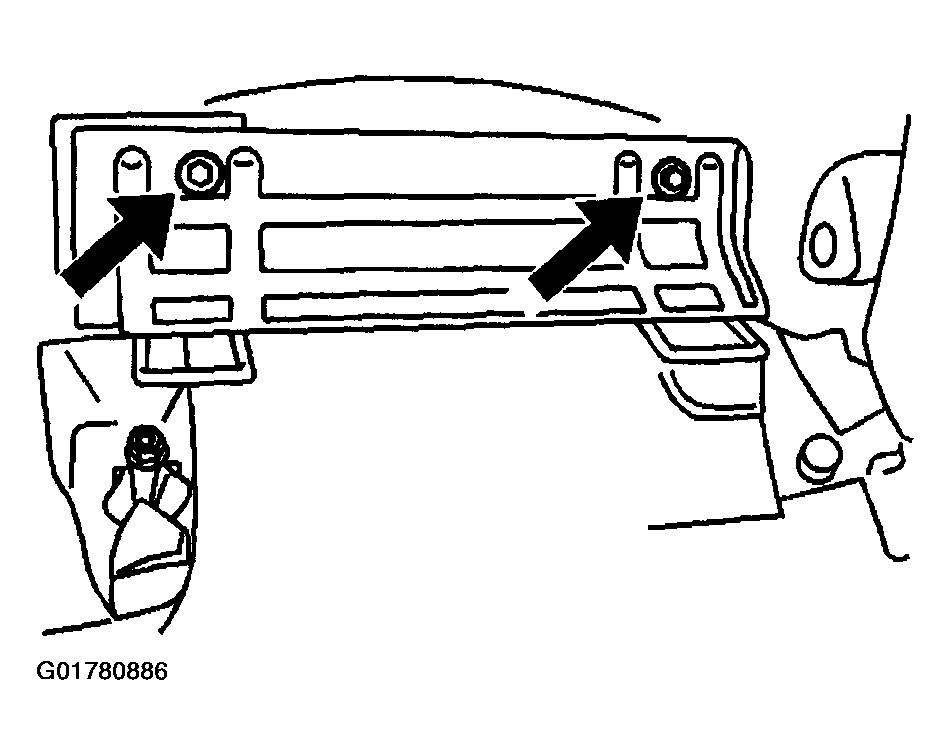

    Fig 1: Locating Child Seat Latch Bracket Bolts
    G01780886Courtesy of GENERAL MOTORS CORP.
