Installation Procedure

  1. Install the exhaust manifold gasket.
  2. Install the exhaust manifold.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the exhaust manifold nuts.

    Tighten

    Tighten the exhaust manifold nuts to 16 N.m (12 lb ft).

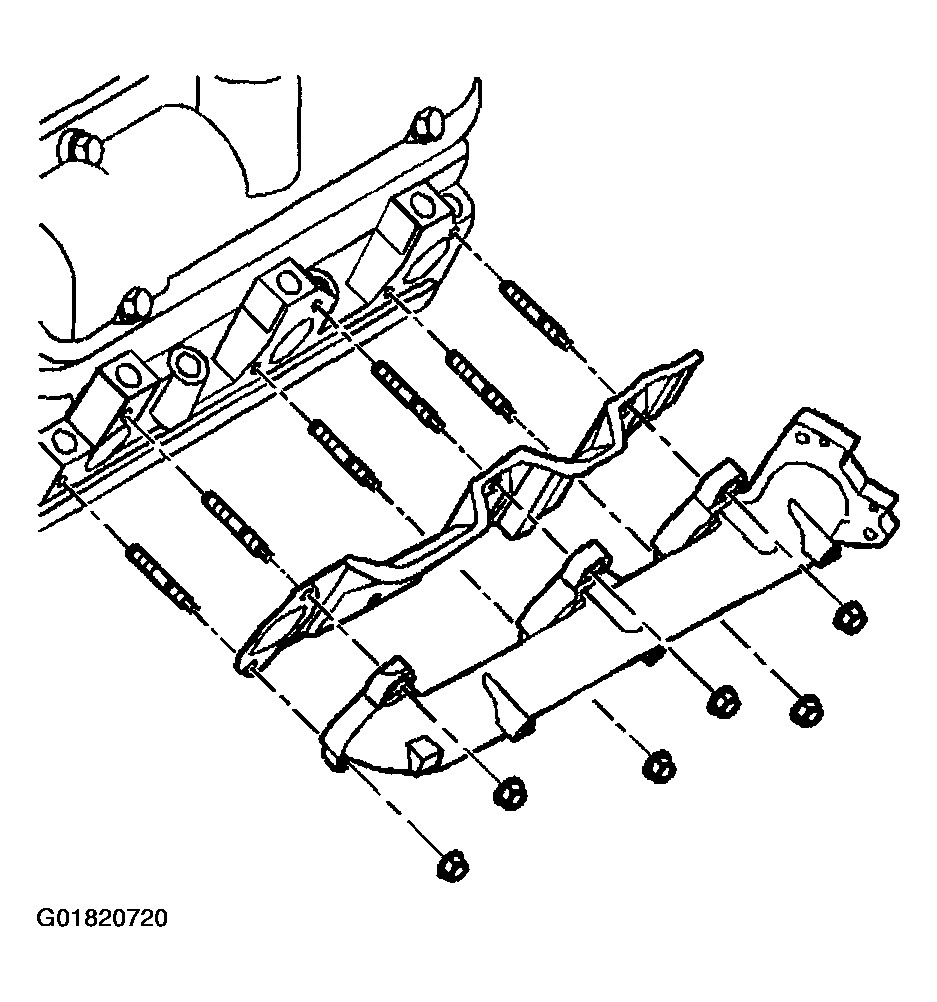

    Fig 1: Installing Exhaust Manifold & Gasket
    G01820720Courtesy of GENERAL MOTORS CORP.
  4. Install the exhaust manifold heat shield.
  5. Install the exhaust manifold heat shield bolts.

    Tighten

    Tighten the exhaust manifold heat shield bolts to 10 N.m (89 lb in).

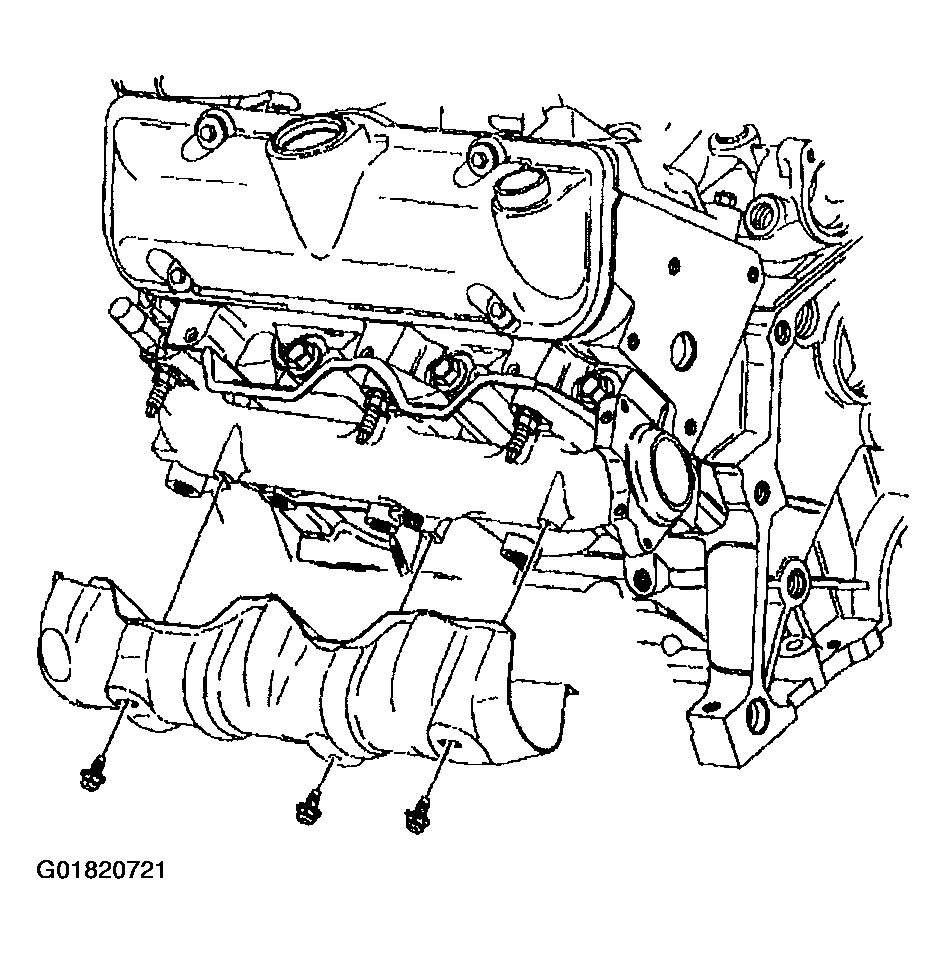

    Fig 2: Installing Exhaust Manifold Heat Shield
    G01820721Courtesy of GENERAL MOTORS CORP.
  6. Install the crossover pipe. Refer to Exhaust Crossover Pipe Replacement  .

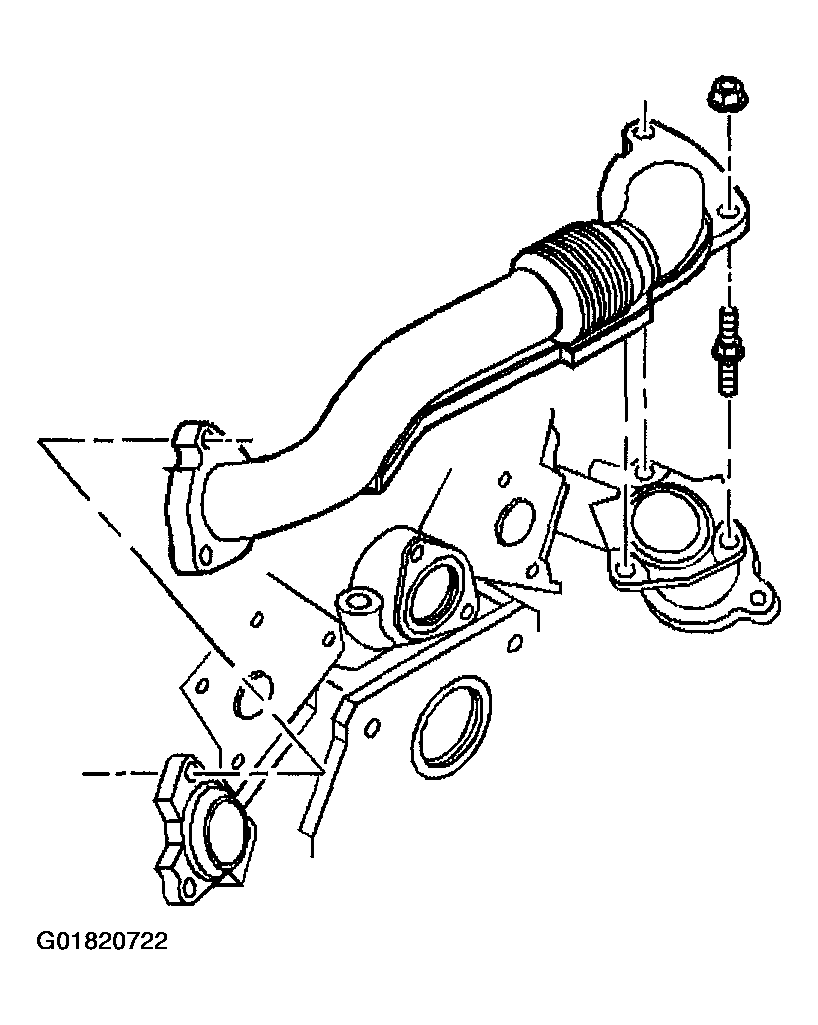

    Fig 3: Installing Crossover Pipe
    G01820722Courtesy of GENERAL MOTORS CORP.
