Removal Procedure

  1. Remove the air cleaner assembly.
  2. Remove thermostat by-pass pipe assembly. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT in Engine-Engine Cooling.
  3. Remove the exhaust crossover pip heat shield bolts.
  4. Remove the crossover pipe heat shield.

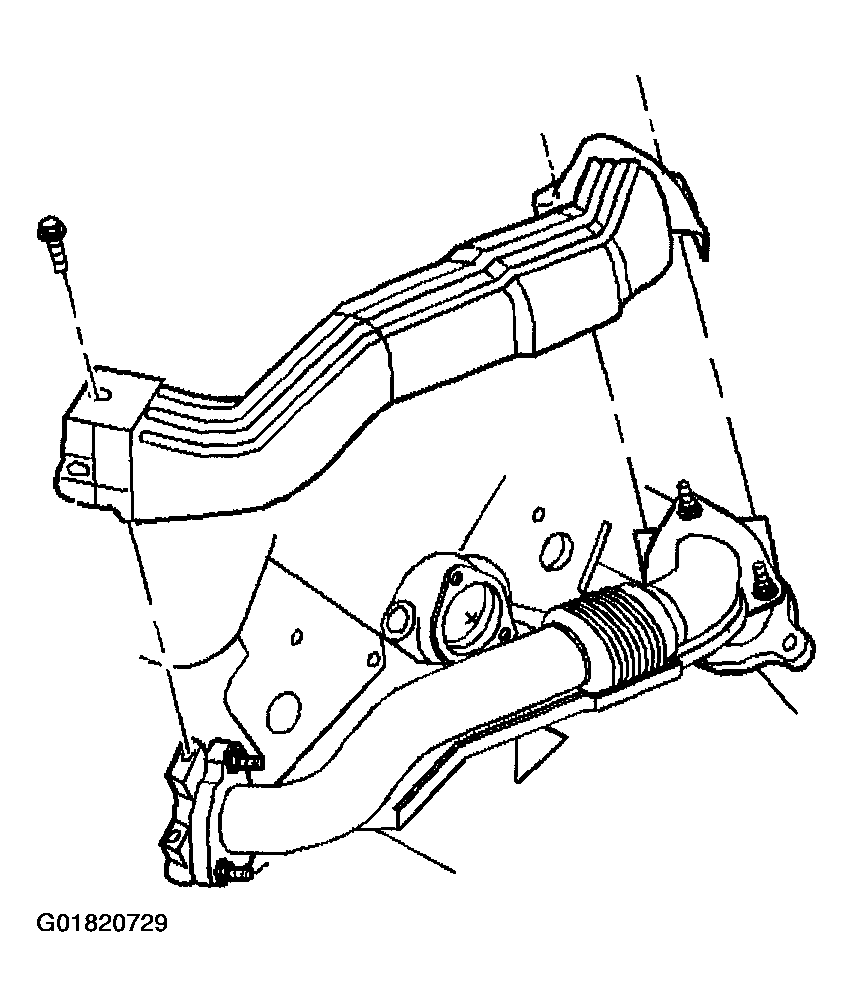

    Fig 1: Removing Exhaust Crossover Pipe Heat Shield
    G01820729Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust crossover pipe bolts.
  6. Remove the exhaust crossover pipe.

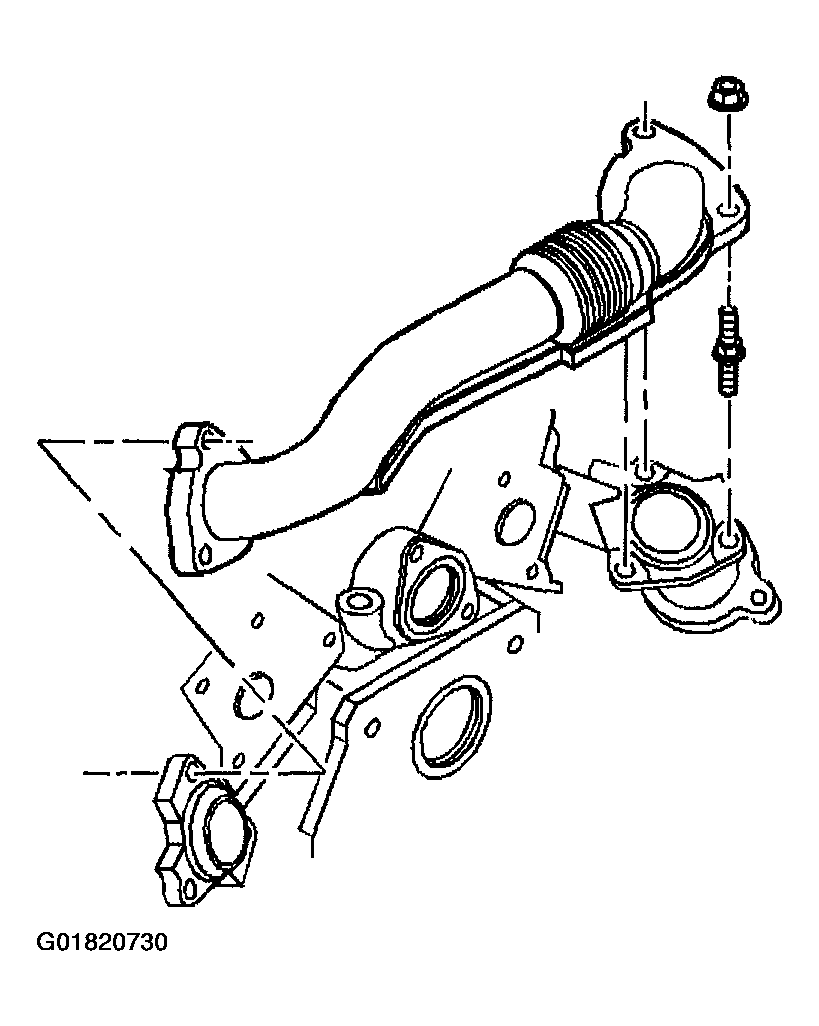

    Fig 2: Removing Exhaust Crossover Pipe
    G01820730Courtesy of GENERAL MOTORS CORP.
