Horns Connector End Views

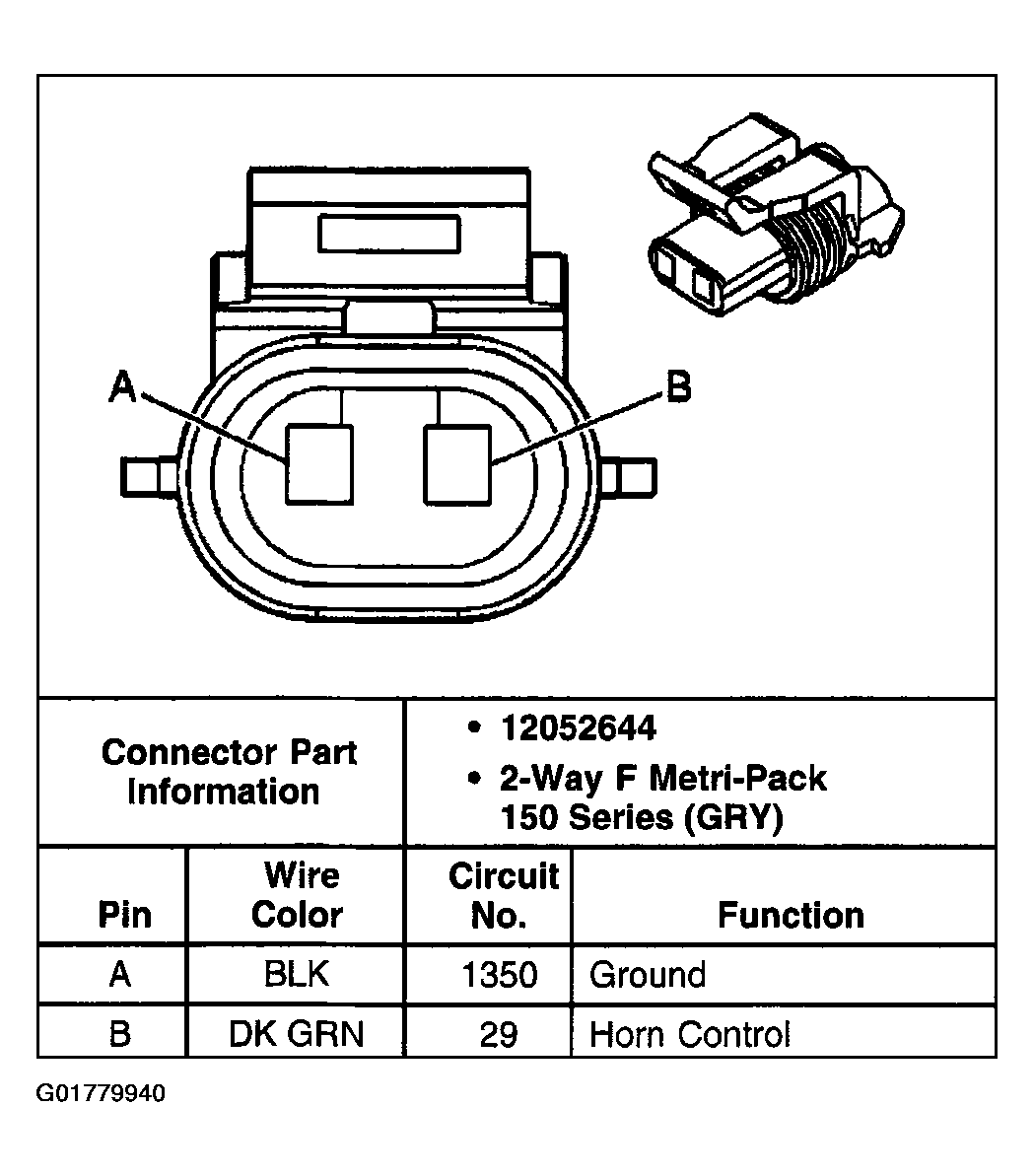

Fig 1: Identifying Horn Assembly Connector End View
G01779940Courtesy of GENERAL MOTORS CORP.
