Instrument Panel Cluster Connector End View

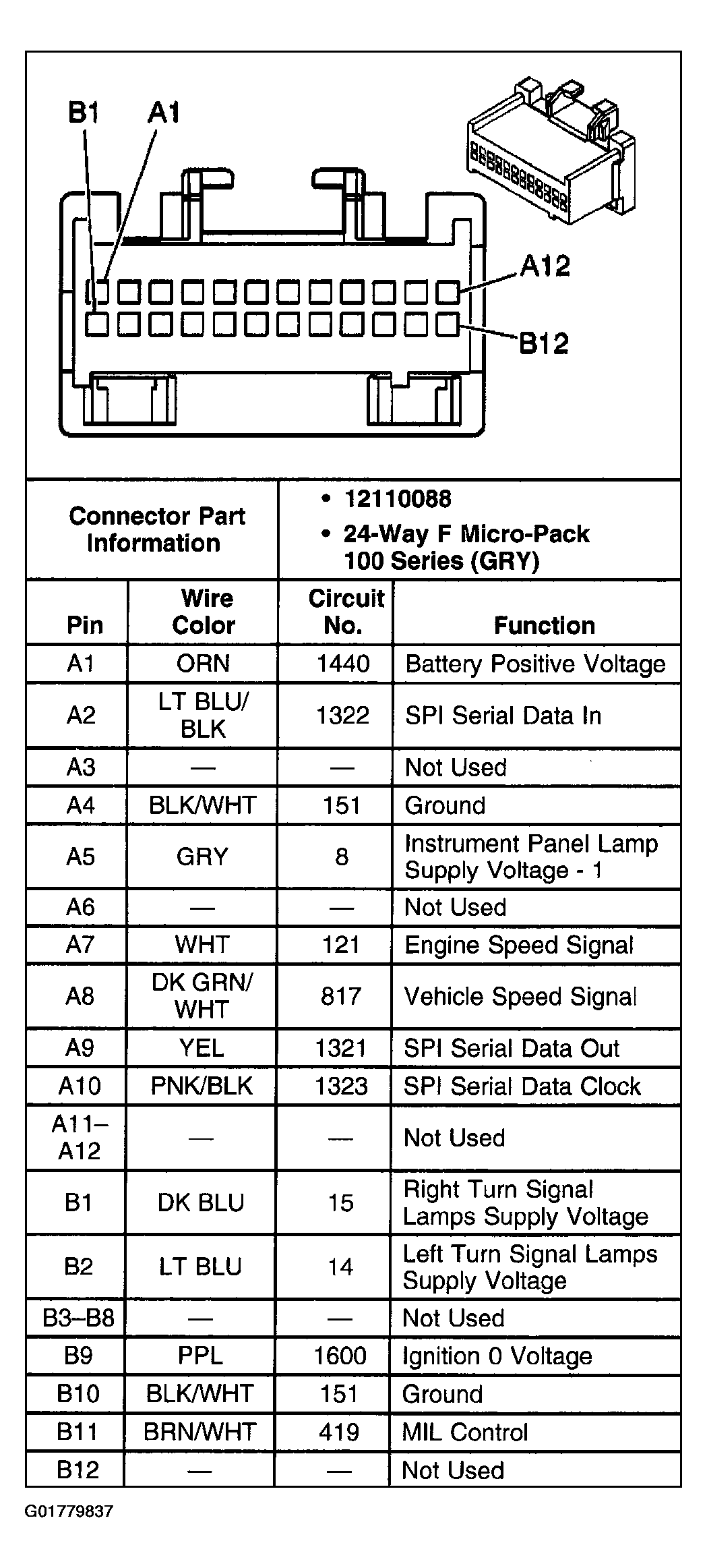

Fig 1: Instrument Panel Cluster

G01779837

Courtesy of GENERAL MOTORS CORP.
