Installation Procedure

  1. Install the door auxiliary sealing strip (1) to the door frame. Ensure that the fasteners lock into position.
  2. Install the outer belt sealing strip.

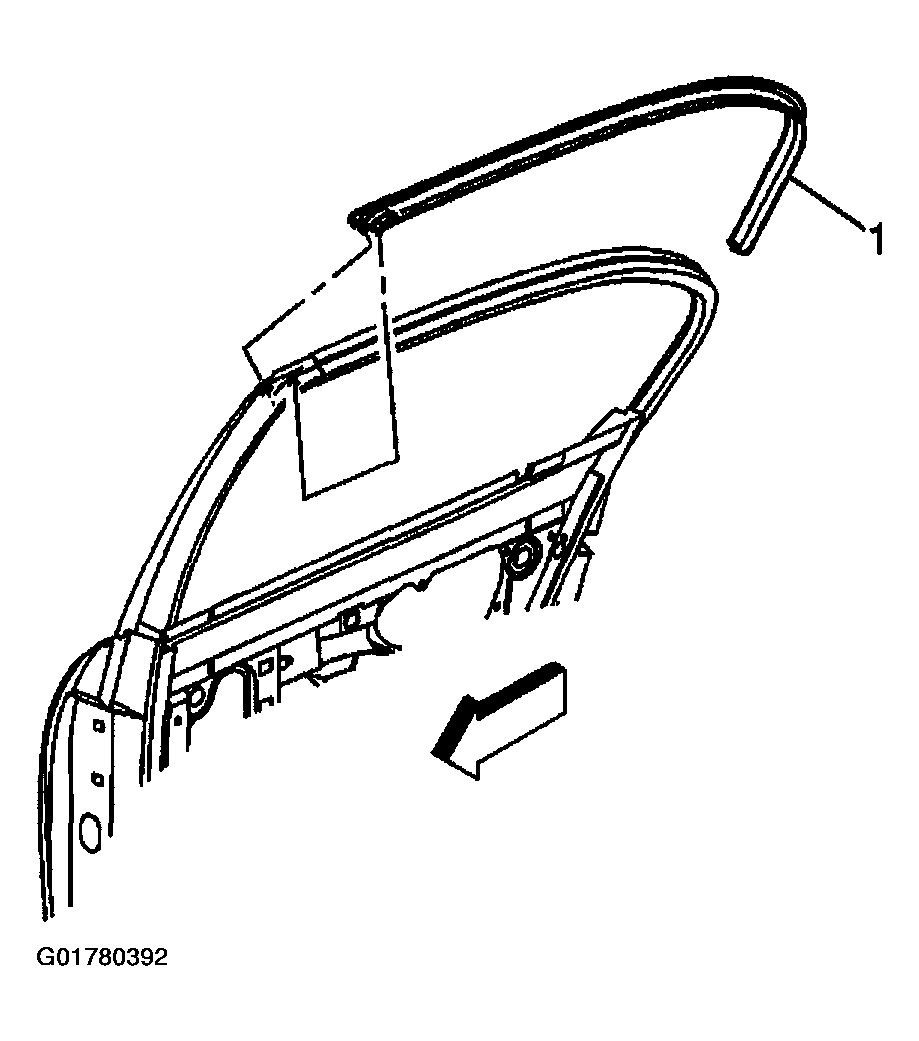

    Fig 1: Installing Front Door Lower Auxiliary Sealing Strip
    G01780392Courtesy of GENERAL MOTORS CORP.
