Installation Procedure

  1. Position the seat back to the seat back recliner.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat back recliner bolts.

    Tighten

    Tighten the bolts to 24 N.m (18 lb ft).

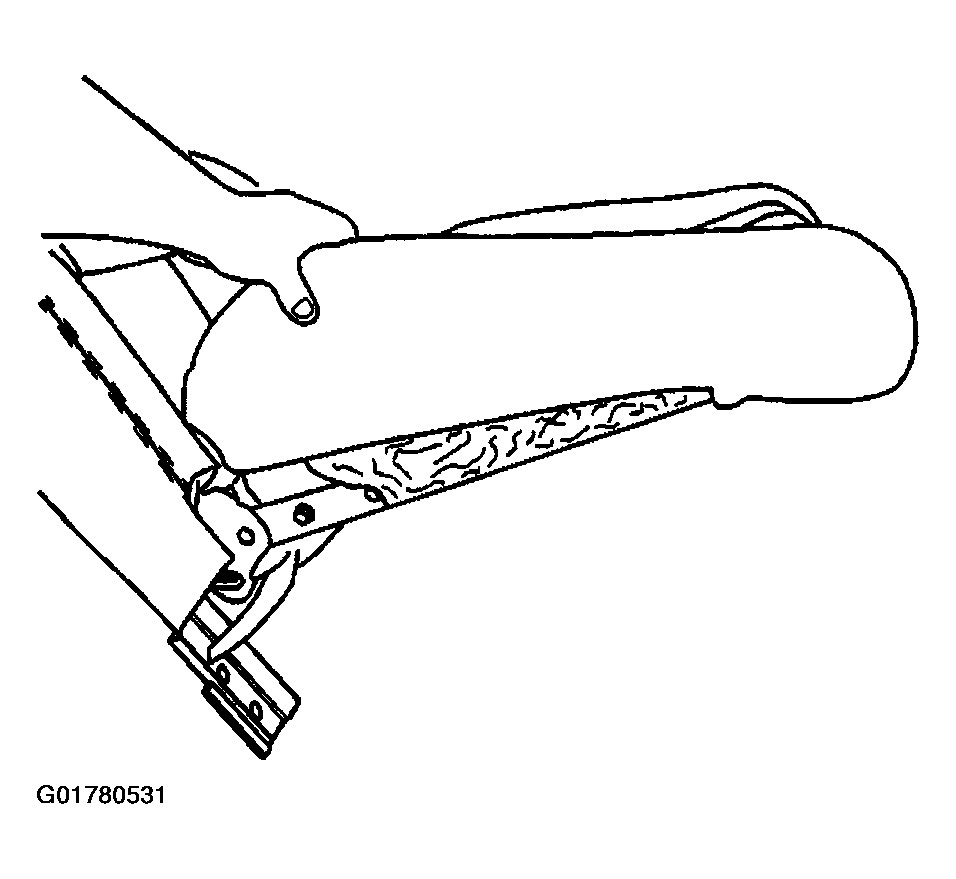

    Fig 1: Installing Seat Back
    G01780531Courtesy of GENERAL MOTORS CORP.
  3. Reposition the seat back cover to a desired appearance.

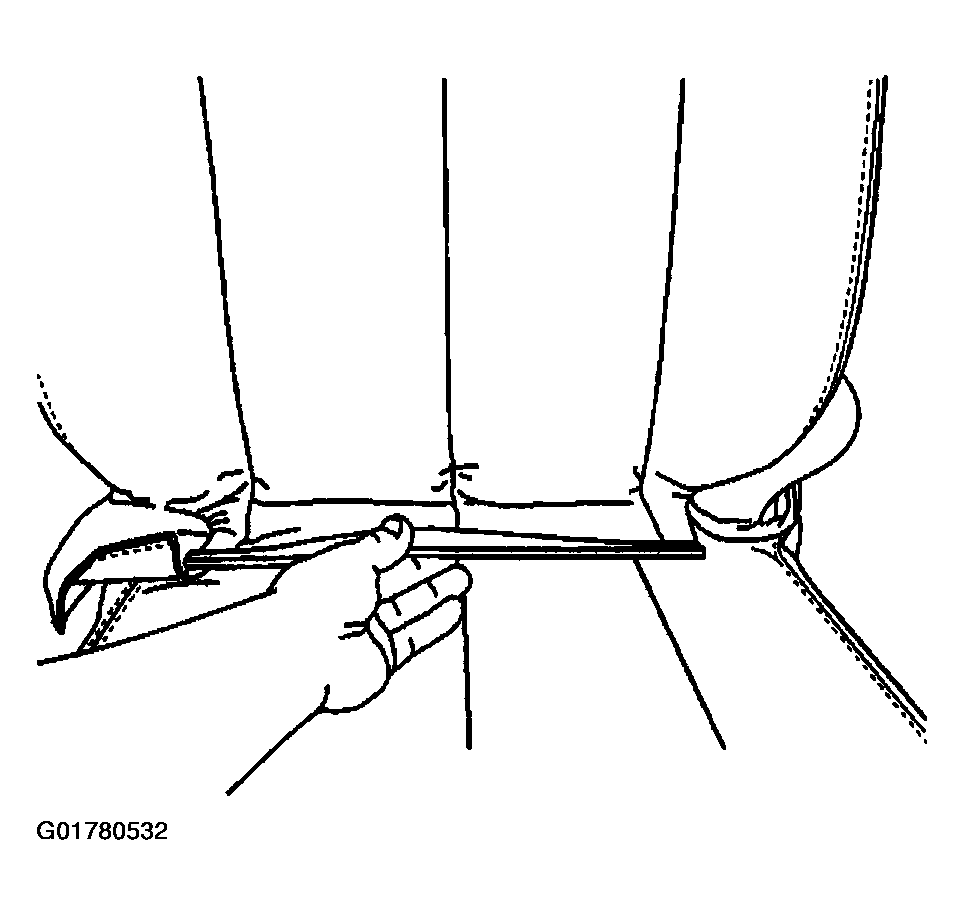

    Fig 2: Repositioning Seat Back Cover
    G01780532Courtesy of GENERAL MOTORS CORP.
  4. Fasten the J-hook retainer at the bottom of the seat back cover.

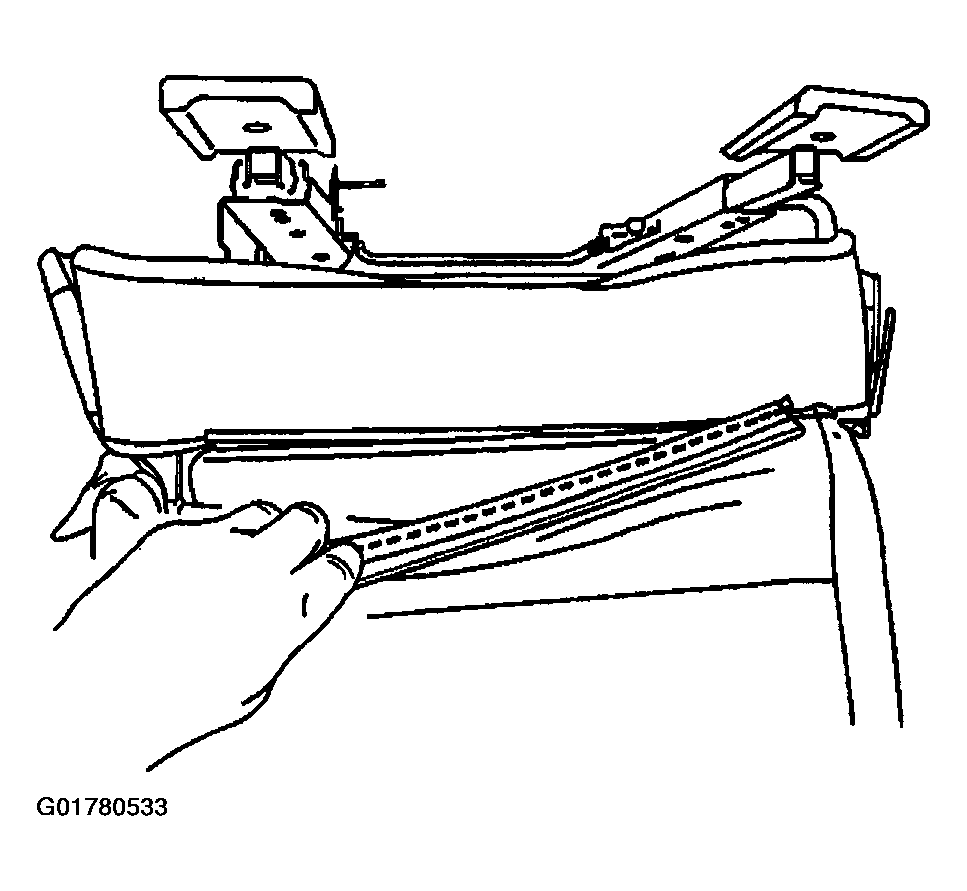

    5. Fig 3: Fastening J-Hook Retainers
    G01780533Courtesy of GENERAL MOTORS CORP.
  5. Install the bucket seat. Refer to Seat Replacement  .
  6. Return the seat back to the original position.
