Sound Insulator (Left Side): Installation

Install the right halve of the sound insulator on the drivers side to the IP carrier, and install the bolts to the sound insulator. See Fig 1 . Tighten the bolts to 18 INCH lbs. (2 N.m). Install the left halve of the sound insulator on the drivers side to the IP carrier and install the push pin.

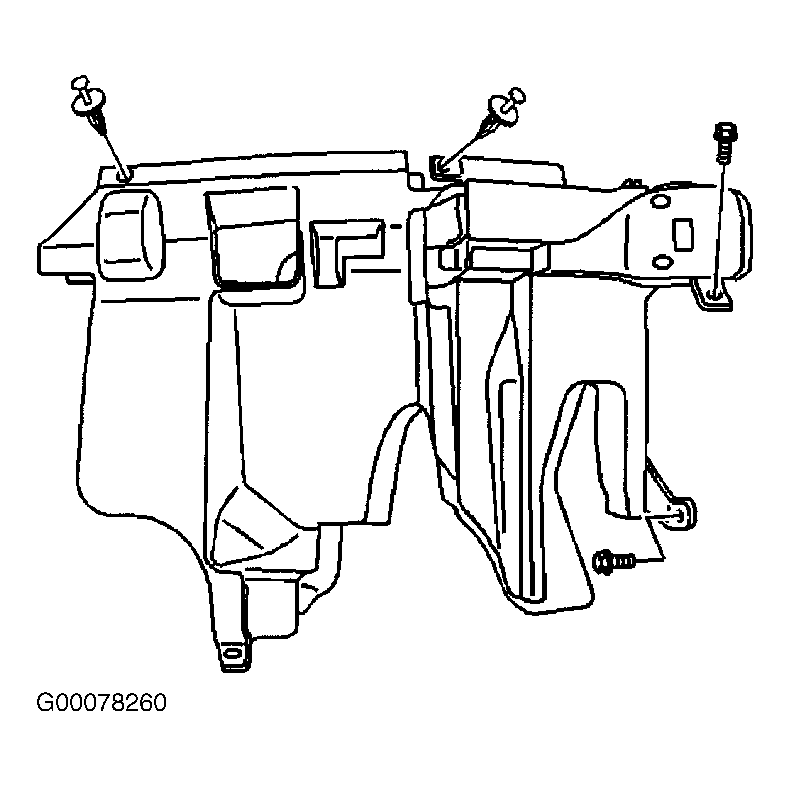

Fig 1: Removing & Installing Left Side Insulator

Courtesy of GENERAL MOTORS CORP.
