Shift Lock Actuator: Installation

Install the upper clip of the shift lock actuator onto the upper pivot point, and the lower clip onto the lower pivot point. See Fig 2 . Install the floor console. Install the electrical connector to the shift lock actuator. See Fig 1 . Connect the negative battery cable.

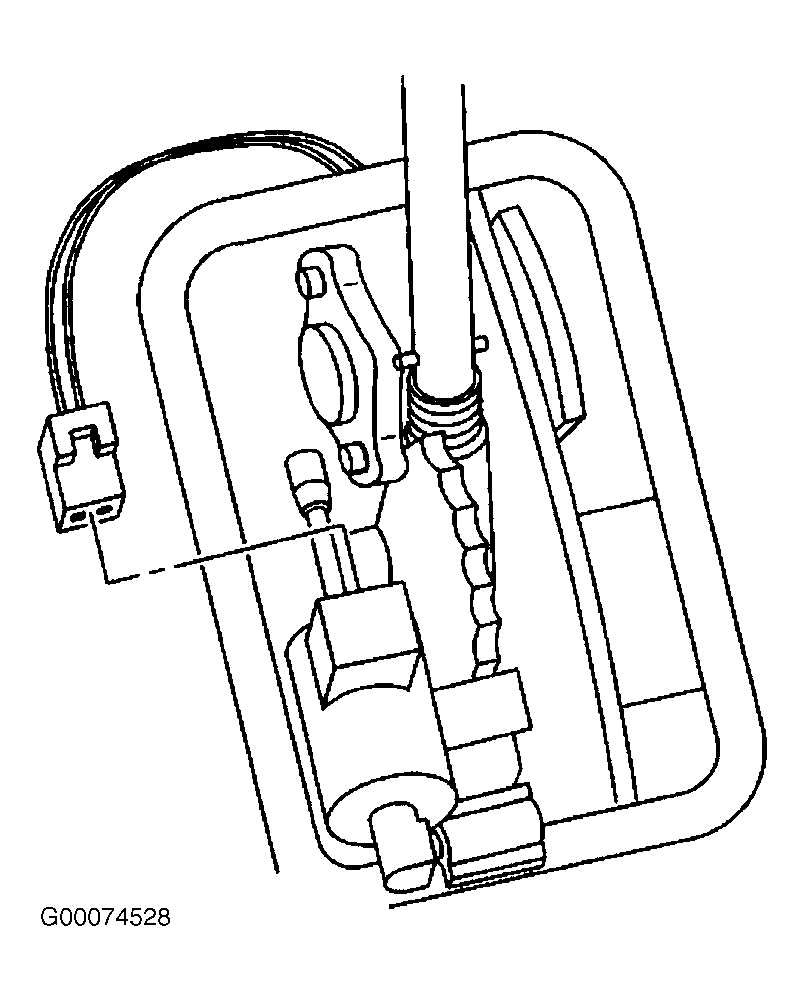

Fig 1: Locating Shift Lock Actuator Connector

Courtesy of GENERAL MOTORS CORP.

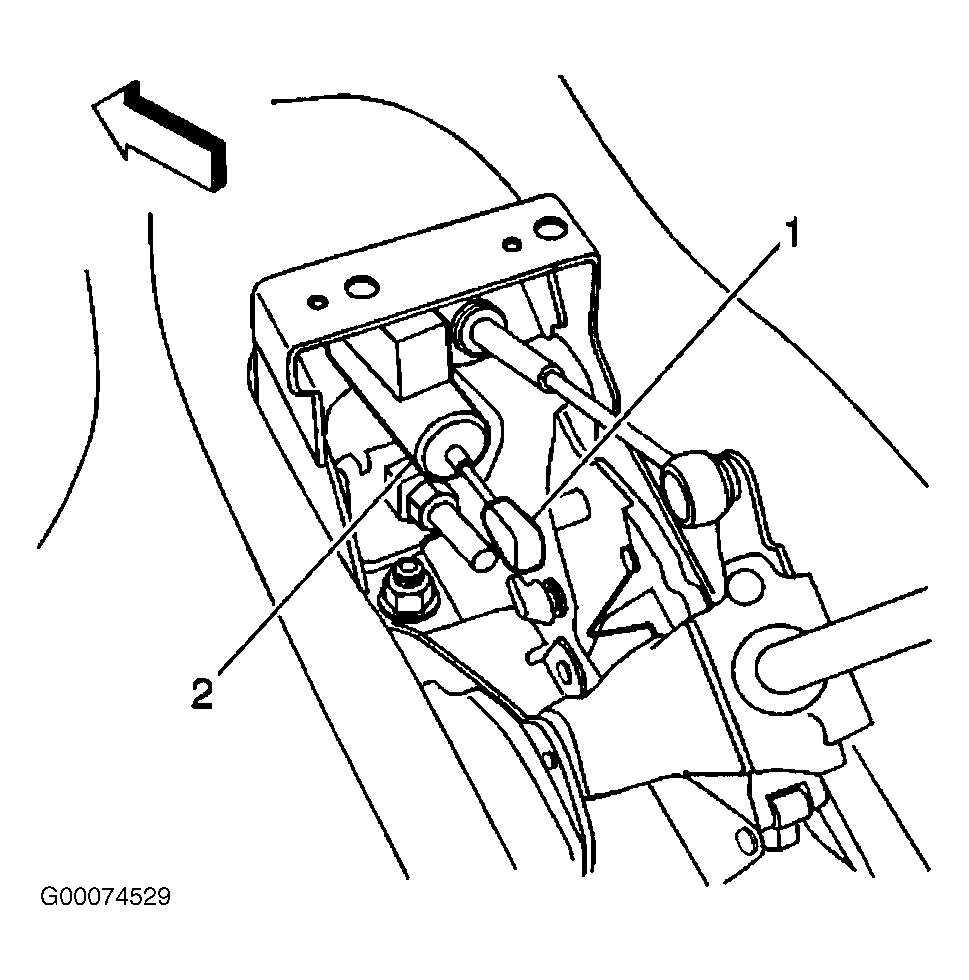

Fig 2: Locating Shift Lock Actuator Pivot Points

Courtesy of GENERAL MOTORS CORP.
