Front Floor Console Trim Plate: Installation

Connect the electrical connectors to the front floor console trim plate. Align the front floor console trim plate retainers to the slots in the front floor console. Install the front floor console trim plate, pressing into place until fully seated. See Fig 2 . Position the knob to the shift lever. Install the knob retainer, pressing into place until fully seated. Place the gearshift lever in the Park position.

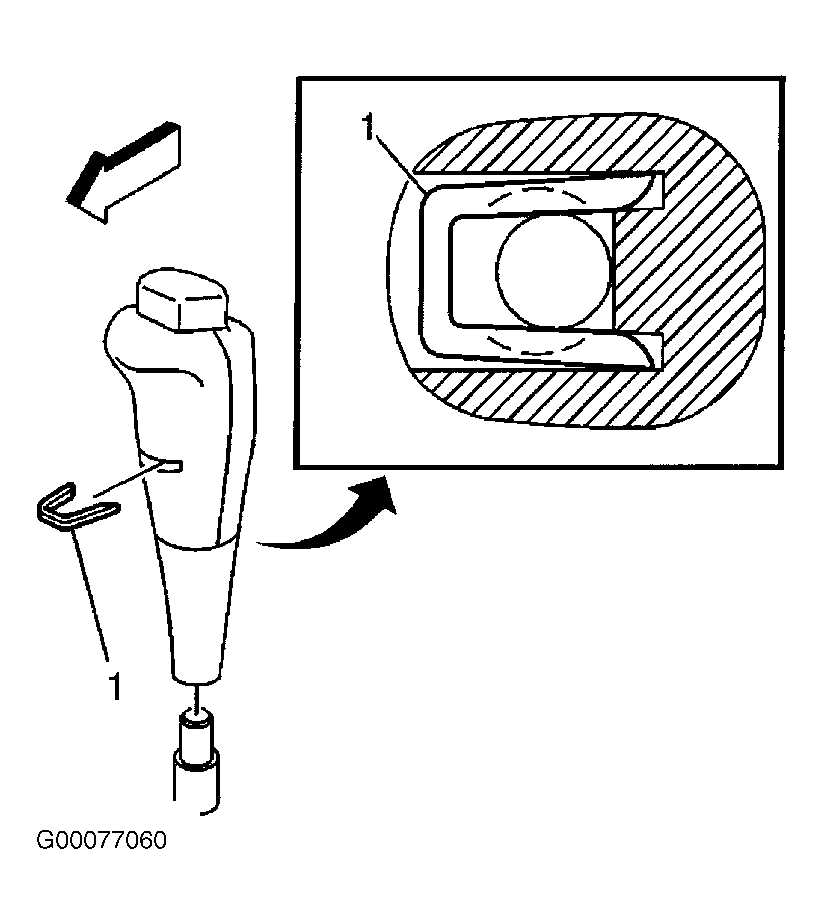

Fig 1: Removing & Installing Gearshift Knob

Courtesy of GENERAL MOTORS CORP.

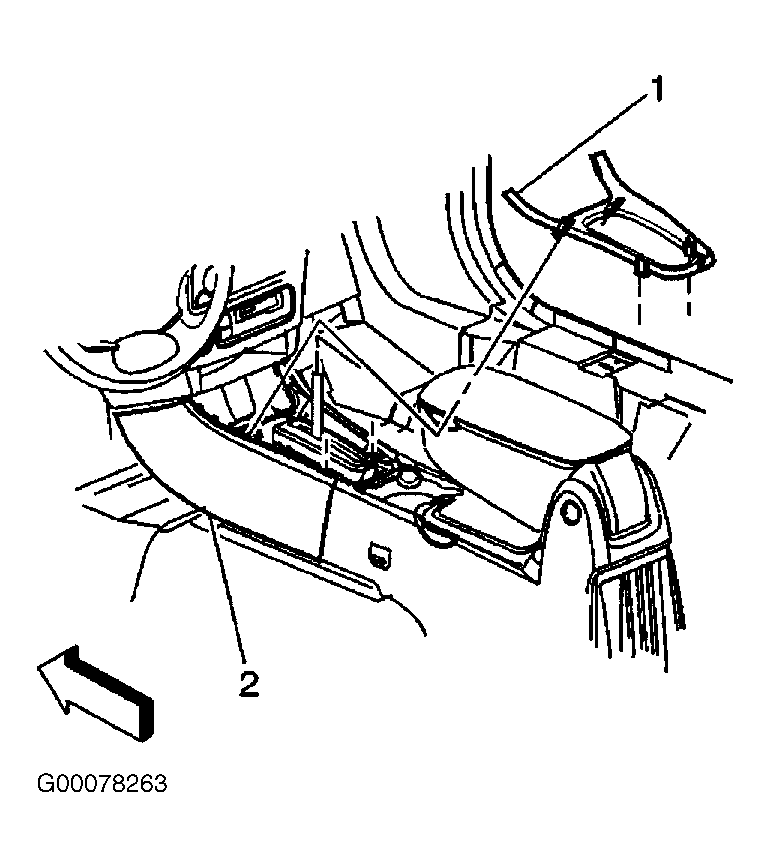

Fig 2: Removing & Installing Console Trim Plate

Courtesy of GENERAL MOTORS CORP.
