Floor Console: Installation

Install the floor console into the vehicle. Install the console screws into the floor console. See Fig 1 . Tighten the screws to 18 INCH lbs. (2 N.m). Install the console trim plate. Install the rear cupholder to the floor console. Install the front seats into the vehicle.

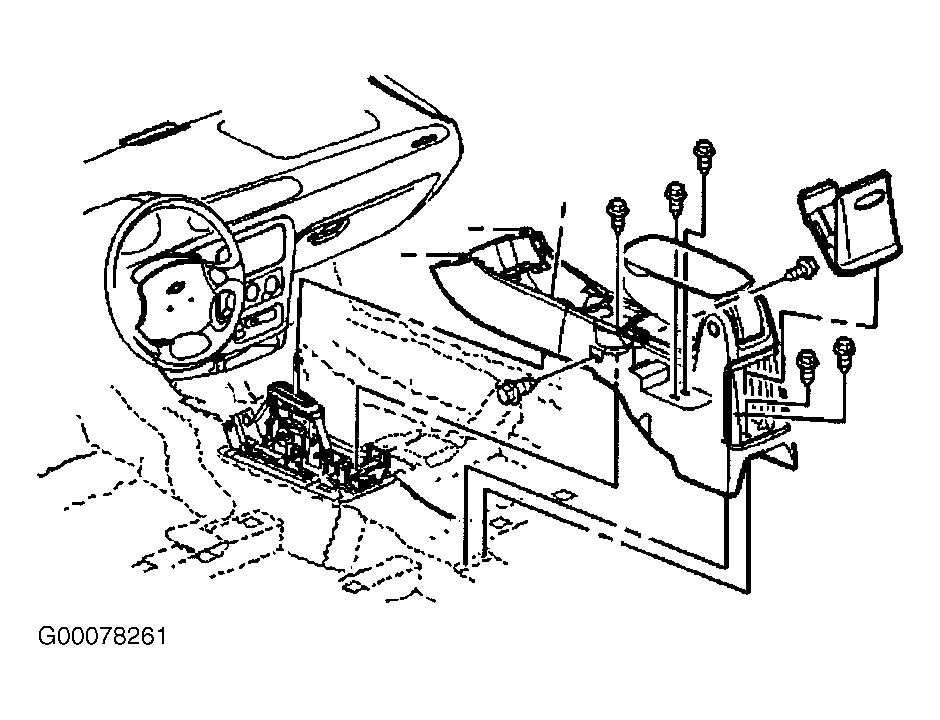

Fig 1: Removing & Installing Floor Console

Courtesy of GENERAL MOTORS CORP.
