Removal Procedure

  1. Lower the front door window to the full down position.
  2. Remove the front door outer belt sealing strip.
  3. Pull enough of the window run channel from the applique to access the front door frame applique screws (2). Remove the front door frame applique screws (2) from the door frame.
  4. Remove the front door frame applique (1) from the door frame.

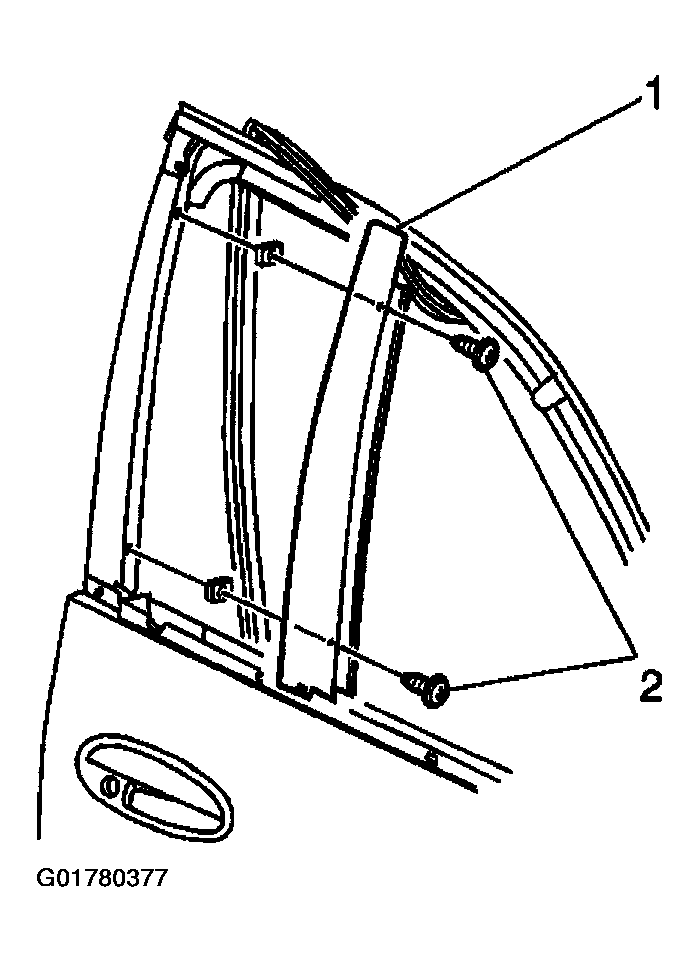

    Fig 1: Removing Front Door Frame Applique
    G01780377Courtesy of GENERAL MOTORS CORP.
