Data Link Communications Connector End Views

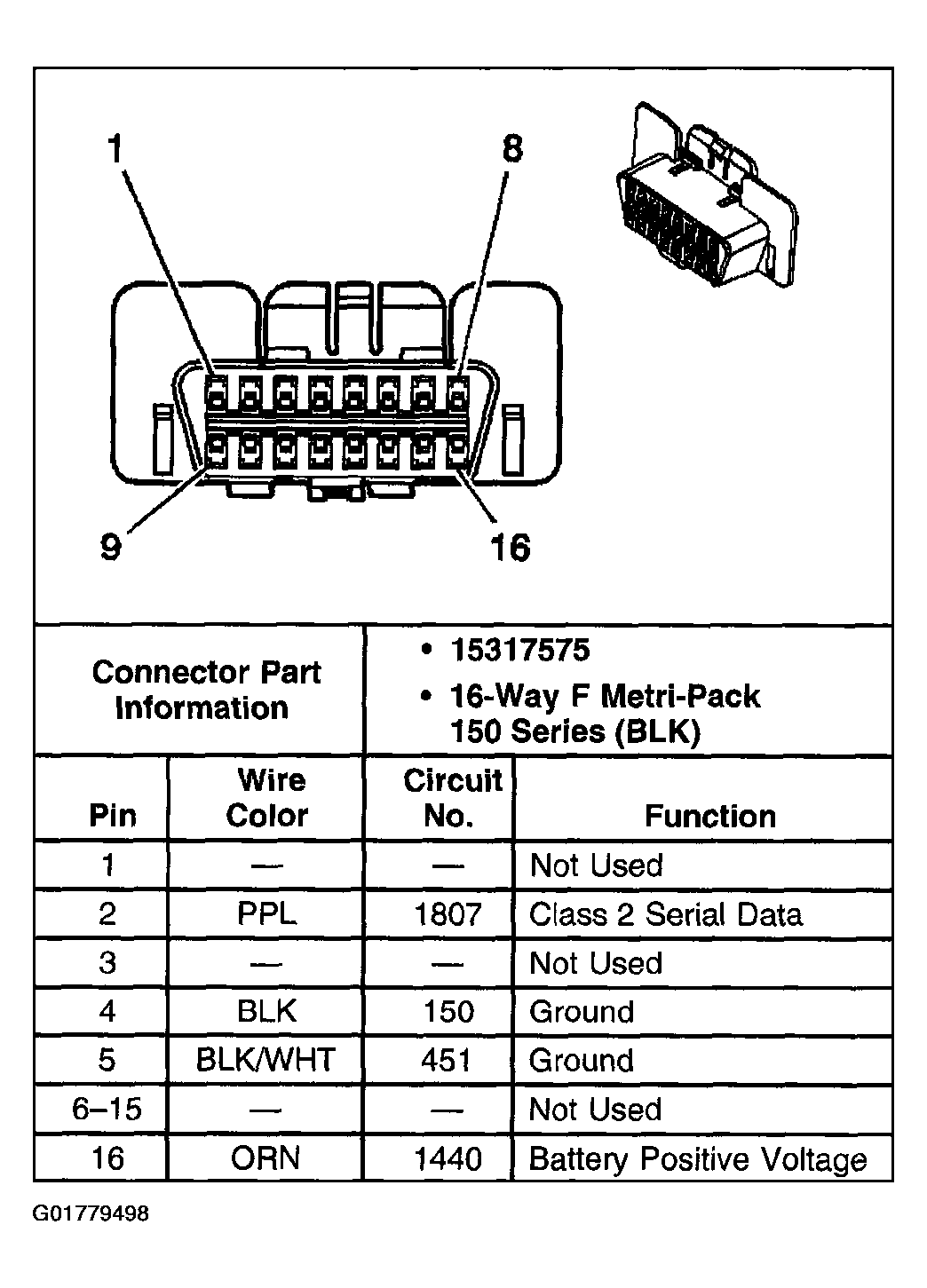

Fig 1: Data Link Connector (DLC)

G01779498

Courtesy of GENERAL MOTORS CORP.
