Removal Procedure

  1. Place the rear door window assembly to the down position.
  2. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Disengage the glass sash regulator (2) from the rear side door window (1).
  5. Remove the door window frame applique. Refer to Door Frame Applique Replacement-Rear .

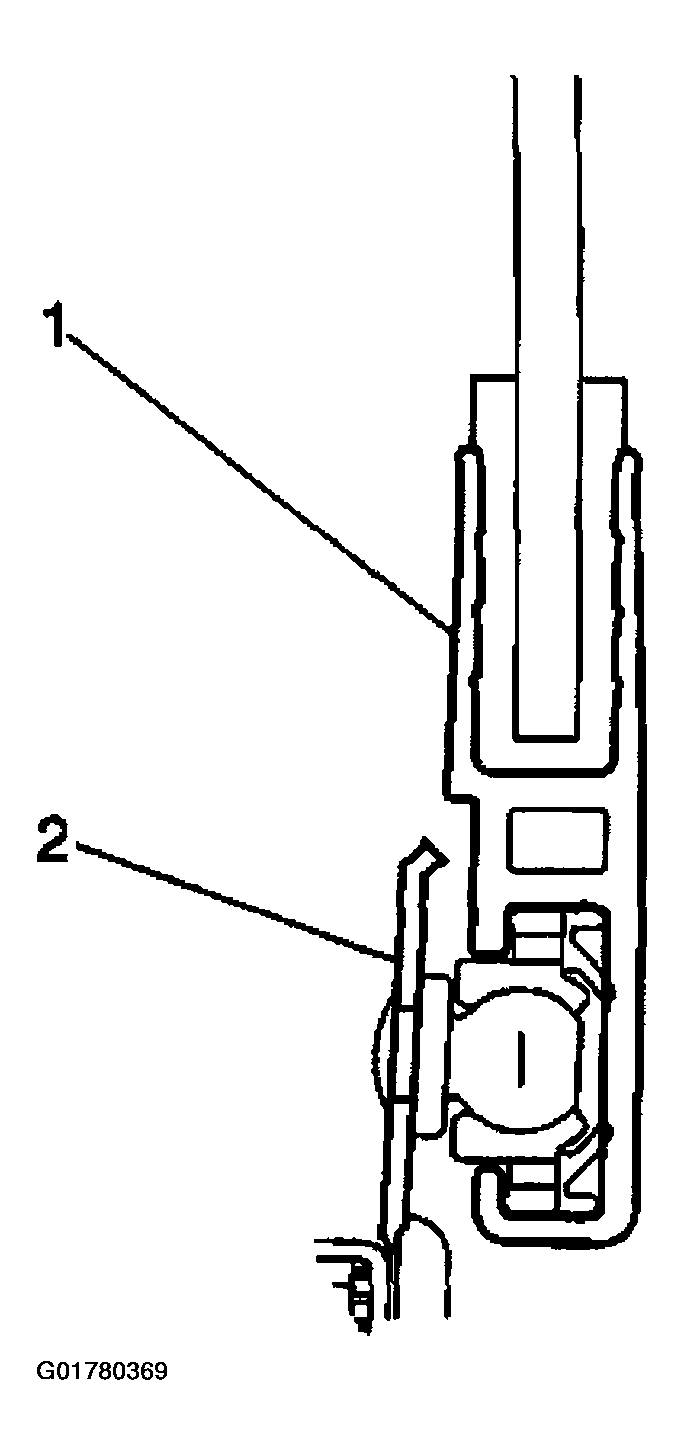

    Fig 1: Disengaging Glass Sash Regulator
    G01780369Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear side door window (1).

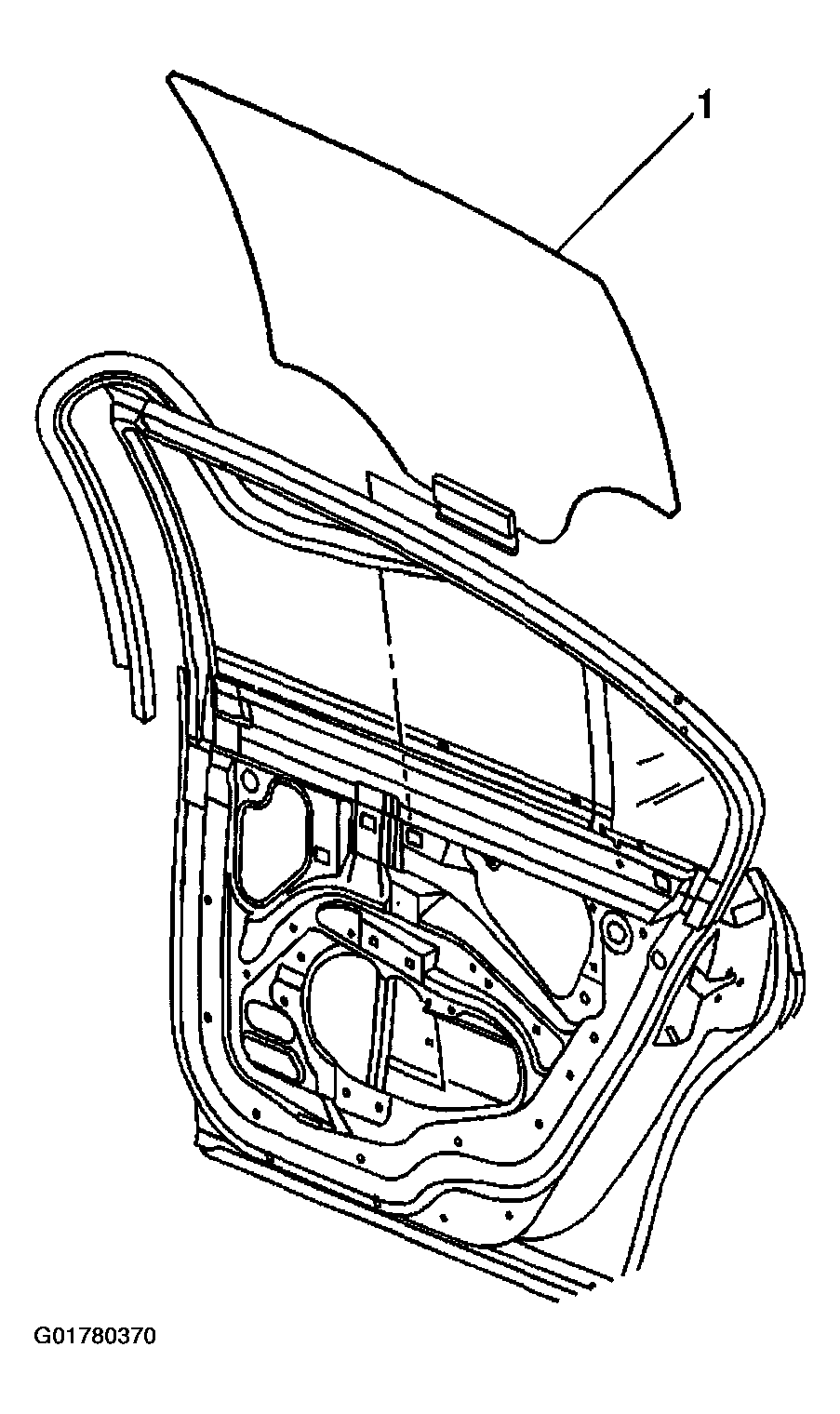

    Fig 2: Removing Rear Side Door Window
    G01780370Courtesy of GENERAL MOTORS CORP.
