Removal Procedure

  1. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  2. Remove the rear window. Refer to Window Replacement-Rear Door .
  3. Disconnect the rear window regulator motor electrical connector.
  4. Remove the rear window regulator bolts (1).

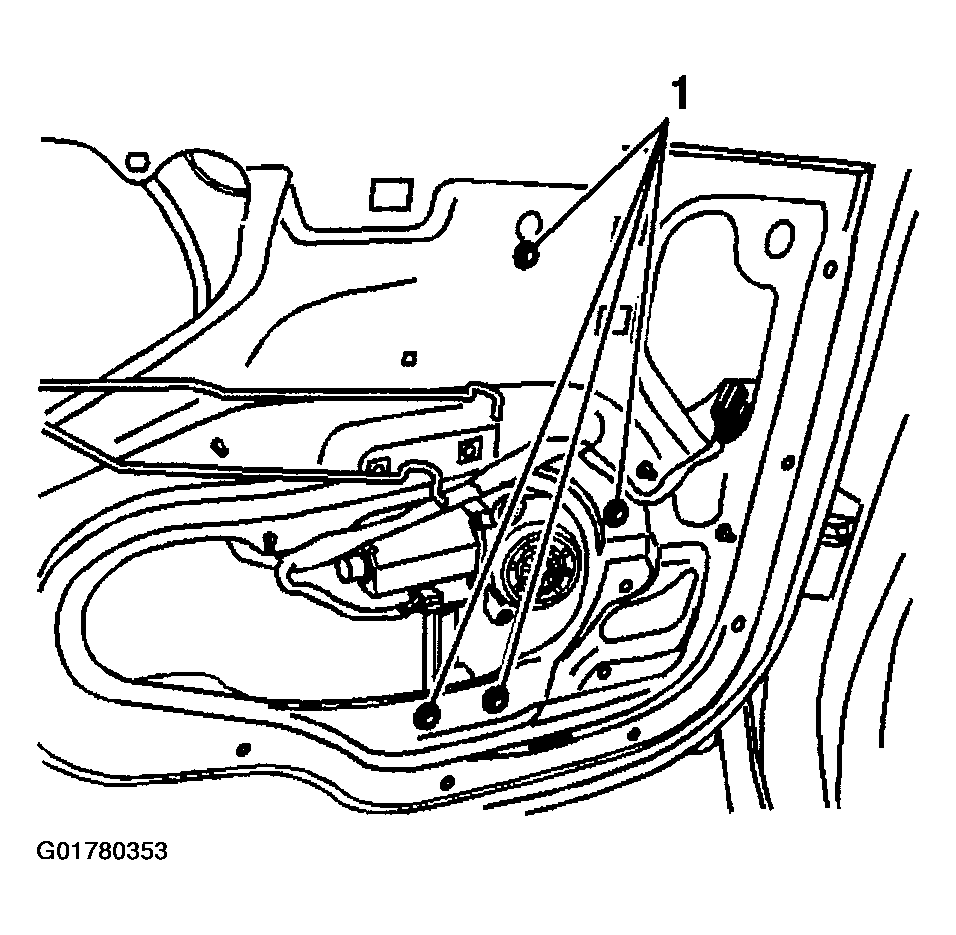

    Fig 1: Removing Rear Window Regulator Bolts
    G01780353Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear window regulator from the door.

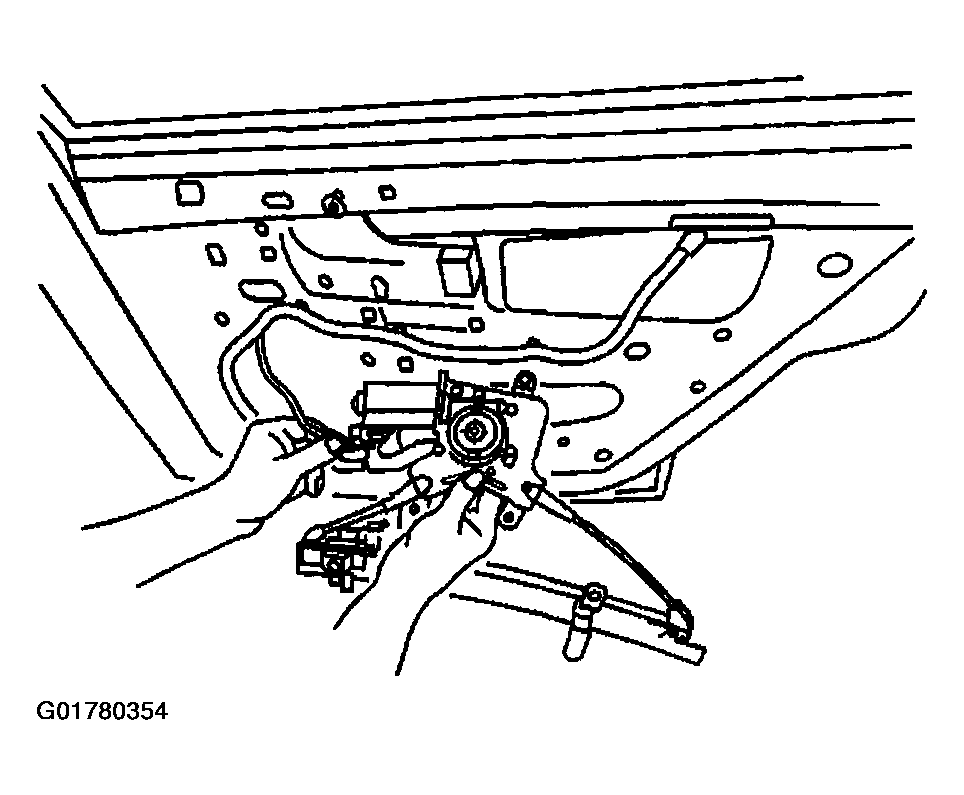

    Fig 2: Removing Rear Window Regulator
    G01780354Courtesy of GENERAL MOTORS CORP.
